Artec Rubicon Dana 44 Front Axle Truss – TJ4401

Artec Industries

Shop Jeep Wrangler TJ Axle Truss on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Artec Industries TJ4401 Dana 44 front axle truss, made of 1/4-inch mild steel
  • Truss only: no bushings, joints or keyed tabs included
  • Spans the long and short side of the front axle tubes
  • Written for the TJ and LJ Wrangler front Dana 44 axle

Description

Overview

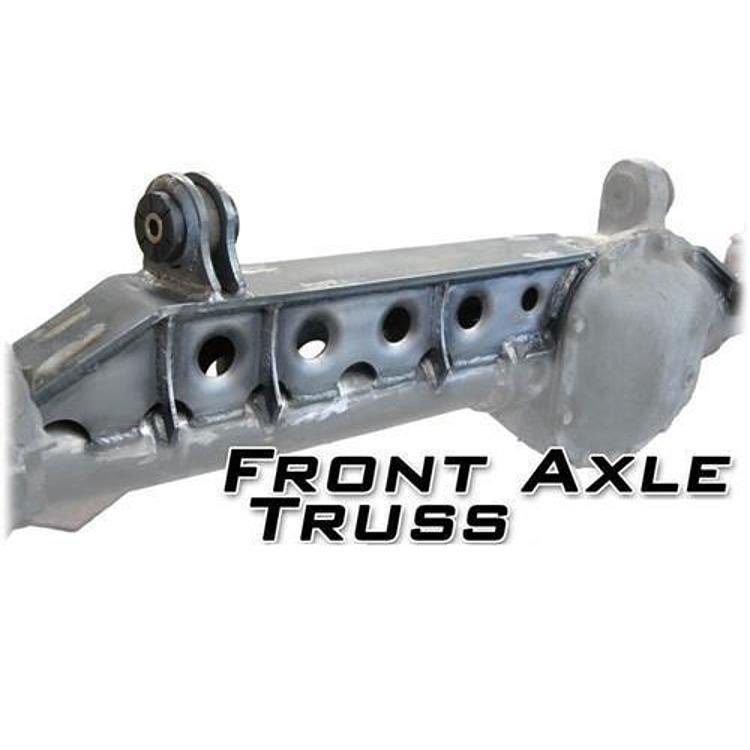

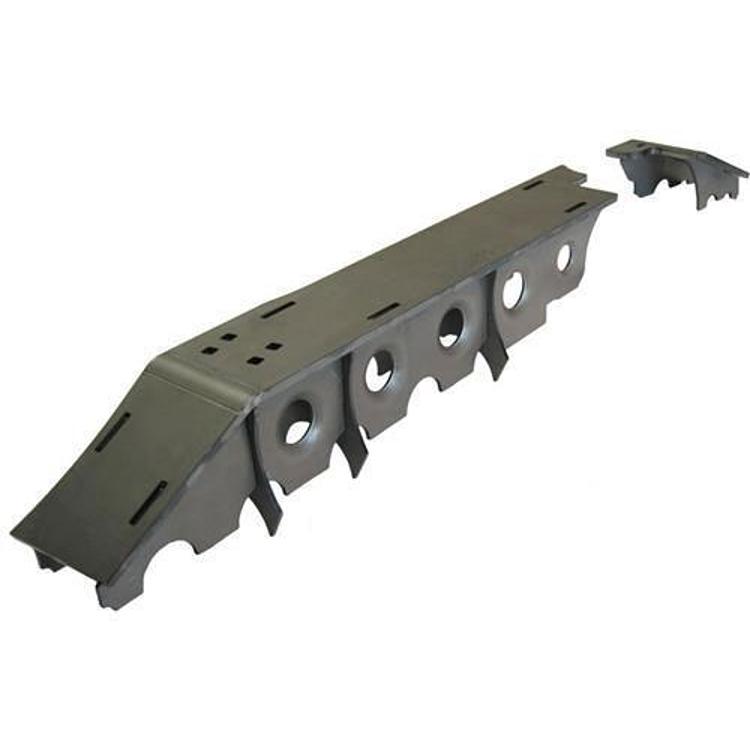

The Artec Industries TJ4401 is a Dana 44 front axle truss for the Jeep Wrangler TJ (1997–2006) and LJ (2004–2006). It is a lightweight truss system that reinforces the front Dana 44 axle, with a 1/4-inch thick truss top and 10-gauge gusseting.

The truss strengthens both axle tubes, not just the long tube, and is precision cut and formed for a straightforward fit. It spans the long and short side of the axle. It is a truss only, without bushings, joints or keyed tabs, so it suits builds that do not connect the passenger side upper control arm or that reuse the factory bracket.

Key features

  • 1/4-inch mild steel truss top.
  • 10-gauge gusseting for added strength.
  • Strengthens both axle tubes, not only the long tube.
  • Spans the length of the long and short side.
  • Precision cut and formed components.
  • Bare steel finish.

Welding and fit checks

Fitting a front axle truss is mostly a matter of location and weld quality. Before final welding, set the truss in position and check that it clears the differential cover, brake lines and steering components. Tack it in several places first, then confirm the fit again before committing to full welds.

Work in short passes to limit heat in the axle tube, and let the metal cool between passes. Clean the mating surfaces to bare steel so the weld penetrates properly. A truss adds bracing to the axle, but a weak weld leaves that bracing unreliable, so a qualified welder should finish the joints.

  • Test-fit the truss before final welding
  • Clean mating surfaces to bare steel
  • Weld in short passes and let the metal cool

Specifications

Brand Artec Industries
UPC 816791024312
Axle type Dana 44
Axle location Front
Steering ram mount Without steering ram mount
Material 1/4-inch mild steel, 10-gauge gusseting
Finish Bare steel
Fitment Direct fit

Vehicle fitment

This truss is written for the front Dana 44 axle on the 1997–2006 Jeep Wrangler (TJ) and the 2004–2006 Jeep Wrangler (LJ). It is a direct fit for those models.

It does not cover JK, YJ or JL Wranglers. Make sure your vehicle’s year, model and trim match before buying.

Installation notes

Fill the keyhole slots on top of the truss where keyed tabs would go with weld. Artec says to use this truss only if you are not connecting the passenger side upper control arm or are reusing the factory bracket. Welding and fabrication skills are required, so have a qualified welder fit the truss.

What’s included

The truss only, made of 1/4-inch mild steel.

Not included: bushings, joints and keyed tabs.

SKU: A/ITJ4401 Category:

Specification

Shipping weight 10.50 lbs
Package dimensions 24.00 × 4.00 × 4.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ) likely fits2004–2006All
Jeep Wrangler (TJ) likely fits1997–2006All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Artec TJ4401 fit a Jeep Wrangler TJ or LJ?

It is written for the front Dana 44 TJ/LJ axle, so it fits the 1997–2006 Jeep Wrangler TJ and 2004–2006 Jeep Wrangler LJ. Confirm your axle type and year before ordering.

Are bushings and joints included with the TJ4401?

No. The truss is supplied alone, with no bushings, joints or keyed tabs. The keyhole slots on top of the truss must be filled with weld where keyed tabs would go.

What part number is this truss?

The model code is TJ4401 and the UPC is 816791024312. Match the TJ4401 code and UPC against your order before buying.

How can I tell the front axle needs bracing?

Signs include visible flex in the axle tubes under load, cracks or fatigue around the housing welds, and bent or sagging tubes after rough use. A truss adds support but does not repair damage, so inspect the axle first.

Do other front end parts need changes when a truss is added?

Often they do. Upper control arm brackets, steering components and the factory bracket can be affected. Check how the truss meets those parts before cutting or welding anything.
