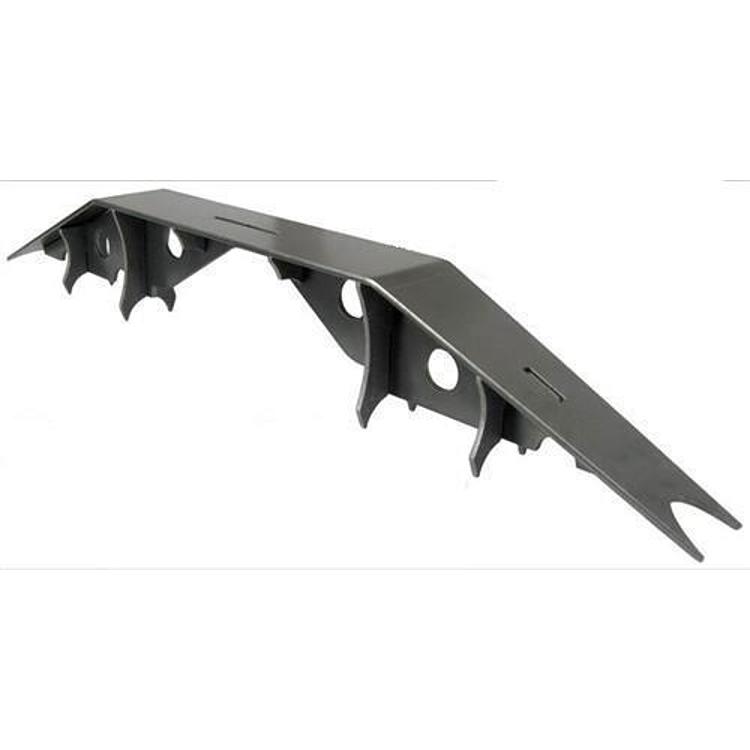

Artec Dana 44 Rear Axle Truss – TR4403

Artec Industries

Shop Jeep Wrangler TJ Axle Truss on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Artec Industries TR4403 Dana 44 rear axle truss, designed for the TJ Wrangler Rubicon
  • Spans about 43.5 inches across the axle center
  • Flat, low-profile surface for upper control arms in a 4-link setup

Description

Overview

The Artec Industries TR4403 is a Dana 44 rear axle truss designed for the TJ Wrangler Rubicon, which matches the 1997–2006 Jeep Wrangler TJ. It reinforces the entire rear axle and provides a flat, low-profile surface for mounting upper control arms in a 4-link setup.

The 1/4-inch thick truss top is designed to strengthen the axle. The base truss spans about 43.5 inches across the center of the axle, and the TJ Rubicon rear Dana 44 has a centered differential housing of about 15 inches with a 2.625-inch axle tube diameter. The truss can be modified to fit larger tube diameters.

Key features

  • Strengthens the entire axle.
  • Flat surface for mounting upper control arms in a 4-link setup.
  • Low-profile link mounting surface.
  • Base truss spans about 43.5 inches across the axle center.
  • Can be modified to fit larger tube diameters.
  • Built for the TJ Rubicon rear Dana 44 axle.

Before you weld

A rear truss ties the axle housing and the upper control arm mounts into one structure, which helps the axle hold its position when the suspension works hard on rough trails. Before cutting or welding, confirm that the axle is free of stock brackets and that the upper link mounts line up with the frame brackets through the full range of travel. Small misalignments show up as bind, so test fit with the axle in place and the vehicle at ride height.

Because a truss changes how the axle is supported, it often works best alongside a matching lower link setup and fresh axle bushings. Inspect the existing axle housing for cracks at weld points and check the pinion angle after installing any new links. Plan the 4-link geometry before starting so the welds are placed correctly the first time.

Specifications

Brand Artec Industries
Part number TR4403
UPC 816791024534
Axle type Dana 44
Axle location Rear
Steering ram mount Without steering ram mount
Truss top 1/4 inch thick
Span About 43.5 inches across the axle center
Differential housing reference About 15 inches on the TJ Rubicon rear Dana 44
Axle tube diameter reference 2.625 inches on the TJ Rubicon rear Dana 44

Vehicle fitment

It is designed for the TJ Wrangler Rubicon rear Dana 44 axle, which places it in the 1997–2006 Jeep Wrangler (TJ). Trimming is needed on other axles, so check the trim and year before ordering.

Trimming is required for the JK Rubicon rear axle and other centered rear Dana 44 axles. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The axle should have no stock bracketry for this truss to work. Measure the axle before cutting or welding, because the truss is sized to the TJ Rubicon housing and tube diameters listed above.

What’s included

The rear axle truss only, with the 1/4-inch thick truss top.

SKU: A/ITR4403 Category:

Specification

Shipping weight 20.10 lbs
Package dimensions 48.00 × 7.00 × 7.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ) likely fits1997–2006All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Artec TR4403 fit a 1997 to 2006 Jeep Wrangler TJ?

It is designed for the TJ Wrangler Rubicon rear Dana 44 axle, so it matches the 1997–2006 Wrangler TJ. Confirm your axle measurements and trim before ordering.

Will it fit a JK Rubicon rear axle?

Not without modification. Artec says trimming is required for fitment on the JK Rubicon rear axle and other centered rear Dana 44 axles, and the axle should have no stock bracketry for the truss to work.

What are the truss dimensions?

The base truss spans about 43.5 inches across the axle center. The TJ Rubicon rear Dana 44 has a centered differential housing of about 15 inches and a 2.625-inch axle tube diameter.

How can I tell if my axle needs a truss?

Look for flex or movement at the axle housing under hard articulation, cracked welds at the tube, or wheel hop that changes with load. A truss helps control those issues, but it does not replace a healthy axle, so inspect the housing and bushings first.
