Alloy USA Dana 60 Front Outer Axle Shaft – 10652

Alloy USA

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana 60 front outer axle shaft, 35 spline, driver and passenger side
  • Fits 1999 and newer Ford Dana 60 front axles
  • Requires aftermarket 35 spline locking hubs or drive flanges

Description

Overview

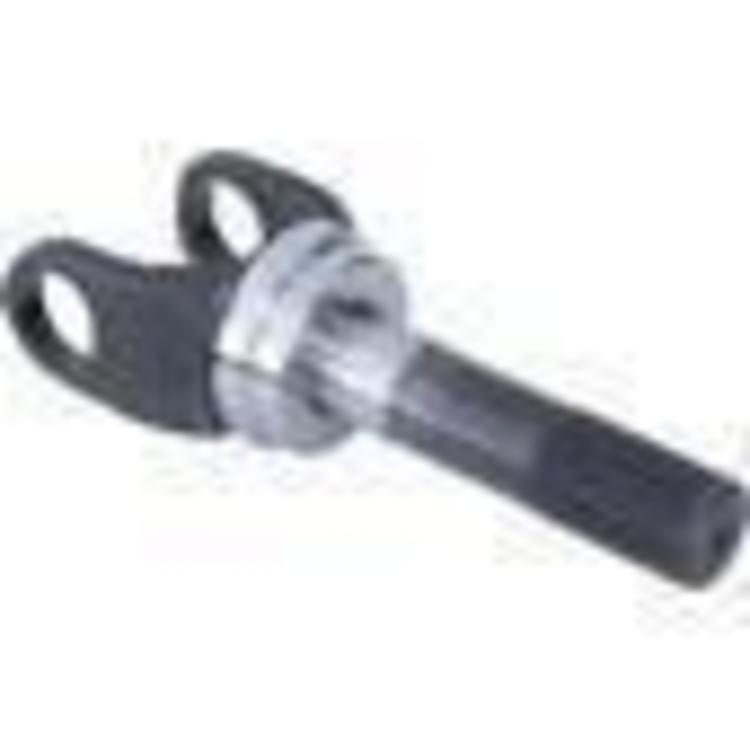

The Alloy USA 10652 is a chromoly Dana 60 front outer axle shaft, also called an outer stub axle, with 35 splines for the driver and passenger side. It fits 1999 and newer Ford Dana 60 front axles and the 2000-2004 Ford F-250 Super Duty.

Alloy USA says its axle shafts are made from 1541H or 4140 steel depending on the application. The company adds that each shaft is heat treated and induction hardened. With 35 splines, the 10652 only engages gears cut for 35 splines, so check the differential before choosing it.

Key features

  • Chromoly outer stub axle shaft for the Dana 60 front axle
  • 35 spline
  • Fits both the driver and passenger side
  • Fits 1999 and newer Ford Dana 60 front axles
  • Alloy USA says its shafts are heat treated and induction hardened
  • Requires aftermarket 35 spline locking hubs or drive flanges
  • Axle shaft location: Outer stub, driver and passenger side
  • Manufacturer part number: ALY10652
  • Application stated: 1999-UP Ford Dana 60 front

Front hub setup

The outer stub on a Dana 60 carries drive torque from the hub to the wheel, and heavier trucks put more load through it. Because the shaft has 35 splines, the hub or drive flange on the wheel end must also have 35 splines. Mixing spline counts will not engage correctly, so the hub setup is the first thing to confirm.

Before buying, identify the axle and hub style on your truck and compare the spline count of the old shaft with the new one. Running a shaft that does not match the locking hubs can cause vibration, clicking, or stripped splines. Inspect the hub seals and bearings when the shaft comes out, since the job gives easy access to them.

  • Confirm the hub or flange has 35 splines
  • Check that the differential gears match the shaft
  • Inspect the joint at the inner end
  • Replace worn seals when the shaft is removed

Specifications

The 10652 is a chromoly replacement outer stub axle shaft for the Dana 60 front axle, with 35 splines. Every figure in the table below is the manufacturer value for the 10652.

Brand Alloy USA
Part number 10652
UPC 804314181239
Part type Chromoly replacement outer stub axle shaft
Axle Dana 60 front
Axle shaft location Outer stub, driver and passenger side
Spline 35 spline
Manufacturer part number ALY10652
Application stated 1999-UP Ford Dana 60 front
Required parts Aftermarket 35 spline locking hubs or drive flanges

Vehicle fitment

The manufacturer fitment list for the 10652 names: 2000–2004 Ford F-250 Super Duty.

It is for 1999 and newer Ford Dana 60 front axles.

Match the 10652 against your old shaft for spline count, length and driver or passenger side before installing it.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Aftermarket 35 spline locking hubs or drive flanges are required, so the front hub setup must support a 35 spline outer shaft.

What’s included

One axle shaft.

Not included: 35 spline locking hubs or drive flanges (required, sold separately).

SKU: ALY10652 Category:

Specification

Shipping weight 7.00 lbs
Package dimensions 11.00 × 4.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2000–2004Harley-Davidson Edition, King Ranch, Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which trucks does the Alloy USA 10652 fit?

The shaft fits the 2000-2004 Ford F-250 Super Duty and 1999 and newer Ford Dana 60 front axles. Confirm your year, model and trim before ordering.

What are the specs of the Alloy USA 10652?

The 10652 is a chromoly Dana 60 front outer stub axle shaft with 35 splines. It fits both the driver and passenger side.

Do I need locking hubs with the 10652?

Yes. The shaft requires aftermarket 35 spline locking hubs or drive flanges, which are not included. Check that your front hub setup supports a 35 spline outer shaft before installing it.

Do I need to replace the locking hubs when I replace the shaft?

Not always, but the hub or drive flange must have 35 splines to match this shaft. Check the existing hubs first. If they have a different spline count, they need to be replaced with aftermarket 35 spline locking hubs or drive flanges.
