Alloy USA Dana 35 Axle Shaft – 74356-1X

Alloy USA

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1992–2005 Jeep XJ, ZJ, WJ, YJ, TJ and LJ
  • Dana 35 C-clip rear shaft, 27 splines, for ABS
  • 4340 chromoly with black anodized finish

Description

Overview

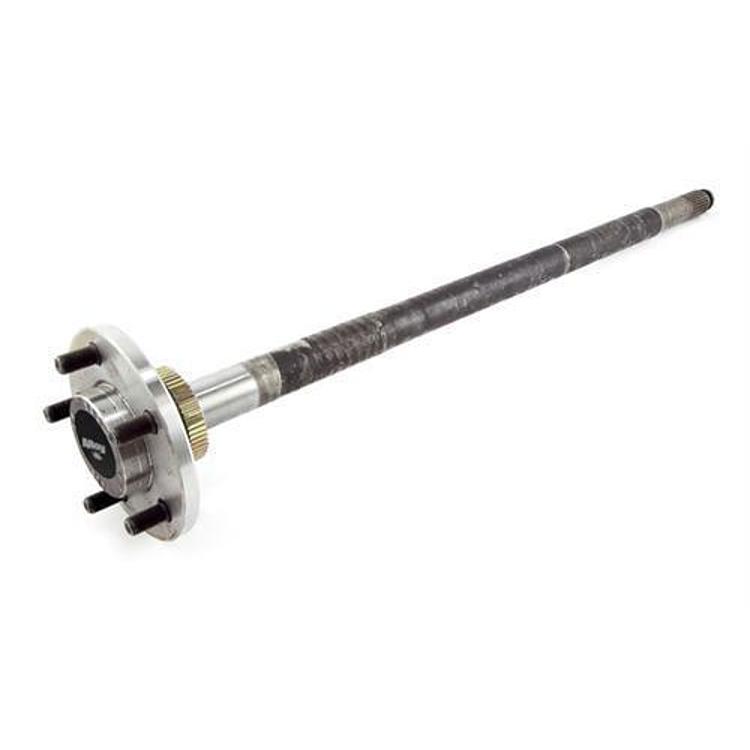

The Alloy USA 74356-1X is a 27-spline Dana 35 C-clip rear right axle shaft. It fits 1992–2005 Jeep Cherokee XJ, Grand Cherokee ZJ and WJ, and Wrangler YJ, TJ and LJ models. It is built from 4340 chromoly that is heat-treated, tempered and induction hardened, and it is designed to be up to 40% stronger than stock 1040 axles. The splines are formed rather than cut, and each shaft is CNC machined, magnaflux inspected for cracks and finished in black anodize.

The shaft uses a C-clip design for a Dana 35 rear axle and is marked for use with ABS. It is the rear right position, and the shaft location is driver or passenger. Each shaft is covered by a ten-year warranty.

Key features

  • Dana 35 C-clip rear axle shaft with 27 splines
  • 4340 chromoly, heat-treated, tempered and induction hardened
  • Designed to be up to 40% stronger than stock 1040 axles
  • CNC machined and magnaflux inspected for cracks
  • Black anodized finish
  • Marked for use with ABS
  • Covered by Alloy USA’s ten-year warranty, per the maker

Before fitting a C-clip shaft

C-clip axles hold each shaft with a clip inside the differential, so the shaft’s end and the clip groove have to match. Before fitting, inspect the old clip, the groove and the differential side gear splines for wear. A worn groove or a missing clip can let the shaft walk out under load, which is far more serious on a trail than in a driveway. Take your time with the clip, since it is easy to damage.

ABS-equipped axles use a tone ring that the wheel sensor reads, so check that the axle carries the matching ring before fitting a shaft marked for ABS. Replacing the axle seal and bearing at the same time keeps the job to one teardown. Clean the bearing bore and check the axle tube for cracks while the housing is open.

Specifications

Brand Alloy USA
Part number 74356-1X
UPC 804314212469
Axle manufacturer Dana
Shaft location Driver Or Passenger
Axle position Rear
Axle type Dana 35
Position Rear Right
Spline count 27 Splines
Material 4340 chromoly
Axle design C-clip
Finish Black anodized
ABS For use with ABS

Vehicle fitment

It fits three Jeep families, by model and trim:

  • 1992–2001 Jeep Cherokee (XJ) (Base, Briarwood, Classic, Country, Laredo, Limited, SE, Sport)
  • 1999–2005 Jeep Grand Cherokee (WJ) (Laredo, Limited, Overland, Special Edition, Sport)
  • 1993–1998 Jeep Grand Cherokee (ZJ) (5.9 Limited, Base, Laredo, Limited, Orvis, SE, TSi)
  • 2004–2005 Jeep Wrangler (LJ) (Unlimited)
  • 1997–2005 Jeep Wrangler (TJ) (SE, Sahara, Sport, X)
  • 1993–1995 Jeep Wrangler (YJ) (Base, Renegade, Rio Grande, SE, Sahara)

Cherokee XJ, Grand Cherokee ZJ and WJ, and Wrangler YJ, TJ and LJ are the years shown above. JK and JL Wranglers, Comanches and Jeeps with a different rear axle are outside this fit. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

This is a C-clip shaft, so it belongs in a Dana 35 axle that retains its shafts with C-clips, and the ABS note means your axle should carry the matching tone ring.

SKU: ALY74356-1X Category:

Specification

Shipping weight 19.00 lbs
Package dimensions 32.00 × 8.00 × 8.00 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1992–2001Base, Briarwood, Classic, Country, Laredo, Limited, SE, Sport
Jeep Grand Cherokee (WJ)1999–2005Laredo, Limited, Overland, Special Edition, Sport
Jeep Grand Cherokee (ZJ)1993–19985.9 Limited, Base, Laredo, Limited, Orvis, SE, TSi
Jeep Wrangler (LJ)2004–2005Unlimited
Jeep Wrangler (TJ)1997–2005SE, Sahara, Sport, X
Jeep Wrangler (YJ)1993–1995Base, Renegade, Rio Grande, SE, Sahara

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which Jeeps use the Alloy USA 74356-1X?

The 74356-1X fits the 1992–2001 Cherokee XJ, the 1993–1998 Grand Cherokee ZJ, the 1999–2005 Grand Cherokee WJ, the 1993–1995 Wrangler YJ, the 1997–2005 Wrangler TJ and the 2004–2005 Wrangler LJ. Confirm your year, model and trim before ordering.

How many splines does the 74356-1X have?

27 splines, on a Dana 35 C-clip axle. Count the splines on your old shaft before choosing a replacement, since a different spline count will not engage your differential.

Is the 74356-1X compatible with ABS?

Yes. It is marked for use with ABS. It is a rear right position part, and its shaft location is driver or passenger, so confirm the side before ordering.

What makes the 74356-1X different from a stock shaft?

It is made from heat-treated 4340 chromoly and is designed for up to 40% more strength than stock 1040 axles. It also has formed splines, CNC machining, magnaflux inspection and a black anodized finish.

Can I use a C-clip shaft in a full-float axle?

No, a C-clip shaft is designed for a C-clip retained axle, not a full-float design. Check how your axle retains its shafts before ordering, and match the design to your housing.
