Alloy USA Dana 35 Chromoly Rear Axle Kit – 12200

Alloy USA

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana 35 chromoly rear axle kit, 27 spline, C-clip, without ABS
  • For non-Rubicon axles; fits 1990-2001 Cherokee (XJ), 1997-2006 Wrangler (TJ), 1990-1995 Wrangler (YJ)
  • Includes both shafts, bearing and seal kits and wheel studs; 10 year warranty

Description

Overview

The Alloy USA 12200 is a Dana 35 chromoly rear axle kit with 27 splines, for C-clip axles without ABS on non-Rubicon Jeeps. It fits 1990-2001 Cherokee (XJ), 1997-2006 Wrangler (TJ) and 1990-1995 Wrangler (YJ) models.

The shafts are made from high-strength 4140 chromoly, heat treated twice and induction hardened. Cold spline rolling forms the splines, and the shafts are designed to be up to 35% stronger than stock 1040 axles.

Key features

  • Rear axle kit for the Dana 35 C-clip axle
  • 27 spline, for use with a 27 spline carrier
  • 4140 chromoly, heat treated twice and induction hardened
  • Cold spline rolling
  • Includes wheel bearing and seal kits and wheel studs
  • Covered by a 10 year warranty.
  • For non Rubicon, C-clip axles without ABS

Before you install a chromoly axle

Axle shafts carry torque from the differential to the wheels, so their condition affects traction and steering feel. On a Dana 35 rear, the shaft, wheel bearing and seal work together as one assembly. When a shaft comes out, the bearing and seal are usually replaced at the same time, because worn seals often leak grease toward the brakes. Chromoly shafts are a common choice for trail use, where the axle absorbs repeated loads from articulation and rough ground.

Plan the job around the carrier first. The spline count on the new shafts must match the carrier, and the axle needs to be a C-clip unit without ABS. Heavier tires, lockers and larger gearing put more load on the shafts, so a stronger shaft suits those builds. Keep the brake hardware and wheel studs in good shape, since both are handled during the same work.

  • Inspect the old shaft for twisted or cracked splines
  • Replace bearings and seals together with the shafts
  • Check wheel stud threads before installing the wheels
  • Clean the axle tube and inspect the flange before assembly

Specifications

The 12200 is a rear axle shaft kit for the Dana 35 rear, C-clip axle, with 27 splines (for a 27 splines carrier). Every figure in the table below is the manufacturer value for the 12200.

Brand Alloy USA
Part number 12200
UPC 804314176754
Part type Rear axle shaft kit
Axle Dana 35 rear, C-clip
Spline 27 spline (for a 27 spline carrier)
Material 4140 chromoly
Includes differential None
Axle compatibility Non Rubicon axles, C-clip axles, without ABS
Warranty 10 year warranty
Manufacturer part number ALY12200

Vehicle fitment

The manufacturer fitment list for the 12200 names: 1990–2001 Jeep Cherokee (XJ); 1997–2006 Jeep Wrangler (TJ); 1990–1995 Jeep Wrangler (YJ).

Check the old shaft’s spline count and length against the 12200 specifications before you start the job.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit is for C-clip Dana 35 axles without ABS and for use with a 27 spline carrier. It does not include a differential. Seals, bearings and wheel studs are included, so check the package contents against your installation before starting.

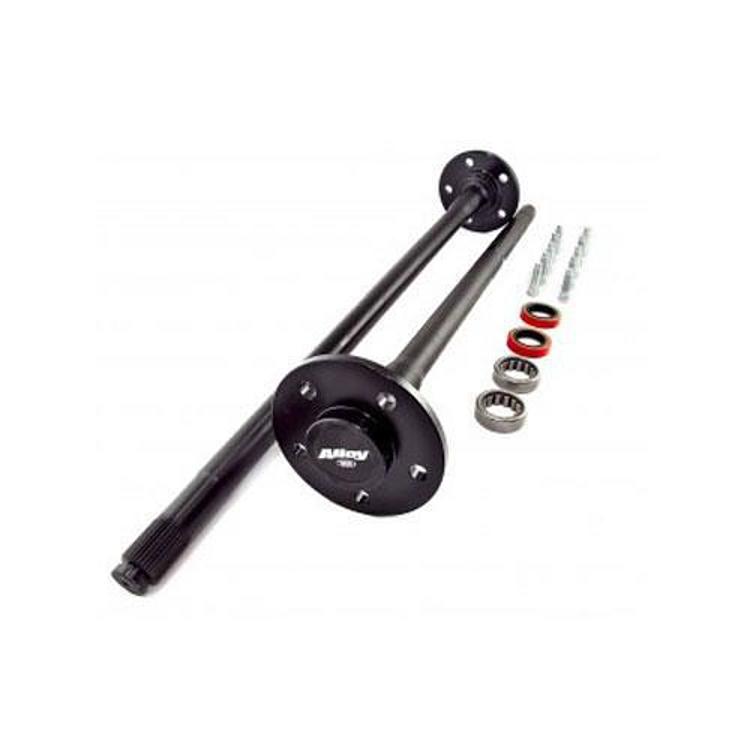

What’s included

  • Passenger and driver side axle shafts
  • Wheel bearing and seal kits
  • Wheel studs

Not included: Differential or carrier.

SKU: ALY12200 Category:

Specification

Shipping weight 44.00 lbs
Package dimensions 37.50 × 7.00 × 7.00 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1990–2001Base, Briarwood, Classic, Country, Laredo, Limited, Pioneer, SE, Sport
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, SE, Sahara, Sport, X
Jeep Wrangler (YJ)1990–1995Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which Jeeps does the Alloy USA 12200 fit?

The manufacturer list names the 1990-2001 Cherokee (XJ), 1997-2006 Wrangler (TJ) and 1990-1995 Wrangler (YJ). The kit is for non-Rubicon, C-clip axles without ABS.

What is included in the Alloy USA 12200 kit?

The kit includes both the passenger and driver side shafts, wheel bearing and seal kits, and wheel studs. It is for use with a 27 spline carrier and does not include the differential.

What material is the Alloy USA 12200 made from?

The kit uses 4140 chromoly that is heat treated twice and induction hardened. The shafts are designed to be up to 35% stronger than stock 1040 axles.

Do I need a new carrier if I use this kit?

Only if the existing carrier does not have 27 splines. The kit is built for a 27 spline carrier and does not include a differential, so measure the carrier before ordering.

How often should the axle seals be checked?

Check them whenever the tires come off for service, looking for grease on the inside of the wheel or on the brake components. Early attention to a leaking seal helps protect the bearing from running dry.
