CB Antennas & Mounts
Showing 13–24 of 87 resultsSorted by popularity
-
-
CB Antennas & Mounts

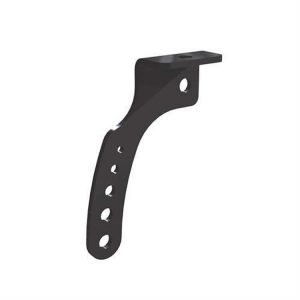

TeraFlex HD Hinged Carrier CB Antenna Mount – 4838220
- TeraFlex HD hinged carrier CB antenna mount, part number 4838220
- Designed to work with TeraFlex HD hinged tire carrier part numbers TER4838150 or TER4838100
- Mount type: CB antenna mount
- Vehicle year, model and trim not stated
SKU: TER4838220 -
-
-
-
-
CB Antennas & Mounts
Rugged Ridge Elite Antenna Base with 6″ Reflex Antenna – 17212.41
- Rugged Ridge Elite antenna base with 6-inch Reflex antenna, part number 17212.41
- Die cast aluminum base in textured black powder coat; red and raw aluminum finishes also offered
- Fits Wrangler JL (2018–2026) and Wrangler JK (2007–2018), 2-door and 4-door models
- Includes the 6-inch Reflex antenna, mounting hardware and a gasket
SKU: RUG17212.41 -
CB Antennas & Mounts
Rugged Ridge Side Dash CB Mount Holder – 13551.09
- No-drill dash mount holder for a CB radio
- Fits 2004–2006 Jeep Wrangler LJ and 1997–2006 Jeep Wrangler TJ
- Black powder coat finish
- Features a plate and a microphone mounting plate
- Longer dash screws supplied in the kit
SKU: RUG13551.09 -
-
CB Antennas & Mounts
CB Radio Windshield Mount
- Fits Jeep Wrangler LJ (2004-2006) and TJ (2003-2006) per Rugged Ridge’s manufacturer fitment list
- Part number 13551.07; UPC 804314290399
- Mounts the CB radio above the rearview mirror, off the dash
- Constructed of Q235 steel with a gloss black powder coat
- Universal pattern for most radio manufacturers’ mounting brackets
- Black zinc-coated hardware for a factory-finished look
SKU: RUG13551.07 -
Where to mount a CB antenna on a Jeep
Antenna placement matters more than antenna brand. A CB antenna radiates against the metal of the vehicle as a ground plane, and the more metal below and around the base, the better the signal pattern. On a Wrangler that leaves few good options, which is why most of the mounts here attach to the tailgate or the spare tire carrier. A tailgate mount using the spare tire bolt holes puts the base high and central, and a hinged carrier mount such as the TeraFlex Alpha HD bracket moves with the carrier so the antenna is not in the way when the gate swings.
Fender and hood mounts put the antenna out front, where it can be seen and tends to whip into branches. Roll bar and tube mounts are common on UTVs and on Jeeps with a cage, and they are the home for flag whips as well. Whatever you pick, the tip of a fiberglass antenna should ideally clear the roofline so it is not shadowed by the body.
Antenna types and length
Fiberglass antennas like the Firestik II series wind the radiating wire around a fiberglass rod and are top-loaded, which is efficient for a short antenna. Lengths of 3 and 4 feet suit trail rigs that hit overhead branches; longer whips reach farther but take a beating. Almost all of them use a standard 3/8-24 threaded base, so they interchange across mounts, and a spring at the base helps survive trail contact. Models with a tunable tip let you set the standing wave ratio without cutting anything.
Rugged Radios and some other UTV mounts are built for NMO style antennas and 3/8 inch NMO cable instead of 3/8-24 studs. These are two different systems, so check which base your antenna uses before choosing a mount.
Tuning for SWR
Every new antenna install should be checked with an SWR meter. A reading near 1.5:1 or lower on channel 20 is good; above 2:1 wastes power and can eventually damage the radio's final transistor. High SWR on a Jeep is almost always a ground problem: powder coat under the mount, a hinged carrier with no bonding strap, or a mount isolated by rubber. Scrape a small spot to bare metal under the mount, add a ground strap from the carrier to the body, and check again before adjusting the tip.
Mount hardware and coax
- Confirm the mount is for your exact body. JK tailgate mounts use the factory spare tire bolt pattern and fit 2007 to 2018 two-door and Unlimited models; JL and Gladiator tailgates differ.
- Tube mounts list a clamp diameter, for example 1.8 inch, and must match the bar closely or they will spin.
- Carrier mounts like the TeraFlex bracket are made for one specific tire carrier and will not bolt to another brand.
- Use quality RG-58 coax with a PL-259 connector, route it away from ignition wiring, and avoid coiling the excess tightly behind the dash.
Flag sleeves and flag whips
The Forever Wave sleeves in this category slip over a roll bar or an antenna and let 12 by 18 inch flags zip on and off, so you can swap a sports team flag for a state flag without removing anything. They are marine grade mesh with UV resistant thread and are sized by bar diameter: YJ roll bar, medium bar and so on. For a flag on an antenna, make sure the sleeve does not sit over the radiating section, which would detune it slightly. For trail use, a safety flag whip on a UTV is often required in dunes; those rules vary by riding area, so check locally.
Popular CB Antennas & Mounts brands
- AMI (25)
- Firestik (16)
- Rugged Ridge (14)
- TeraFlex (9)
- Forever Wave (7)
- Antenna X (5)
- Omix-Ada (3)
- American Outlaw (2)
- Crown Automotive (2)
- Gorilla Whips (2)
- Poison Spyder Customs (1)
- RT Off-Road (1)
CB Antennas & Mounts FAQ
Where is the best place to mount a CB antenna on a Wrangler?
The tailgate or spare tire carrier is the most popular spot. It puts the antenna high and near the center of the vehicle, uses factory holes on the JK, and keeps the whip out of the way. Add a ground strap if the carrier is hinged or powder coated.
Do I need to tune a new CB antenna?
Yes. Check the SWR with a meter after installation, aiming for about 1.5:1 or less on channel 20. High readings usually mean a poor ground at the mount rather than a bad antenna. Fix the ground first, then adjust the tunable tip if the antenna has one.
What size antenna base thread do these mounts use?
Most CB mounts and fiberglass antennas use a 3/8-24 threaded stud, so brands interchange. Some UTV tube mounts are made for NMO style antennas and cable instead, which is a different system. Match the mount to the antenna base you plan to run.
Can a flag sleeve go on a CB antenna?
Yes. Zip-on flag sleeves are sized to slide over roll bars or antenna shafts and hold interchangeable 12 by 18 inch flags. Keep the sleeve low on the antenna so it does not cover the loaded upper section, and recheck SWR after fitting it.
