TIS Offroad 547B Series Wheel, 22x10 with 6 on 5.5 Bolt Pattern – Black – 547B-2208319

TIS Offroad

Shop TIS Offroad Wheels 22x10 6x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • TIS Offroad 547B Series wheel, 22×10 inches, black finish
  • Part number TIS547B-2208319
  • Bolt pattern 6 on 5.5, center bore 106
  • Offset -19, backspacing 4.75

Description

Overview

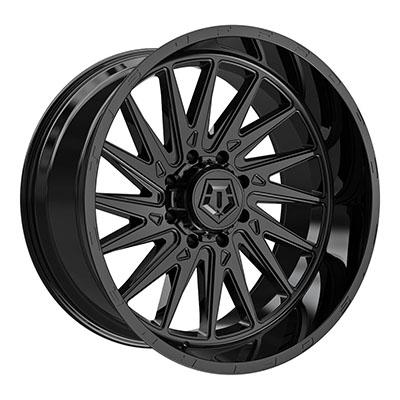

The TIS Offroad 547B is a 22×10-inch black aluminum directional wheel in the 547 Series, part number TIS547B-2208319. It is listed with a 6 on 5.5 bolt pattern and a center bore of 106.

The 22-inch diameter and 10-inch width mean tire sizing and fender clearance should be checked before fitting. The offset is -19 and the backspacing is 4.75, so the face position differs from wheels with a deeper offset.

Key features

  • Black finish
  • 22-inch diameter and 10-inch width
  • Bolt pattern 6 on 5.5
  • Offset -19 and backspacing 4.75 listed
  • Directional aluminum construction

Checking hub match

A 22-inch wheel changes how the whole corner of a vehicle works, so the first step is measuring the hub before any tire is considered. Bolt pattern decides whether the lug holes line up with the studs. Center bore decides how the wheel is located on the hub face. A hub-centric fit keeps the load on the hub instead of the lug nuts, which reduces vibration at speed.

Offset and backspacing control where the wheel sits relative to the fender and the brake caliper. A wheel with a different offset moves the face in or out, which can rub suspension parts or change steering feel. Tire width and sidewall height also change the outer edge, so check the full stack together before the first drive. Off-road tires with stiffer sidewalls can change how a wheel carries load, so the setup should be reviewed as a whole.

  • Measure the hub bore before mounting
  • Confirm bolt pattern and lug seat type
  • Test-fit with a tire before final torque
  • Recheck torque after the first drive

Specifications

Brand TIS Offroad
Part number TIS547B-2208319
Series 547
Diameter 22 inches
Width 10 inches
Offset -19
Center bore 106
Backspacing 4.75
Bolt pattern 6 on 5.5
Style Directional
Finish Black
Construction Aluminum

Vehicle fitment

No vehicle is named for this 22×10 wheel. The Universal Fit label is not a vehicle, so the bolt pattern, center bore and offset must be checked by hand.

Confirm fit for your vehicle’s year, model and trim before ordering. Check the 6 on 5.5 bolt pattern, 106 center bore and -19 offset against your hub by hand.

What’s included

This is a single wheel. Caps, lug nuts and tires are not part of this item.

Not included: Tires and mounting hardware are not part of this item.

SKU: TIS547B-2208319 Categories: ,

Questions & Answers

Is the TIS547B-2208319 a 22-inch wheel?

Yes. It is listed at 22 inches in diameter and 10 inches wide, with black finish, from TIS Offroad's 547 Series and part number TIS547B-2208319.

What bolt pattern and center bore does it have?

The bolt pattern is 6 on 5.5 and the center bore is 106. Check both against your hub before fitting, since no vehicle is tied to these figures.

Does this wheel name a fitment?

No. The fitment field reads Universal Fit and no make, model or year is named. Check the -19 offset and 4.75 backspacing against your vehicle's clearance first.

How do I know if a wheel needs a hub-centric ring?

A ring is needed when the wheel's center bore is larger than the vehicle's hub. The ring fills the gap so the wheel centers on the hub rather than the lug studs. Measure the hub and compare it with the bore before choosing a ring size.

Should lug nuts be replaced when changing wheels?

Check the lug nuts for a seat style that matches the new wheel's lug holes. Mismatched seats can loosen under load. Inspect the studs for thread damage at the same time, and torque the nuts again after a short drive.
