Overview

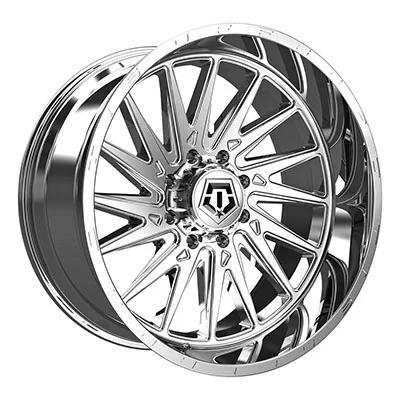

The TIS Offroad 547C is a 20 by 10 inch chrome aluminum wheel with an 8 on 6.5 bolt pattern and part number TIS547C-2108119. It is a directional wheel in the Series 547 range, with a -19 offset and a 125.2 center bore that should be checked against your hub before buying.
Confirm the 8 on 6.5 bolt circle matches your hub before anything else. Backspacing is 4.75, which together with width and offset sets tire and brake clearance.
Key features
- 20-inch diameter and 10-inch width
- Directional style
- Chrome finish
- 8 on 6.5 bolt pattern
- Aluminum construction
- Offset -19, center bore 125.2, backspacing 4.75
Bolt circles and wheel selection
The bolt circle is the diameter of the circle the lug holes sit on, and it has to match the hub exactly for the wheel to clamp evenly. A wheel can have the right number of lugs and still be the wrong bolt circle, which puts uneven stress on studs and wheel holes. Measure the hub before buying, and do not force a wheel onto a hub that is close but not identical.
Choosing a wheel also means looking at how width, offset and backspacing affect the space behind the spokes. A wider face can reduce clearance at the strut or caliper, even when the bolt circle is correct. Re-check lug torque after the first drives, and inspect the lug seats for embedded dirt or damage at each tire rotation.
- Measure the hub bolt circle before buying
- Check width and backspacing against brake clearance
- Inspect lug seats at each tire rotation
Specifications
| Brand | TIS Offroad |
|---|---|
| Part number | TIS547C-2108119 |
| Series | 547 |
| Wheel diameter | 20 inches |
| Wheel width | 10 inches |
| Bolt pattern | 8 on 6.5 |
| Offset | -19 |
| Center bore | 125.2 |
| Backspacing | 4.75 |
| Style | Directional |
| Finish | Chrome |
| Construction | Aluminum |
Vehicle fitment
This wheel is a universal fit design with no vehicle attached. Match the 8 on 6.5 pattern and 125.2 center bore to the hub you plan to use.
Wheels with a different bolt pattern, such as 8 on 180, are not interchangeable with this one. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check that the 125.2 center bore fits the hub closely before mounting. Confirm that the lug seat style matches your lug nuts before the wheel goes on.
What’s included
The wheel is the only item included; lug nuts and center caps are up to the buyer.
