Overview
The TeraFlex 4444400 is an Extreme Short Shaft slip yoke eliminator for the NP231 (231) transfer case. It is the shortest transfer case slip yoke eliminator for the 231, shorter than both a standard kit and the ATLAS II. That shortness allows a longer CV style drive shaft to be used.
The kit includes all necessary components to modify the stock 231 case. Fitment is shown for 1997-2001 Cherokee XJ, 2004-2006 Wrangler LJ and 1997-2006 Wrangler TJ models in the fitment section.
Key features
- Extreme Short Shaft design for the NP231 (231) transfer case
- Includes all components needed to modify the stock 231 case
- Speedometer signal from a tone ring and electronic sensor
- Ring and pinion ratio and tire size can be custom calibrated by an OEM service center
- Fixed 1310 CV style yoke with new output shaft and new extension housing
Choosing a driveline setup
A slip yoke eliminator removes the sliding spline from the transfer case output, so the rear driveshaft runs at a fixed length. That change moves the driveline angles, which is why the shaft and the yoke need to be planned together. Before buying, measure the distance between the transfer case output and the rear axle pinion with the vehicle at normal ride height, then compare it with the length of the CV style shaft you intend to use.
Many owners replace the rear driveshaft at the same time as the u-joints, and check pinion angle if the driveline is out of alignment. Inspect any old shaft for worn joints, bent tubing and damaged slip yoke remnants before reusing it. Keep speedometer signal in mind as well, since this type of conversion changes how speed is read on older setups.
- Measure driveline length before ordering
- Inspect the old shaft and joints
- Check joint angles after the first drive
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 4444400 |
| UPC | 843885027720 |
| Transfer case | NP231 (231) |
| Replacement yoke | 1310 CV style |
| Output shaft | New output shaft included |
| Extension housing | New extension housing included |
| Speedometer | Tone ring and electronic sensor |
| Drive shaft | Longer CV style rear drive shaft required |
Vehicle fitment
It fits these vehicles:
- 1997-2001 Jeep Cherokee XJ (Classic, Country, Limited, SE, Sport)
- 2004-2006 Jeep Wrangler LJ (Unlimited, Unlimited Rubicon)
- 1997-2006 Jeep Wrangler TJ (65th Anniversary Edition, Rubicon, SE, Sahara, Sport, X)
The Cherokee XJ trims listed are narrower than the Wrangler lists, and Wrangler YJ models are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Earlier 231 applications that use a mechanical speedometer cable must be updated to an electronic speedometer before this kit works properly. The kit requires a longer CV style rear drive shaft, so plan the driveline before installation.
What’s included

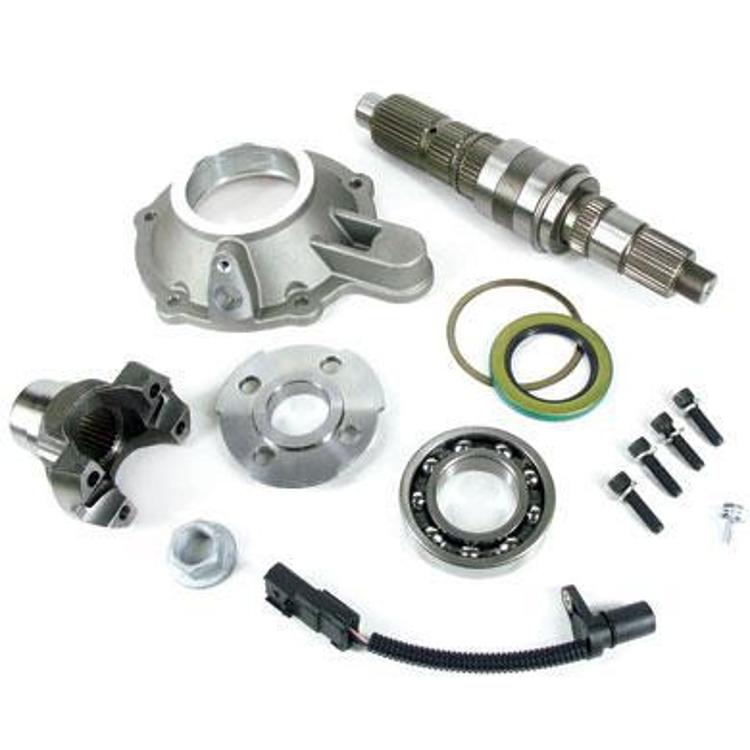

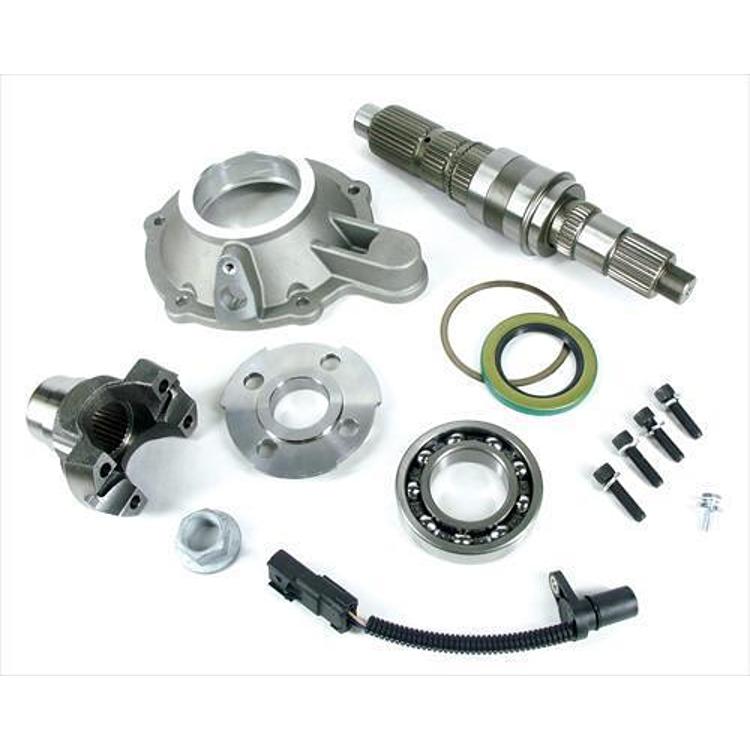

The kit includes a new tail shaft, a new output shaft and a new extension housing, along with the 1310 CV style yoke and the components needed to modify the stock 231 case.
Not included: the longer CV style rear drive shaft, which is required.
