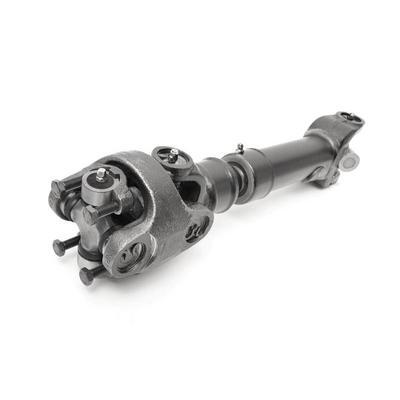

Rough Country Rear CV Drive Shaft (4-6″ Lift) – 5074.1

Rough Country

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear double cardan CV driveshaft for 4 to 6 inch lifts
  • Jeep Wrangler TJ with Dana 44 rear axle and manual transmission
  • Slip yoke eliminator required
  • Not for Rubicon or Unlimited models
  • Part number R/C5074.1

Description

Overview

The Rough Country Rear CV Drive Shaft (4-6 inch lift), part R/C5074.1, is a double cardan style CV driveshaft for the Jeep Wrangler TJ. Rough Country recommends it for TJ models equipped with a 4 to 6 inch suspension lift, to prevent driveline vibration and breakage of the rear output shaft.

The shaft is only for models with a Dana 44 rear axle and a manual transmission. A slip yoke eliminator is required, and the shaft does not fit Rubicon or Unlimited models.

The shaft fits Dana 44 rear axle models with a manual transmission. A slip yoke eliminator is required, and it does not fit Rubicon or Unlimited models. The 2000 to 2002 models with the 4-cylinder engine and 3-speed automatic transmission are excluded, as are 2005 and 2006 models with the 2.4L 4-cylinder and 6-speed manual. For those vehicles, the R/C5080.1 shaft is the correct choice.

Key features

  • Double cardan style CV rear driveshaft
  • Recommended for TJ lifts of 4 to 6 inches
  • Helps prevent driveline vibration
  • Helps prevent breakage of the rear output shaft
  • Extended length, direct fit

Dana 44 driveline considerations

The Dana 44 rear axle is common on earlier Wranglers, and a driveshaft swap on one is a good moment to check the whole rear driveline. The pinion yoke, seals and axle bearings should be free of play and leaks before the new shaft goes on. A clean, tight connection at the axle makes the new driveshaft easier to balance.

A lift changes the angle between the transmission and the rear axle, and steep angles can cause vibration. Measure the angles after installation and check that brake lines, the axle housing and the suspension have clearance through full travel. A quick road test helps reveal binding or buzzing before a long trip.

  • Inspect the pinion yoke and axle seals before installing
  • Check brake lines and housing clearance through full travel
  • Measure driveline angles after the lift is installed

Specifications

Brand Rough Country
Part number R/C5074.1
Position Rear
Length Extended
Joint type CV, double cardan style
Recommended lift 4 to 6 inches
Rear axle Dana 44 only
Transmission Manual only
Slip yoke eliminator Required
Fitment type Direct fit

Vehicle fitment

It fits 2000–2006 Jeep Wrangler (TJ) models with a Dana 44 rear axle and manual transmission.

Rubicon and Unlimited models are excluded, and the TJ years noted above should use the R/C5080.1 shaft instead. Confirm your vehicle’s year, model and trim before choosing this part.

Installation notes

A slip yoke eliminator is required and must be ordered with the shaft. Confirm your lift height and rear axle type before fitting.

What’s included

One rear CV driveshaft.

Not included: a slip yoke eliminator, which this shaft requires.

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)2000–200665th Anniversary Edition, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the R/C5074.1 fit a 2004 Jeep Wrangler TJ with a Dana 44 rear and manual transmission?

Yes. A 2004 TJ falls within the 2000–2006 range, and this shaft is made for Dana 44 rear axle models with a manual transmission. Confirm both before choosing this part.

Does this shaft fit a Rubicon or Unlimited TJ?

No. It does not fit Rubicon or Unlimited models, even when the year falls within the range. Check the model before choosing this part, since a year match alone is not enough.

Do I need a slip yoke eliminator?

Yes. A slip yoke eliminator is required with this rear driveshaft, so add one to the order. Without it, the installation is not complete and the shaft will not be set up correctly.

What should I check on a Dana 44 rear before installing?

Inspect the pinion yoke, seals and axle bearings for play or leaks. Check the axle housing bolts and brake lines for clearance, since a lift changes the driveline angle and the shaft's position.

Why does driveline angle matter with a lift?

A lift changes the angle between the transmission and the rear axle, which can cause vibration if it is too steep. Measure the angles after installation and address any binding or buzzing you notice on the road.
