Overview

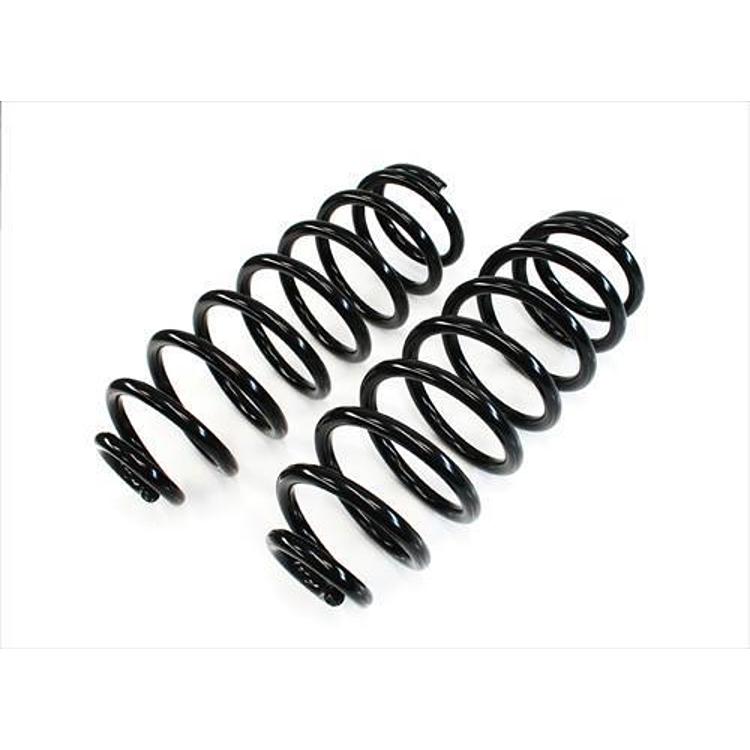

The TeraFlex 4 Inch Lift Coil Springs, part number 1854402, are rear coil springs for the 2007–2015 Jeep Wrangler JK. They provide a 4 inch lift on four-door models and a 6 inch lift on two-door models.
A stock JK carries about 1.5 inch of front rake, with the front lower than the rear. TeraFlex front coil springs are designed to remove that rake, and these 4 inch springs go on the rear. Measuring after installation will show the front rising more than the rear, which is the leveling goal.
Expect some variation. TeraFlex sets its suspensions to land near the advertised height when a winch, bumpers, racks and a larger spare tire are included on the vehicle, so each build can differ from the specified figure. Per TeraFlex, two-door JKs gain roughly 1 inch more lift than four-door JKs with the same springs.
Key features
- Rear coil springs for two-door and four-door JK Wrangler models
- Lift of 4 inch on four-door models and 6 inch on two-door models
- Two-door JKs gain about 1 inch more lift than four-door JKs with the same springs
- TeraFlex front coil springs are designed to eliminate the roughly 1.5 inch factory front rake
- Leveling spacers from TeraFlex allow ride height tuning
- Part number 1854402 with UPC 843885024019
Alignment and driveline after lifting
A lift of this height changes the angles of the driveshafts and the steering geometry, so a shop should check them after installation. Worn U-joints and tie rod ends tend to show up sooner once the suspension is raised, so inspect them during the same visit. Brake hoses and wiring routed for the stock height may need relocation or extension.
Upgraded shock absorbers and a track bar often accompany a spring change, and they help control the extra movement that comes with added height. Measure the finished height on the vehicle itself rather than relying on a single figure, because accessories change the result. Recheck the bolts after the first few trail runs.
- Driveshaft angle and U-joint wear
- Brake hose and wiring slack
- Steering linkage and alignment
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1854402 |
| UPC | 843885024019 |
| Position | Rear |
| Body styles | Two-door and four-door |
| Lift height | 4 inch on four-door models; 6 inch on two-door models |
Vehicle fitment
They fit 2007–2015 Jeep Wrangler (JK) models in the 70th Anniversary, Rubicon, Sahara, Sport and X trims, along with the Unlimited versions of those trims.
Wrangler JK years outside 2007–2015, every JL model, and earlier TJ, LJ and YJ Wranglers are not covered by this fit. Verify your vehicle’s year, model and trim before you buy.
Installation notes
After fitting these springs, get an alignment and a check of driveline angles, since a lift of this height changes suspension geometry. Measure the finished height on your own vehicle, because the two-door and four-door figures differ.
What’s included
The product covers rear coil springs, part number 1854402.
Not included: Check whether shocks, brackets and hardware are needed for your setup before work begins.
