Overview

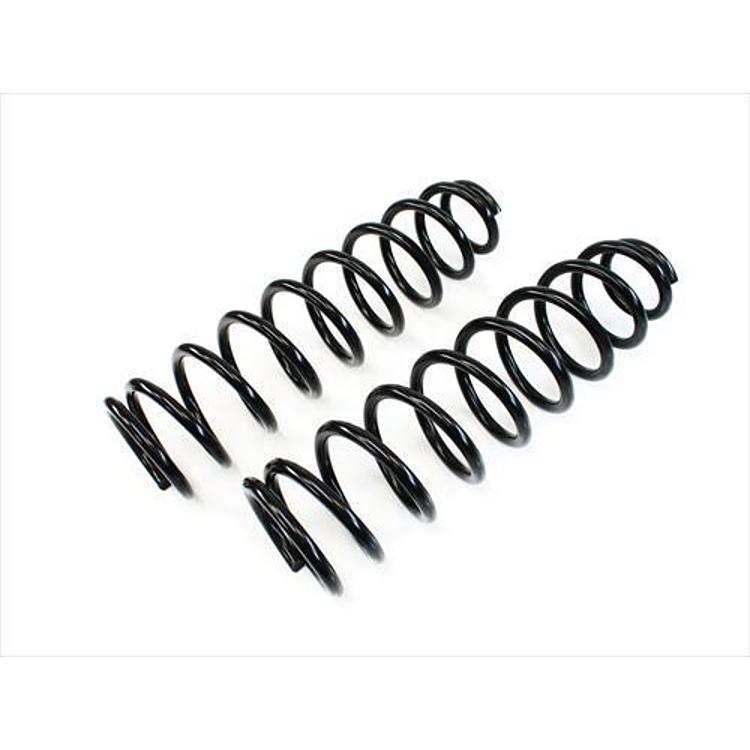

The TeraFlex 1853402 is a front coil spring kit for 2007–2015 Jeep Wrangler JK models. It gives 4 inch of lift on 4-door Wranglers and 6 inch on 2-door Wranglers, and it is designed to correct the forward tilt that a stock JK carries from the factory.
The front end sits about 1.5 inch lower than the rear on a stock JK, so these springs raise the front more than the back to level the vehicle. A 2-door gains roughly 1 inch more lift than a 4-door on the same springs, and accessories such as winches, bumpers and racks change the final height. Measure the result on your own vehicle.
Key features
- Front-position coil springs designed to level a JK that sits low in front
- 4 inch lift on 4-door models and 6 inch lift on 2-door models
- Targets the factory front rake of about 1.5 inch
- Direct fit for 2007–2015 Jeep Wrangler JK, including Unlimited versions
- Two-door JKs gain roughly 1 inch more lift than 4-door JKs on identical springs
- Leveling spacers from TeraFlex are available for finer ride-height work on JK suspensions
Measuring and tuning ride height
Ride height on a lifted JK is easiest to judge with the vehicle parked on level ground and the tires at their usual pressure. Measuring from the center of each wheel arch to the ground at all four corners shows whether the front and rear are balanced. Repeating the check after adding bumpers, racks or winches keeps the result honest, because those items shift the front more than the rear.
Small adjustments are easier to make once the springs are in and the measurements are recorded. Leveling spacers can fine-tune the stance in small steps, and any change should be followed by an alignment check.
- Measure all four corners on level ground
- Record readings before and after accessories
- Check the alignment after any height change
- Inspect shocks for leaks and bottoming out
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1853402 |
| UPC | 843885023890 |
| Position | Front |
| Body styles | 2-door and 4-door |
| Lift height, 4-door | 4 inch |
| Lift height, 2-door | 6 inch |
| Factory front rake addressed | About 1.5 inch |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2007–2015 Jeep Wrangler JK, including the 70th Anniversary, Rubicon, Sahara, Sport and X trims and their Unlimited counterparts. JK model years from 2016 onward and other Wrangler generations are outside this kit.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Changing the lift affects alignment and driveline angles, so have the front end aligned and inspect the driveshaft after the springs go in. Measure ride height on both sides once the vehicle is back on the ground and compare the readings with the 4 and 6 inch figures for your body style. Accessories added later will move those numbers, so take the measurements with the gear you actually run.
What’s included
Compare the number of springs and any hardware against your installation plan before starting.
