Overview

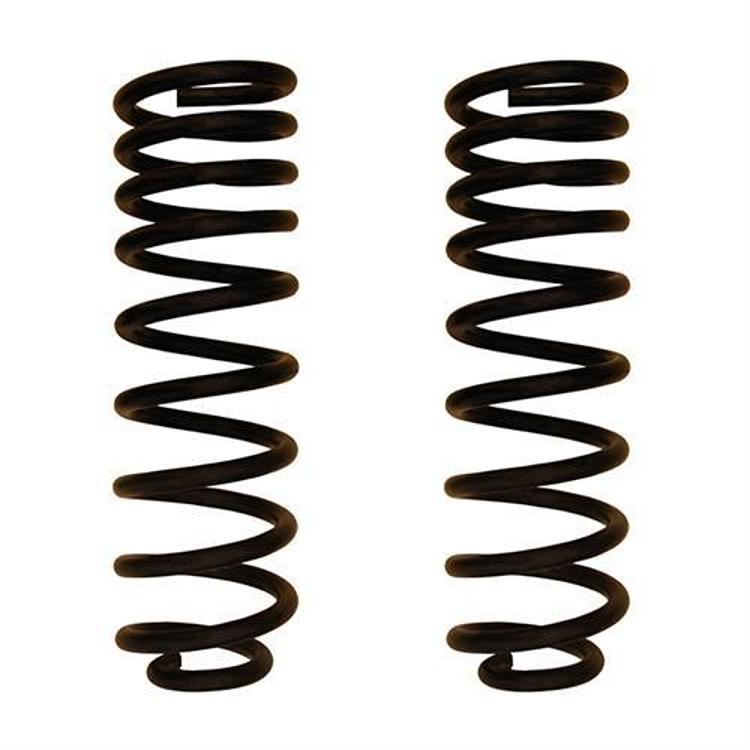

The Rock Krawler RK02002 is a rear heavy-duty coil spring for the 2007–2016 Jeep Wrangler JK, rated by Rock Krawler at a 3.5 inch lift on two-door and four-door models. It is a rear position part, so it replaces the rear springs rather than the front.
The spring is preset to limit settling, shot peened for stress relief and finished in durable black powder coat. It is sport tuned for comfortable ride quality and off-road use.
Key features
- Rear position, direct fit for JK Wranglers
- Heavy-duty coil spring with a 3.5 inch lift
- Preset construction to reduce settling over time
- Shot peened for stress relief
- Black powder coat finish
- Sport tuned ride and off-road focus
Rear coil and axle geometry
Rear coil springs carry the axle and the rear share of the vehicle’s weight, so a rear lift changes how the whole back end sits. Raising the rear can alter the pinion angle, and that is worth measuring once the new spring is in, since an angle that is too steep can cause vibration. Rear shocks and bump stops often need the same attention, because the rear travel they see changes with the new height.
Rear springs are usually replaced as a left and right pair so the axle sits level. A fresh look at the brake lines and rear track components during the install helps the rear end settle into its new position without surprises.
- Pinion angle measured after rear lift
- Rear shock length matched to the new height
- Bump stops inspected for splits
- Brake lines checked for slack at the axle
Specifications
| Brand | Rock Krawler |
|---|---|
| Part number | RK02002 |
| UPC | 70000541864 |
| Lift height | 3.5 inch |
| Position | Rear |
| Fitment type | Direct fit |
| Finish | Powder coated black |
Vehicle fitment
It fits the 2007–2016 Jeep Wrangler JK in the 70th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, including the Unlimited versions.
The 2017 and 2018 JK model years and Wranglers from the TJ, LJ and JL generations are outside this fit. Check your year, model and trim against this fit before ordering.
Installation notes
Rear lift springs raise the rear end and can change the driveshaft operating angles, so check the pinion and driveline angles after installation. Actual lift depends on accessories and axle positioning, so take the measurement once the vehicle is equipped.
What’s included
Check the package contents against your installation before starting.
