Overview
The TeraFlex 1156333 is a 3 inch lift kit for four-door Jeep Wrangler JK models, built around eight adjustable FlexArms and a front adjustable track bar. It uses 3 inch lift coil springs and includes front swaybar disconnects, rear swaybar links, a rear track bar bracket and bumpstops. It fits the 2007-2015 Wrangler JK in 70th Anniversary, Rubicon, Sahara, Sport and X trims, including the Unlimited versions.
The geometry and load tuning are designed to keep factory stability controls working within Jeep’s parameters. The lift height range is 3 to 4.99 inches. Confirm whether 9550 VSS shock absorbers are included before ordering.
Key features
- 3 inch lift coil springs
- Eight adjustable FlexArms, lower and upper
- Front adjustable track bar
- Front swaybar disconnects
- Rear swaybar links
- Rear track bar bracket
- Bumpstops and all necessary hardware
- The rear lift component is a set of radius arms.
Driveline and tire fitment
Lifting a Wrangler JK changes the driveline angles, and the driveshaft is the component most affected by a longer lift. Modifications help keep the joints working within range, and exhaust clearance on later models is a separate check that is often overlooked until the first hard articulation.
Tire size and wheel backspacing decide how much rub the new setup creates, so the wheel choice matters as much as the tire. Check the fender liners and steering components after the first drive, and look for rubbing at full lock. Lift components also benefit from a periodic check of bolts and bushings, because the added height puts more load on them.
- Check driveshaft U-joints for play
- Re-torque lift hardware after the first drives
- Inspect steering and track bar mounts for wear
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1156333 |
| UPC | 843885020158 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Coil spring kit |
| Rear lift method | Coil springs |
| Rear lift component | Radius arms |
| Shocks | 9550 VSS listed in the bullets; spec sheet says not included |
| Maximum tire size | 35 inch |
| Wheel requirement | Aftermarket wheels with 4.5 inch backspacing or less |
Vehicle fitment
It fits the 2007-2015 Jeep Wrangler JK in 70th Anniversary, Rubicon, Sahara, Sport and X trims, including Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport and Unlimited X trims.
Confirm your vehicle’s year, model and trim before ordering, since fit is limited to the trims this kit covers.
Installation notes
Driveshaft modifications are recommended with this suspension. For 2012 and later JK models, exhaust spacers (part number 2610000) or another exhaust modification are needed for proper driveshaft clearance. Aftermarket wheels with 4.5 inch backspacing or less are required, and the front alignment should be set after installation.

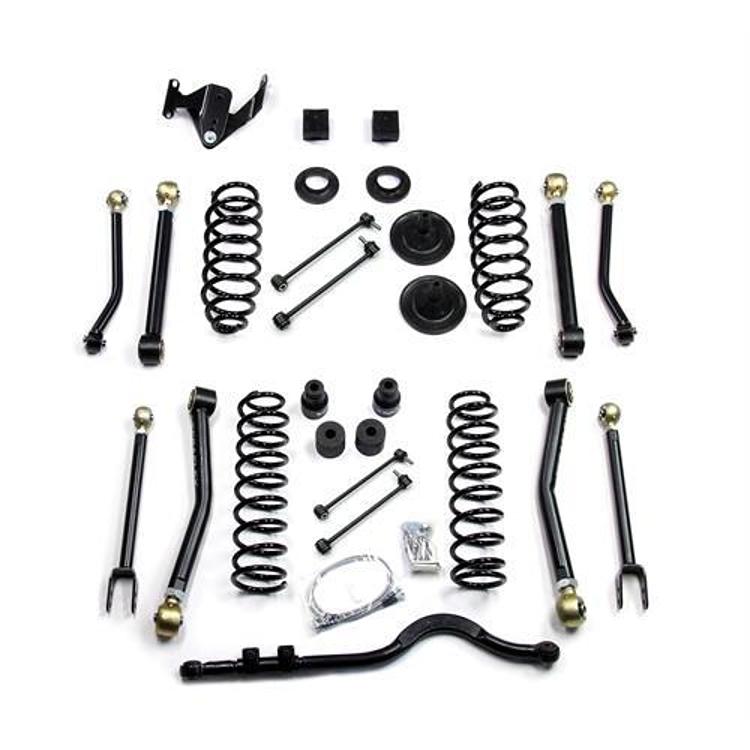

What’s included
The kit includes 3 inch lift coil springs, eight adjustable FlexArms, a front adjustable track bar, front swaybar disconnects, rear swaybar links, a rear track bar bracket, bumpstops and the necessary hardware. Not included: Wheels with 4.5 inch backspacing or less are required, and exhaust spacers are needed for 2012 and later models.
