Overview
The TeraFlex 1351062 is a 2.5 inch suspension lift kit for two-door right hand drive Jeep Wranglers (JK). It fits 2007–2015 JK models in the 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X trims.
The kit includes 2.5 inch lift coil springs, rear sway bar links, a heavy duty rear track bar axle bracket, bumpstop extensions and all necessary hardware. It fits all right hand drive JK Wrangler models, including Rubicon.
Suspension geometry and load tuning keep the factory stability controls working within Jeep’s original parameters. Tires up to 35 inches fit when aftermarket wheels with 4.5 inch backspacing or less are used.
Key features
- 2.5 inch lift coil springs
- Rear sway bar links
- Heavy duty rear track bar axle bracket
- Bumpstop extensions
- All necessary hardware included
- Max tire size 35 inch
Shock length and exhaust clearance
Shocks are not included with this kit, so the shock choice happens separately. Because the lift raises the springs, the front extended shock length has to be checked against the new ride height. Measure the shocks you plan to use, and keep the 24.5 inch limit for exhaust clearance on later models in mind.
Exhaust clearance is a common surprise on a two-door JK after a coil lift. Exhaust routing can pinch or strain once the axle moves, so look for contact points at full droop and full articulation. Heat shields and hangers are worth checking at the same time.
Sway bars and rear track bar geometry are linked to how the lift feels on the trail. Inspect the sway bar links and axle bracket bolts after the first few runs, and retighten them to specification. Keep a note of mileage and inspections so wear can be spotted early.
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1351062 |
| UPC | 843885021100 |
| Lift | 2.5 inch |
| Suspension type | Coil spring kit |
| Rear lift method | Coil springs |
| Body style | Two-door models |
| Max tire size | 35 inch |
| Shocks | Not included |
Vehicle fitment
Coverage runs to the 2007–2015 Jeep Wrangler JK, with the 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X trims.
The configuration covers two-door, right hand drive models, so four-door Wranglers are not included. Model years outside 2007–2015 are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
On 2012 and later JKs, exhaust spacers or another exhaust change may be needed when the front extended shock length exceeds 24.5 inches. The rear track bar axle bracket changes rear geometry, so check alignment after installation, and check the rear sway bar links as part of the setup.
What’s included

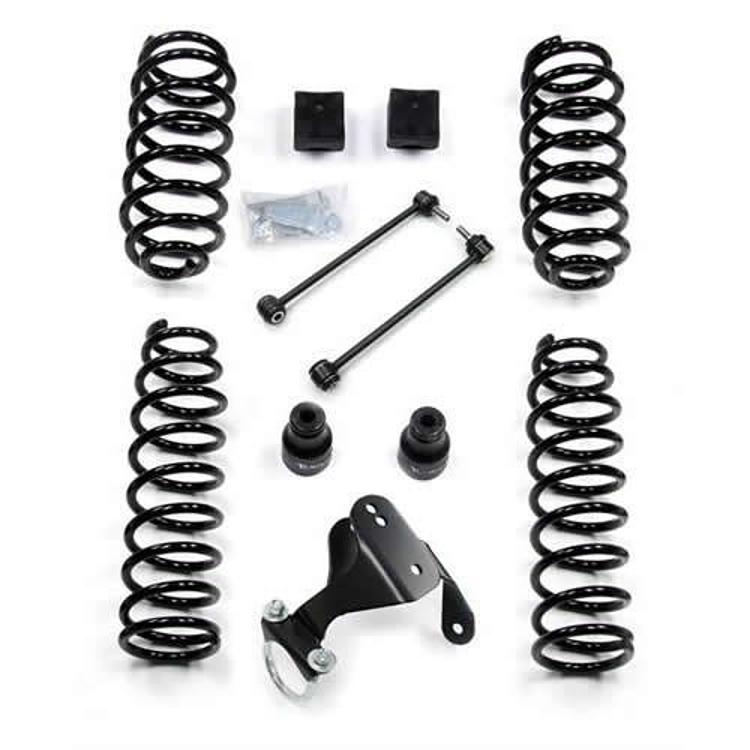

The kit includes 2.5 inch lift coil springs, rear sway bar links, a heavy duty rear track bar axle bracket, bumpstop extensions and all necessary hardware.
Not included: Shocks.
