Overview
The TeraFlex 1457600 is a 6 inch Elite LCG long arm lift for two-door and four-door Jeep Wrangler JK models, covering 2007–2015 JK models with a 5 to 6.99 inch lift range. It is designed to fit tires up to 38 inches and needs aftermarket wheels with 4.5 inch backspacing or less.
The fully adjustable upper and lower long FlexArms allow pinion, caster and tire position to be modified. The design addresses anti-dive for front braking, anti-squat for rear power transfer and roll center geometry, and the bracketry is heavy duty CNC cut steel plate.
Driveshaft modifications are required on all JK Wranglers and Unlimited models with this suspension system. Shocks are not included.
Key features
- 6 inch Elite LCG long arm lift
- Fully adjustable upper and lower long FlexArms
- Adjustment for pinion, caster and tire position
- 2 inch OD by .281 wall DOM lower FlexArm tube
- Heavy duty CNC cut steel bracketry
- Front sway bar disconnects
- Max tire size 38×13.50
Long arm geometry basics
Long arm suspensions control the axle through longer links, which reduces the change in pinion and caster angle as the axle moves. The FlexArms in this kit are fully adjustable, so the geometry can be set to the tire and driveline in use. Check the arm bushings and frame mounts after the first few trail trips, since the long links carry a lot of load at the front.
Adjustments change tire position, so re-check wheel clearance at full steering lock and full suspension compression after each change. Heavy duty CNC cut steel brackets mount the arms to the frame, and the welds and bolted joints should be inspected for cracks. Driveline angles also change with the lift, so inspect the driveshaft joints during routine service.
- Re-check alignment after any FlexArm adjustment
- Inspect frame bracket welds
- Check driveshaft U-joints for play
- Measure clearance at full lock
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1457600 |
| UPC | 843885021957 |
| Lift | 6 inch |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Long arm |
| Rear lift method | Coil springs |
| Lower FlexArm tube | 2 inch OD, .281 wall DOM |
| Max tire size | 38×13.50 |
| Shocks | Not included |
Vehicle fitment
It fits 2007–2015 Jeep Wrangler (JK) models, including 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X models, in both two-door and four-door body styles.
Model years outside 2007–2015 are not covered. Match the year, model and trim to your truck before ordering.
Installation notes
Driveshaft modifications are required on all JK Wranglers and Unlimited models with this system. The bracketry is set against the frame locating holes before the brackets are stitch-welded in place, so confirm the fit before the final welds.
What’s included

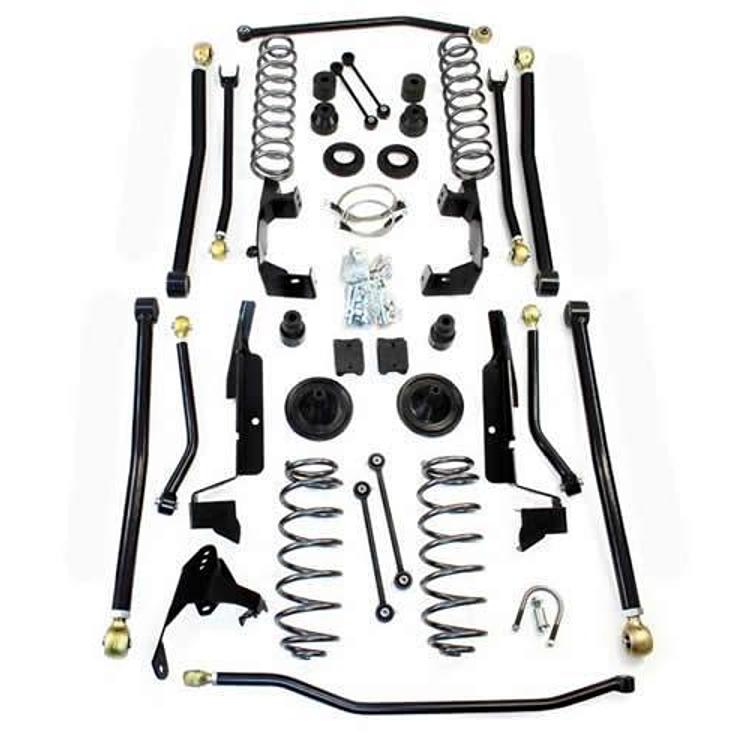

The kit includes the upper and lower long FlexArms, heavy duty bracketry, front sway bar disconnects and the 2 inch lower FlexArm tube. Shocks are not included.
Not included: Shocks.
