Overview

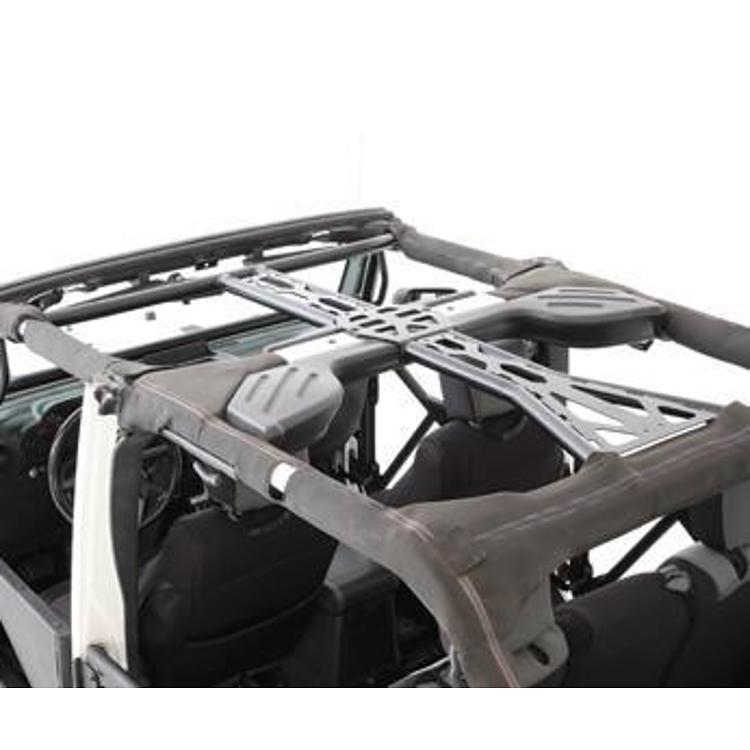

The Smittybilt SPTCAGEJK2LPKG is a roll cage and tubular door pak for the 2-door Jeep Wrangler JK. It fits the 2007–2018 Wrangler JK 2-door. The package has the seven-piece SRC bolt-in roll cage and SRC front tubular doors.

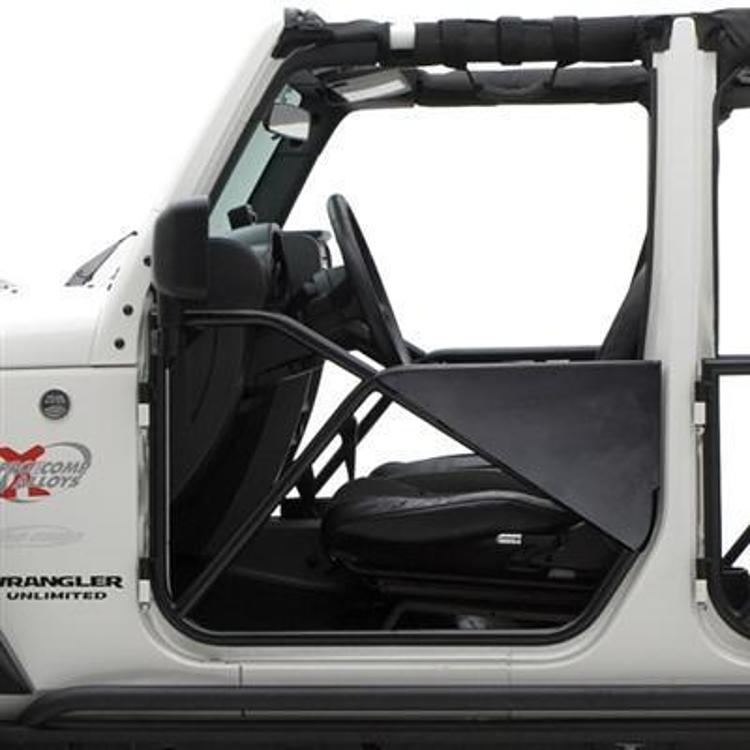

The cage uses 1020 DOM tubing and the Knuckle System, which attaches to the factory roll bar with a pivot on one end and grade 10 fasteners on the other. It bolts in with no drilling, although the factory roll bar covers still need modification. The tube doors install with the factory hinges and latches. The product image is for illustration only.
This 2-door JK package includes the seven-piece SRC bolt-in cage and SRC front tubular doors, finished in satin black powder coat and backed by a 5-year limited warranty. The tube doors are welded steel and install with the factory door hinges and latches. The image is for illustration only, so check the kit contents against the list above when the package arrives.
Key features
- Seven-piece bolt-in SRC roll cage for a 2-door JK
- SRC front tubular doors, welded steel
- Knuckle System mounts with grade 10 fasteners
- Satin black powder coat finish
- No-drill installation
- Works with factory and aftermarket soft tops
Before installing a roll cage
A roll cage is a structural part, so its mounting points matter as much as the tubes themselves. The cage ties into the factory roll bar, which means that bar’s condition controls how well the cage performs. Look for rust, cracks and loose welds before the install, and replace any worn hardware rather than reusing it.
Soft tops and door fit can change once a cage is in place. Check that the top still clears the cage and that the doors close without rubbing. Seat belt anchors and harness routing should also be reviewed, since the cage changes where the belts sit. Plan the work in a dry, level space. Retighten all fasteners after the first few trail runs and inspect them again after hard use.
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | SPTCAGEJK2LPKG |
| Configuration | Seven-piece cage with front tubular doors |
| Cage material | 1020 DOM tubing, .120 wall |
| Fasteners | Grade 10 |
| Finish | Satin black powder coat |
| Warranty | 5-year limited |
| Installation | Bolt-in, no drilling |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK) 2-door. Confirm fit for your vehicle’s year, model and trim before ordering.
Unlimited 4-door Wranglers, and TJ, LJ and JL models, are not covered by this package. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The factory roll bar covers must be modified, and the package will not work along with A-pillar switch pods. Because the cage bolts to the factory roll bar, confirm that the roll bar is in good condition before installing the cage.
