Overview

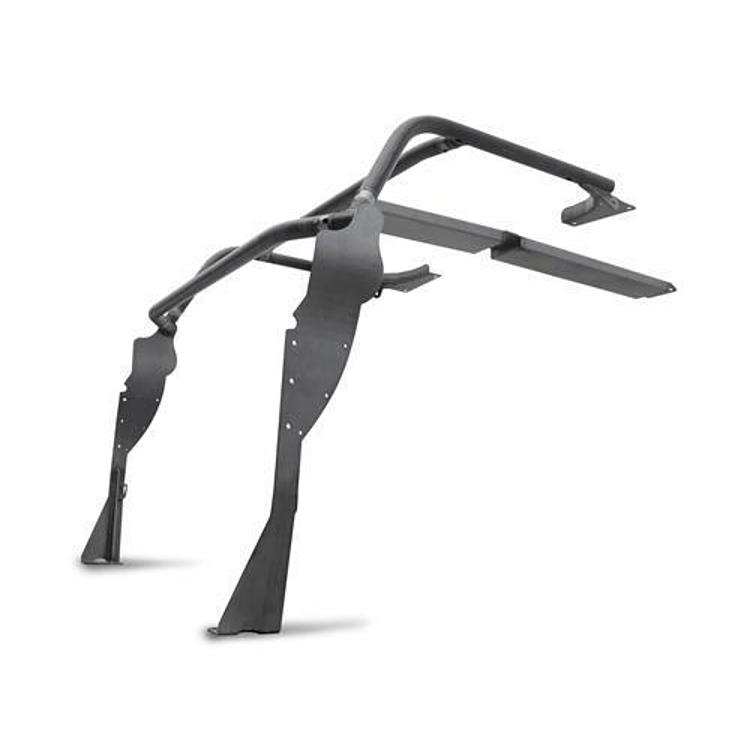

The Poison Spyder Bolt-Together Trail Cage Kit, bare steel, part number 18-18-010, is an add-on cage for the Jeep JK 4-door. It is written for the JK, which is the Wrangler (JK) from 2007 to 2018, and it bolts in to strengthen the existing roll bar around the driver and passenger area. The kit is made from CNC laser notched, NC bent DOM steel tubing and CNC laser cut 3/16 inch plate steel.
The cage is an add-on that bolts into a JK. The A-pillar bolts to the floor, the forward door post and the dash structure, so it is anchored at three points. When comparing cages, check that the tubing is DOM, meaning drawn over mandrel, rather than welded seam tubing.
Key features
- 1.75 inch by .120 wall DOM tubing, CNC laser notched and NC bent
- A-pillar of one 3/16 inch plate piece, extending to the floor
- A-pillar bolts to the floor, the forward door post and the dash structure
- 1/2 inch thick strengthening rib at the door post
- Heavy duty gusseting at the lower end of the A-pillar
- Works with all soft goods, factory and aftermarket tops
Preparing the Jeep for a cage
A roll cage shares load with the factory roll bar and the body, so the mounting points matter as much as the tubing. Work on a level surface and keep the kit’s parts sorted by location before starting. Before bolting anything, inspect the floor, door post and dash areas for rust, cracks or previous repairs. Solid metal at each mount gives the cage something solid to bear against in a rollover or hard side impact.
Bolt-in cages are often fitted alongside other roll-protection parts, such as a harness and a top that clears the cage. Check that the top and doors still clear the cage after installation. Recheck the torque on every bolt after the first few trail runs, since the cage can settle as the body flexes.
- Inspect floor and door post for rust
- Check top and door clearance
- Retorque bolts after early trips
Specifications
| Brand | Poison Spyder Customs |
|---|---|
| Part number | 18-18-010 |
| UPC | 614901727654 |
| Type | Bolt-together add-on cage |
| Finish | Bare steel |
| Tubing | 1.75 inch by .120 wall DOM |
| A-pillar | 3/16 inch one-piece to floor |
| Installation | Bolt in, no welding listed |
| Body style | 4-door |
Vehicle fitment
It fits the Jeep JK 4-door, which is the Wrangler (JK) from 2007 to 2018. Confirm your Jeep is a 4-door JK and check the mounting points against the vehicle before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The cage bolts in, so no welding is needed for this kit. The A-pillar bolts to three points, which is why the mounting hardware matters. Confirm the fit around the factory roll bar before tightening the final bolts.
What’s included
The bolt-together cage kit in bare steel with its tubing, the one-piece A-pillar and the mounting parts.
