Overview

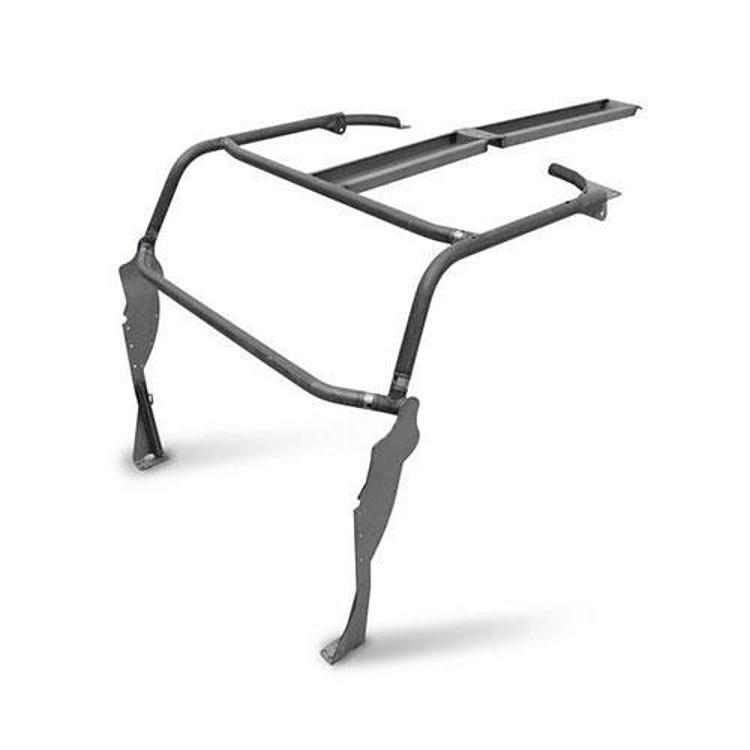

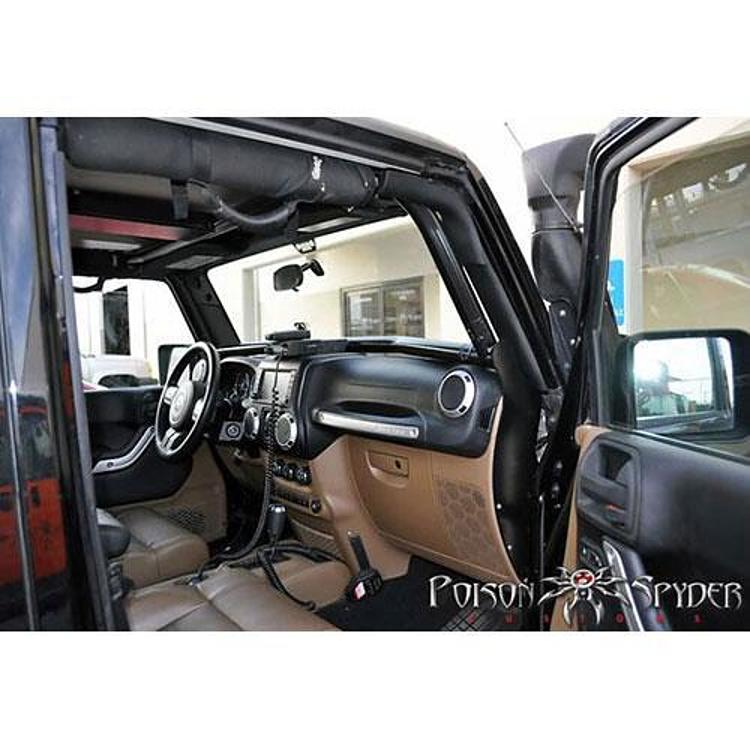

The Poison Spyder Trail Cage, bare steel, part number 18-18-015, is a bolt-in add-on cage for the Jeep JK 4-door, written for the Wrangler (JK) from 2007 to 2018. It strengthens the existing roll bar with DOM tubing and 3/16 inch plate steel components, so the cage stiffens the driver and passenger area without replacing the factory bar.

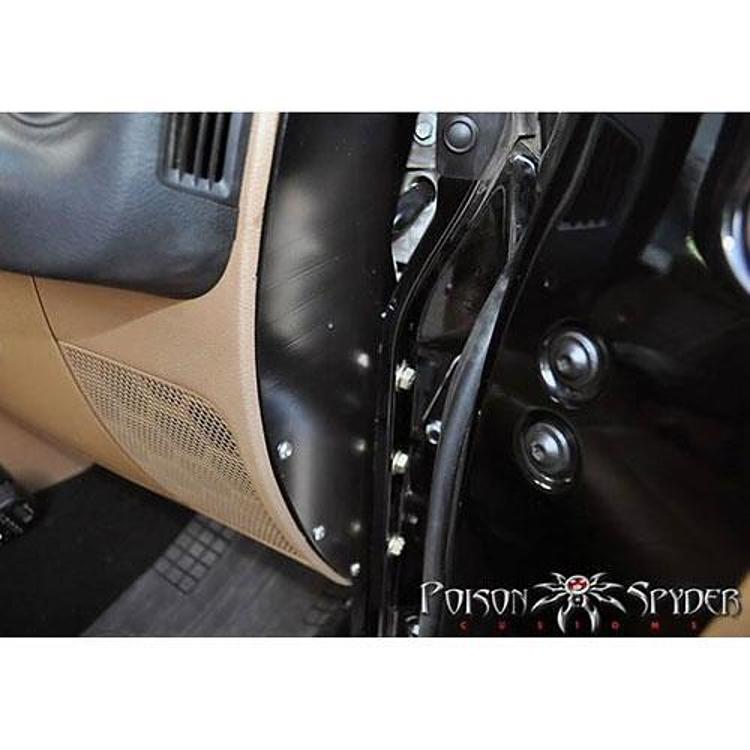

The A-pillar is a single 3/16 inch plate piece that runs all the way to the floor, and it hugs the contours of the dash. Its shape makes the most of the limited space at the A-pillar, so legroom and entry are not compromised. The grab handles are not part of this kit.
Key features
- One-piece 3/16 inch A-pillar running to the floor
- A-pillar bolts to the floor, the forward door post and the dash
- Strengthening rib of 1/2 inch thickness at the forward door post
- Lower A-pillar end fortified with heavy duty gusseting
- 1.75 inch by .120 wall DOM tubing, CNC laser notched and NC bent
- Works with all soft goods, factory and aftermarket tops
Roll protection basics
A cage stiffens the body around the occupants and gives the roll bar and body more rigidity under load. On a Jeep that sees rocks, ledges and rollovers, the cage works best when it is mounted solidly to the floor and the body structure, so the forces spread through the frame instead of the sheet metal.
Harnesses, seat mounts and the door area all interact with the cage. Check that seat belts and seat track movement are not restricted, and keep the cage clear of wiring and fuel lines. Padding on the cage where the head or arms may contact it helps reduce injury in a rough trail impact.
- Check bolt torque after the first few trail runs
- Inspect the mounting points for cracks or elongated holes
- Keep the top and doors fitted so the cage is not stressed by flex
Specifications
| Brand | Poison Spyder Customs |
|---|---|
| Part number | 18-18-015 |
| UPC | 614901727692 |
| Type | Bolt-in add-on cage |
| Finish | Bare steel |
| Tubing | 1.75 inch by .120 wall DOM |
| A-pillar | 3/16 inch one-piece to floor |
| Body style | 4-door |
| Grab handles | Not included |
Vehicle fitment
This cage is for the Jeep JK 4-door, which is the Wrangler (JK) from 2007 to 2018. Confirm your Jeep is a 4-door JK and that its floor, door post and dash mounting points line up with the cage before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The cage bolts in, so welding is not needed for this kit. The A-pillar mounting points at the floor, door post and dash are the critical connections, so take care when aligning them. Confirm the cage clears the seats and doors before tightening the final bolts. The A-pillar mounts at the floor, the door post and the dash, which means all three points need to line up. Grab handles are not part of this kit.

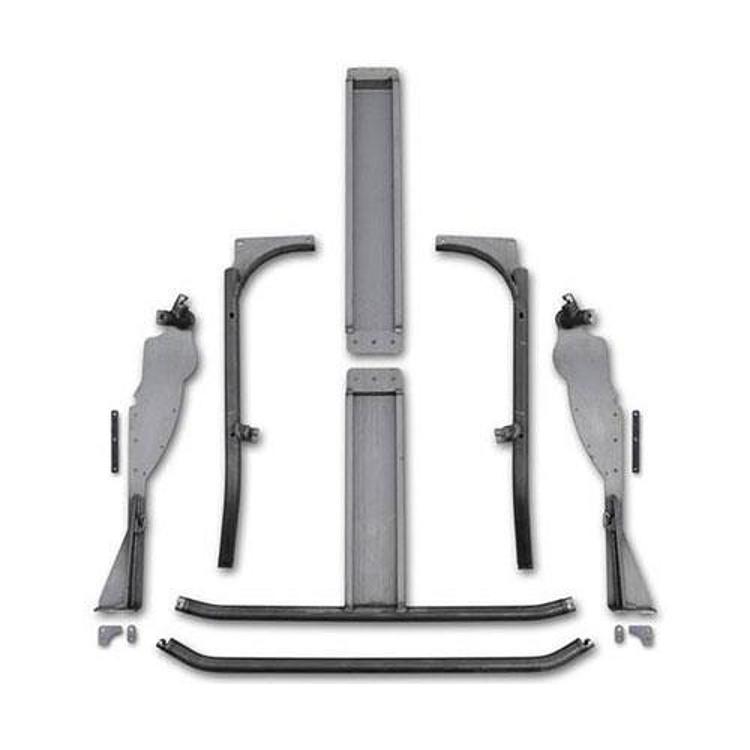

What’s included
The bolt-in cage kit in bare steel, with the one-piece A-pillar and mounting parts. Grab handles are not included.
