Overview
The Skyjacker LIB250K-H is a 2.5 inch Platinum Series linear coil system with Hydro shocks for the 2002-2007 Jeep Liberty KJ. It replaces the front strut with a Hydro shock and Softride coil, and adds full-height Softride coils with Hydro series rear shocks. It fits the Liberty in the 65th Anniversary Edition, Limited, Renegade, Rocky Mountain Edition and Sport trims.
The design is patent pending. It is a coilover-style setup that leaves the rack-and-pinion steering and the front and rear sway bars in their stock positions, which keeps steering response close to the factory setup. The maximum tire size is 31 x 10.50, allowing tires up to 31 inches.
Key features
- Patent pending Platinum Series linear coil system
- Hydro shock and Softride coil in the front
- Full-height Softride coils in the rear
- Hydro series rear shock absorbers
- Rack-and-pinion steering and sway bars left in the factory position
- No need to modify or replace the drive shafts
Linear coil system basics
A linear coil setup replaces parts of the front and rear suspension rather than adding a spacer, so the spring rate and shock valving are matched to the new height. Keeping the factory steering and sway bars in place limits how much the handling changes. The front strut swap still changes caster and camber, so an alignment after the install is part of the job.
Tire size should be chosen with the lift in mind. Larger tires add load to the front and rear coils and can rub on the fenders at full steering lock, so clearance should be checked after the install. Worn ball joints, tie rod ends and CV boots are worth inspecting while the front is apart, since they are commonly replaced during a lift.
- Alignment after strut replacement
- Tire rub checked at full lock
- Brake line length and routing checked
Specifications
| Brand | Skyjacker |
|---|---|
| Part number | LIB250K-H |
| UPC | 70000230235 |
| Lift | 2.5 inch |
| Suspension type | Coilover |
| Front components | Hydro shock and Softride coil |
| Rear components | Full-height Softride coils, Hydro series shocks |
| Maximum tire size | 31 x 10.50 (up to 31 inch tires) |
Vehicle fitment
It fits 2002-2007 Jeep Liberty KJ models in the 65th Anniversary Edition, Limited, Renegade, Rocky Mountain Edition and Sport trims. Other Liberty and Cherokee generations use different suspension parts and are not covered.
Other Liberty and Cherokee generations use different suspension parts and are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the front strut is replaced, check the front alignment and steering geometry after the install. The drive shafts do not need modification, but check the brake lines and front height before driving.
What’s included

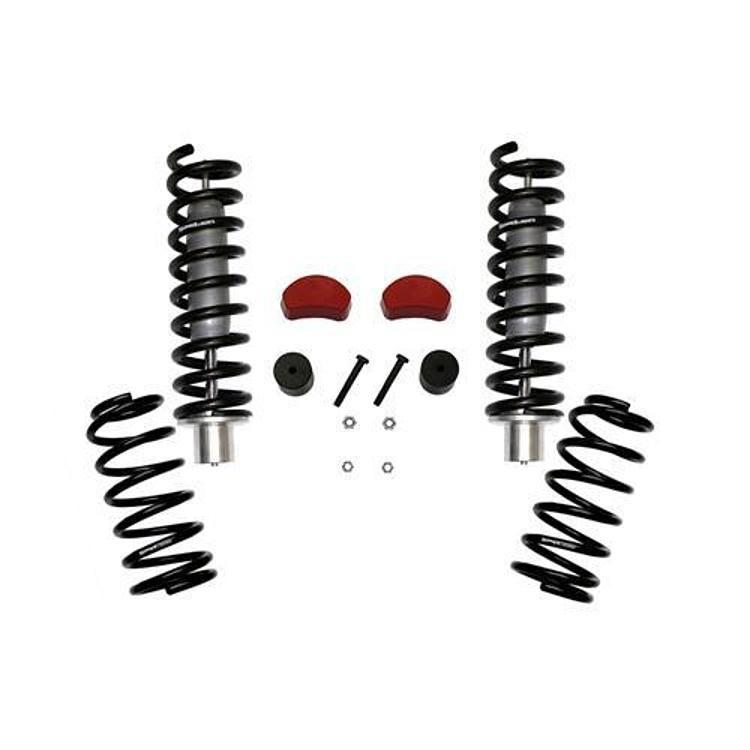

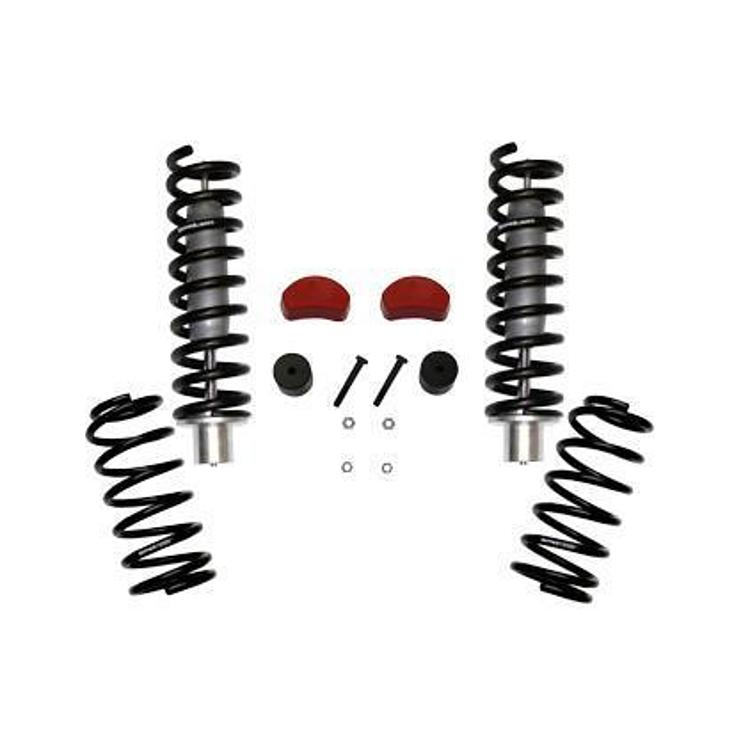

The kit includes the front Hydro shock and Softride coil, full-height Softride rear coils, and Hydro series rear shocks.
