Overview

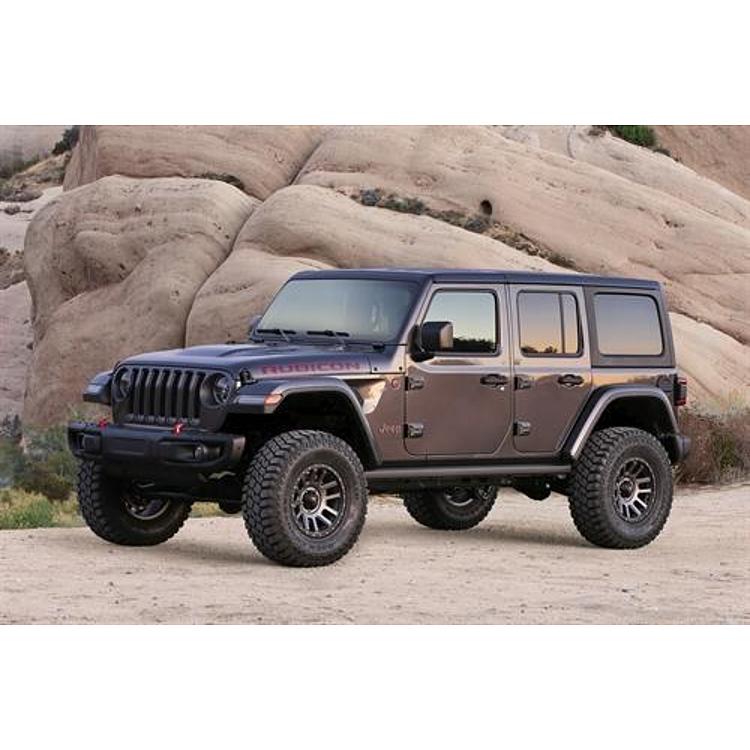

The Fabtech K4101DL is a 3 inch spacer system with Dirt Logic 2.25 non-reservoir shocks for the 2018 Jeep Wrangler JL Unlimited four-door, with the 3.6L V6 engine. The spacers lift the vehicle while the factory coil springs stay in place.
It is an entry level system for owners who want clearance for oversized tires while keeping the factory ride quality. It covers the front and rear coil spring spacers, bump stop extensions and sway bar links needed for the lift.
Key features
- Dirt Logic 2.25 non-reservoir shocks included
- Steel front and billet rear coil spring spacers
- Four bump stop extensions that limit travel within factory specifications
- Extended front and rear sway bar links with urethane bushings
- Heavy duty rear track bar bracket
- Standard fenders take 35 inch tires with minor trimming
Choosing a shock setup
The shock choice shapes how a spacer lift feels on rough ground. Non-reservoir shocks keep the body compact, which suits owners who want a simple, direct setup. Remote reservoir designs add a separate canister for extra fluid capacity, which helps with heat during long off road runs but takes more room to mount. Either way, the shock length should match the new ride height so travel is not used up too early.
Spacers hold the factory coil springs in place, so the spring rate stays the same as stock. That makes the truck feel familiar on pavement. Bump stop extensions and sway bar links help control travel and keep the suspension geometry in range. Inspect bushings and bump stops after rough trails and replace any that are split or flattened.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K4101DL |
| UPC | 700008517321 |
| Lift height range | 2 to 3 inches |
| Engine | 3.6L V6 |
| Front shocks | Dirt Logic 2.25 non-reservoir |
| Front spacer | Steel |
| Rear spacer | Billet |
This version uses the non-reservoir Dirt Logic 2.25 shock, one of four shock choices for this spacer system.
The extended sway bar links and the rear track bar bracket keep the suspension within the factory operating planes, and the bump stop extensions control travel within factory specifications.
The lift height range for this system is 2 to 3 inches.
The kit includes Dirt Logic 2.25 non-reservoir shocks.
Vehicle fitment
It covers the 2018 Jeep Wrangler JL Unlimited four-door models across the Unlimited trim levels. Two-door JL models are not included.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Standard fenders need minor trimming for 35 inch tires. High clearance fenders are needed for 37 inch tires, which need cutting for installation.

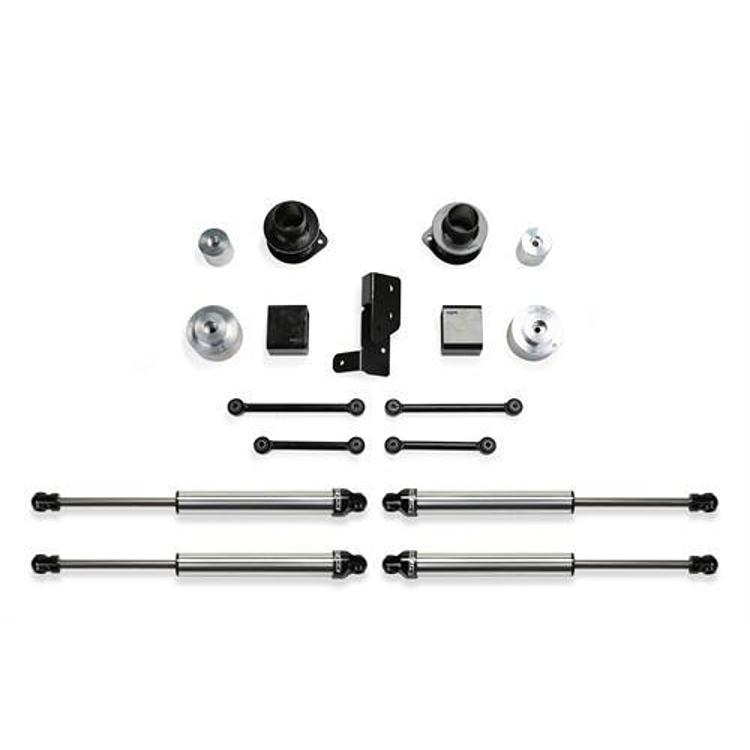

What’s included
Included: Dirt Logic 2.25 non-reservoir shocks, front and rear coil spring spacers, four bump stop extensions, sway bar links and the rear track bar bracket.
