Overview
The Pro Comp K4040BP is a 6-inch stage 2 lift that pairs radius arms and coil springs with a Pro Runner front shock. Fit covers 2005–2007 Ford F-250 Super Duty and F-350 Super Duty trucks, and the lift height range is 5 to 6.99 inches.
This is the Pro Runner version of the K4040B. The front uses coil springs and radius arms with sway bar links, bump stop extensions and brake line extension brackets, and the rear uses springs and U-bolts. A pitman arm corrects the steering.
Key features
- Stage 2 rated, 6-inch lift
- Pro Runner front shock
- Front coil springs with radius arms
- Front sway bar links and bump stop extensions
- Pitman arm steering correction
- Brake line extension brackets
Off-road use and upkeep
A Pro Runner front shock is a sensible match for a stage 2 setup where the truck sees mixed road and trail use. Shock damping helps control coil spring movement over washboard and washouts, and it reduces the body motion that can wear out steering joints. When the front is raised, keep the radius arms and their bushings in view, since they carry much of the braking and acceleration load.
Routine checks matter more with a stage 2 lift. Walk the front end after each outing and look for shock leaks, loose sway bar links and bump stop wear. Rear springs and U-bolts should be retightened after the first drives, and the brake lines should be checked for chafing. Recording what you find at each check makes it easier to catch trends before they affect steering or tire wear.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4040BP |
| UPC | 70000637841 |
| Lift | 6 inches, stage 2 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Radius arm |
| Front lift | Coil springs with radius arms |
| Rear lift | Springs and U-bolts |
| Steering correction | Pitman arm |
| Front shocks | Pro Runner |
Vehicle fitment
The fit covers 2005–2007 Ford F-250 Super Duty and F-350 Super Duty trucks. Model years beyond 2007 and before 2005 fall outside it.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Radius arms change the front axle location and caster, so set the alignment after the kit is fitted. Check the pitman arm steering centering, and recheck the U-bolts once the truck has been driven.
What’s included

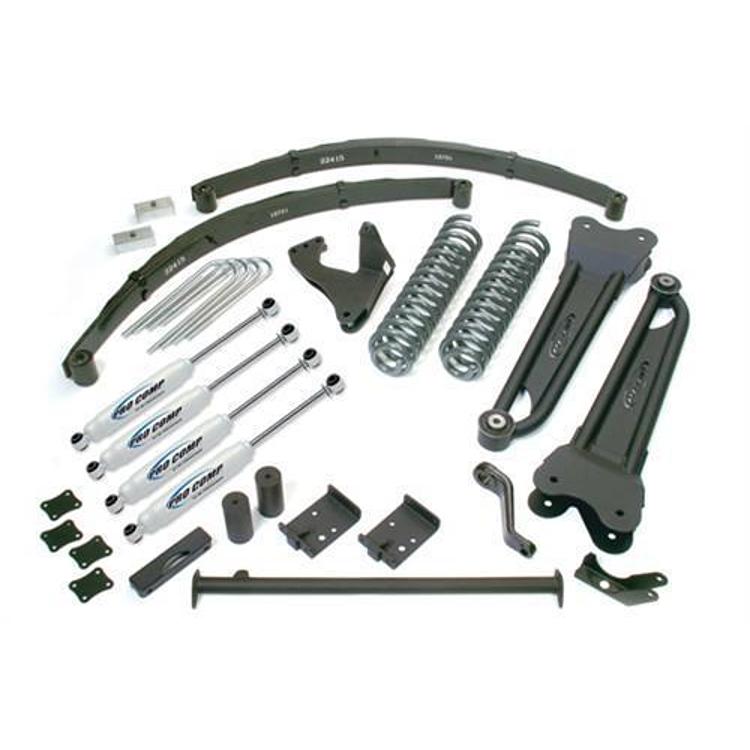

The kit includes front coil springs, radius arms, front sway bar links, bump stop extensions, a pitman arm, brake line extension brackets, rear springs and U-bolts, and a Pro Runner front shock.
