Overview
The Skyjacker TJ401BPH is a 4 inch suspension lift kit with Hydro 7000 shock absorbers for the 1997-2002 Jeep Wrangler TJ. It is a short arm system with front and rear coil springs and front and rear lower links, and it includes a transfer case lowering kit to correct the driveline angles at the higher height. It fits the SE, Sahara, Sport and X trims of the Wrangler TJ.
The spec sheet gives a lift height range of 3 to 4.99 inches. The kit is a complete system: the coils, lower links, bump stop spacers, track bar bracket and the drop pitman arm are supplied together, so the steering and axle geometry are set as a set.
Key features

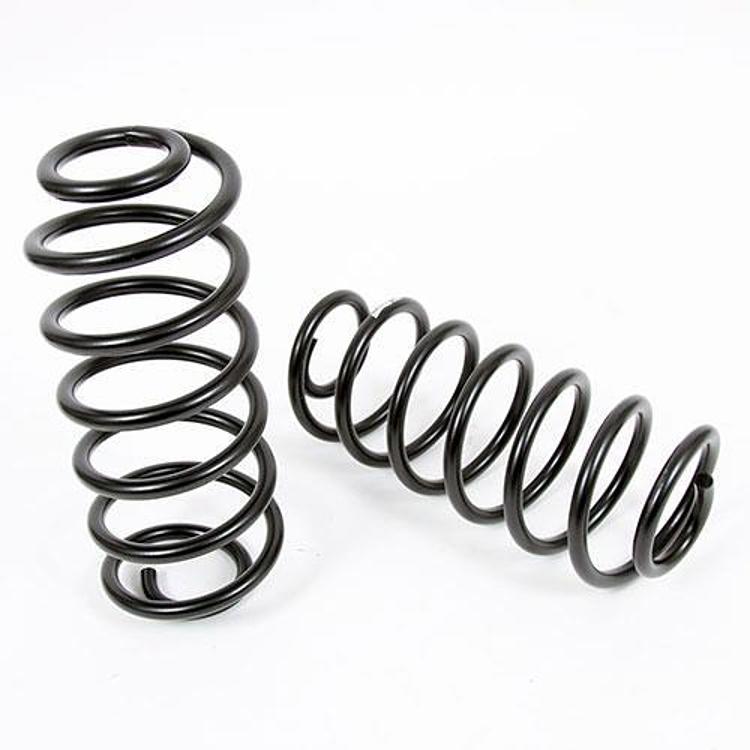

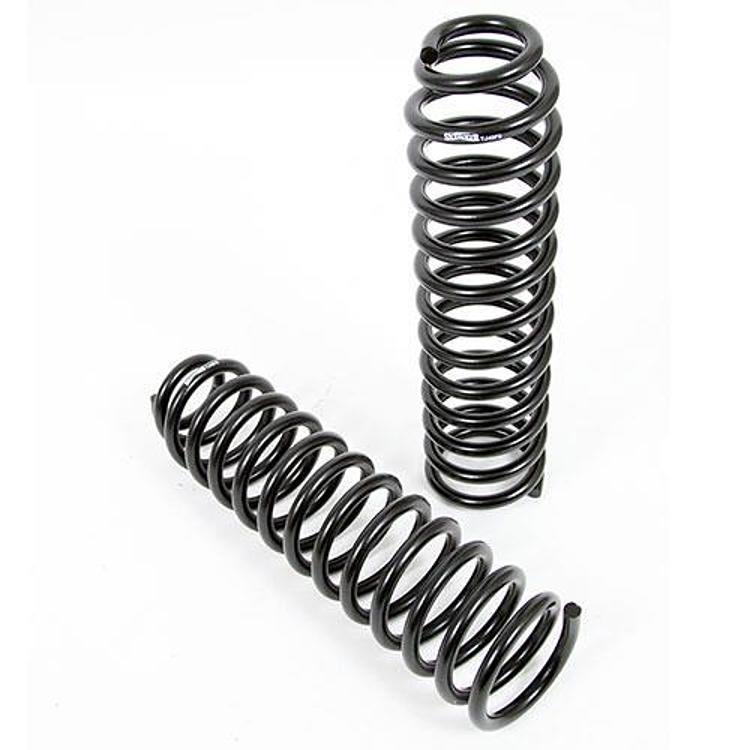

- Front and rear coil springs

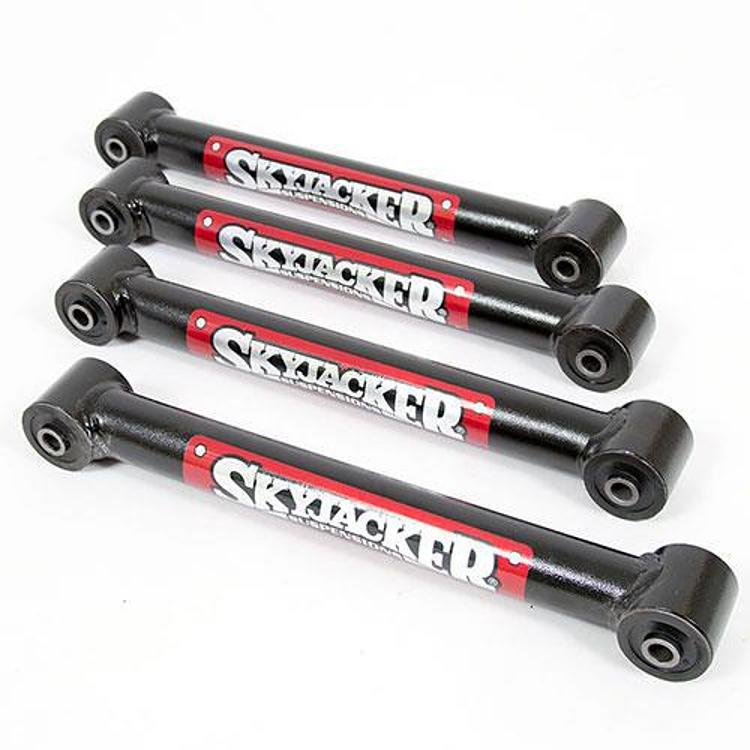

- Front and rear lower links
- Rear track bar bracket
- Drop pitman arm
- Transfer case lowering kit
- Front and rear extended sway bar end links
- Front and rear bump stop spacers

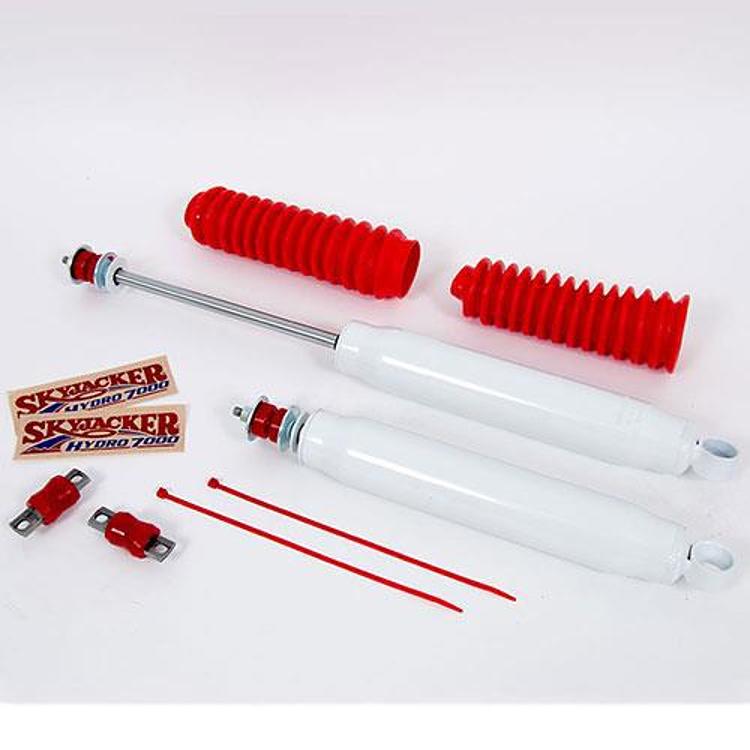

- Front and rear Hydro 7000 shock absorbers
Short arm lifts and driveline
A short arm system changes axle location and the way the springs carry load. On a TJ, lowering the transfer case and adding a drop pitman arm affects driveline angles and steering feel, so the geometry should be checked as a group rather than one part at a time. A higher ride height also raises the center of gravity, which is worth keeping in mind on steep side slopes.
Bigger tires and bumpers should be considered early, since they often push against clearance at the front fenders and the track bar. Sway bar end links and bump stops are commonly checked when a lift goes on. Inspect the lower link bushings, the track bar and the tie rod ends at regular service intervals for play or cracking.
- Check driveline angles after the transfer case drop
- Verify steering stop clearance after the drop pitman arm
- Inspect rubber bushings for cracks at service intervals
Specifications
| Brand | Skyjacker |
|---|---|
| Part number | TJ401BPH |
| UPC | 803696201566 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Short arm |
| Rear lift method | Coil springs |
| Shocks | Front and rear Hydro 7000 |
| Shocks included | Yes |
Vehicle fitment
It fits the 1997-2002 Jeep Wrangler (TJ) in the SE, Sahara, Sport and X trims.
The Wrangler LJ and the later JK and JL models use different parts and are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The transfer case lowering kit and the drop pitman arm change the driveline and steering geometry, so the install should include a driveline angle check and a steering alignment. Check the brake lines and the sway bar links after the lift is set.

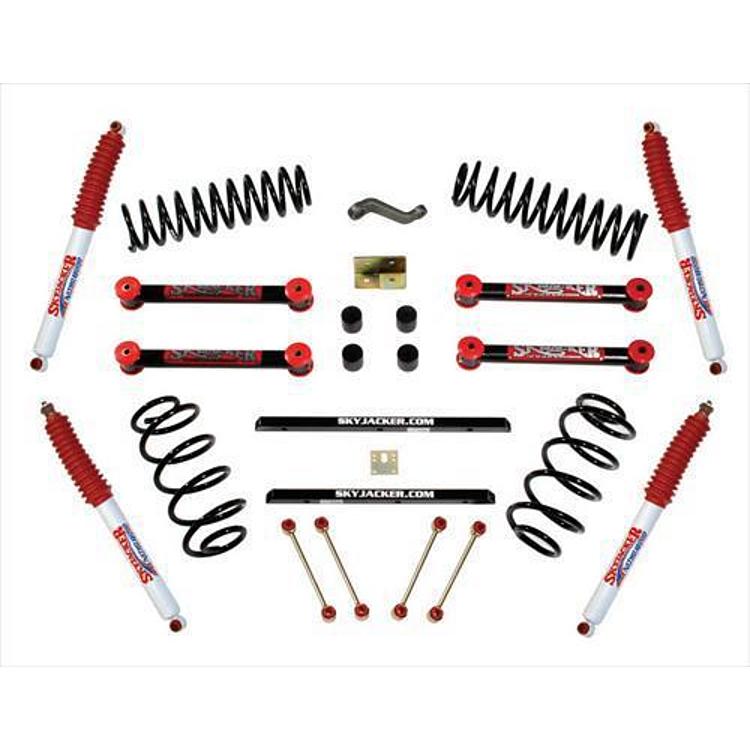

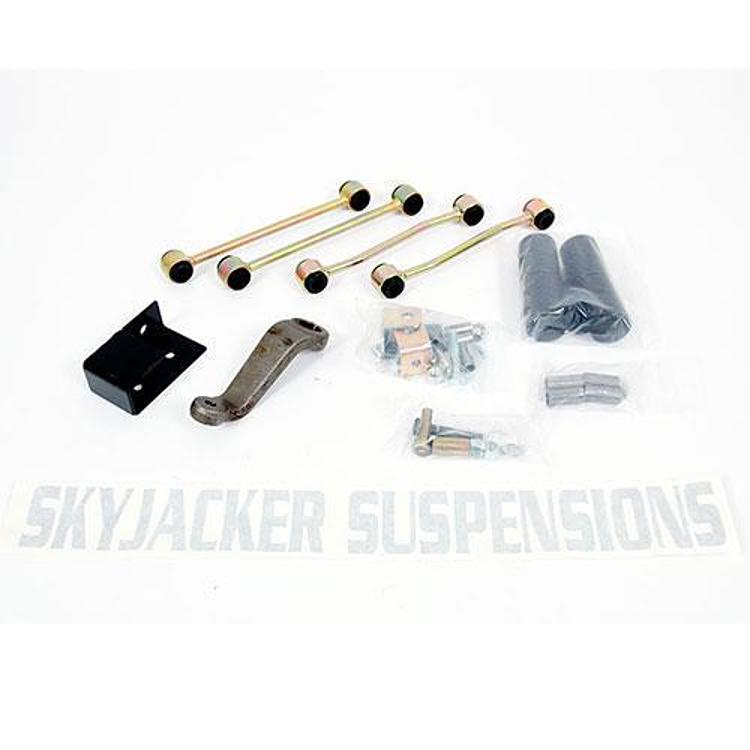

What’s included
The kit includes front and rear coil springs, front and rear lower links, a rear track bar bracket, a drop pitman arm, a transfer case lowering kit, front and rear extended sway bar end links, front and rear bump stop spacers and front and rear Hydro 7000 shock absorbers.
