Overview

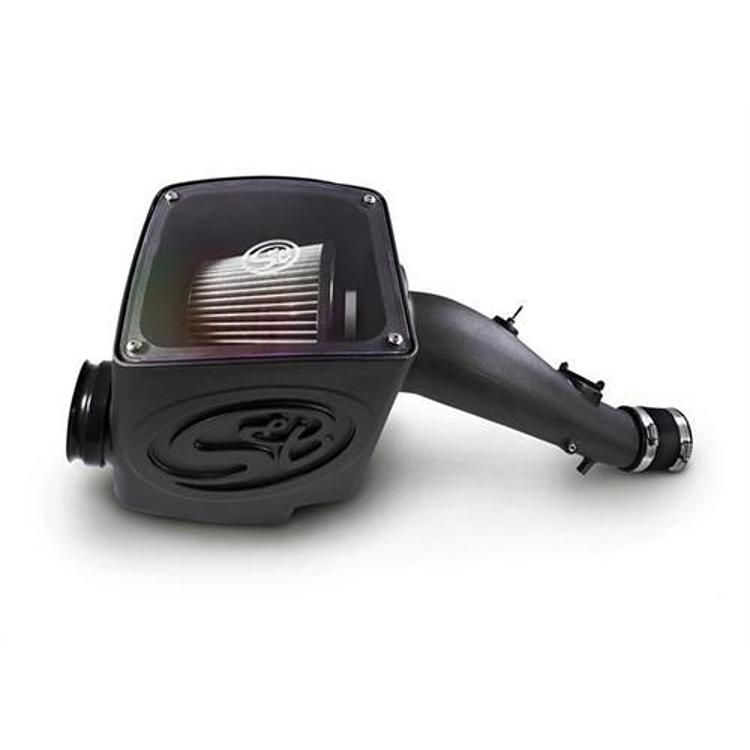

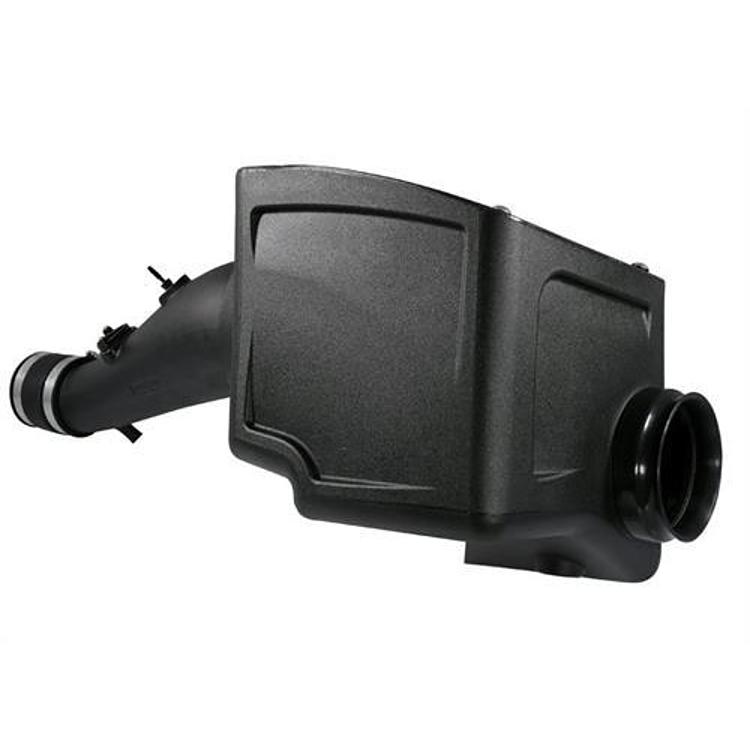

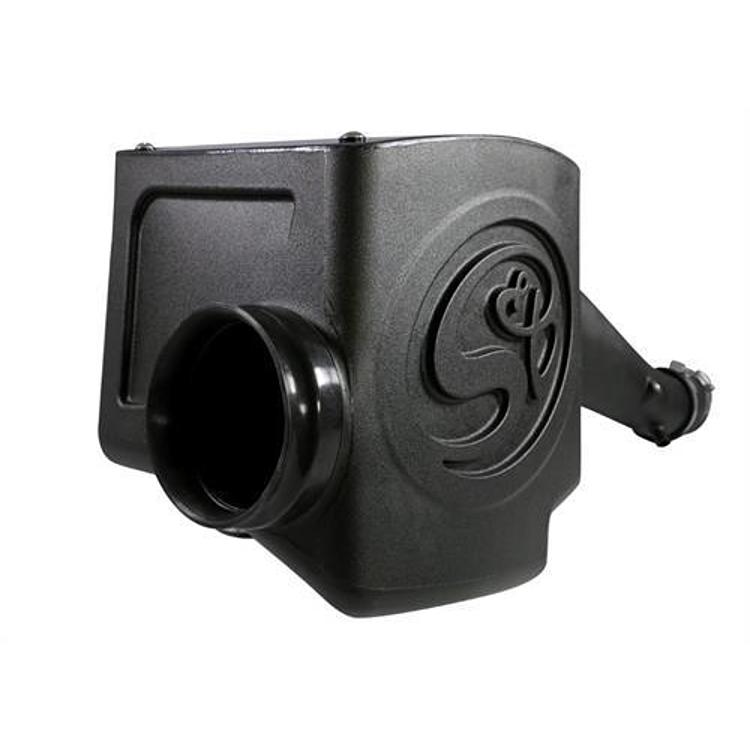

The S&B Filters 75-5100D is a cold air intake kit with a dry extendable filter for the 2012-2015 Toyota Tacoma with the 4.0L engine. A cold air intake is built to draw cooler air into the engine than a factory intake typically does, and this kit pairs a large airbox with a full enclosure filter housing.

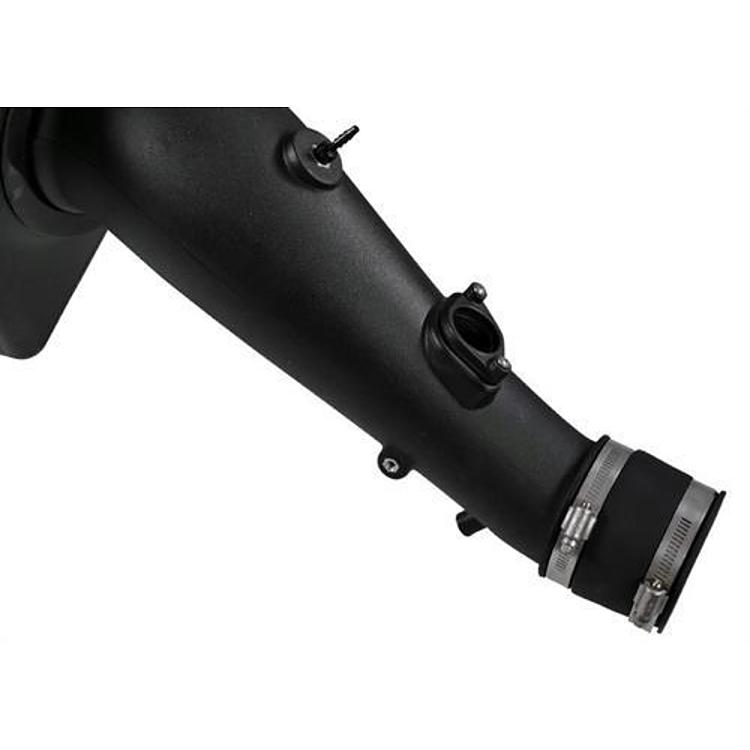

The airbox and filter improve airflow by 65.27% over stock, and the filtration efficiency is 99.66% at 294 CFM against ISO Coarse Dust. The intake tube runs through a silicone seal on the airbox that allows for engine movement while still sealing against engine heat. The kit runs on the stock calibration or with enhanced tuning and is designed to avoid check engine lights with a properly mapped mass air sensor.
Key features
- Dry extendable filter in a full enclosure housing.
- Large airbox and filter rated at 65.27% more airflow than the stock intake.
- Silicone tube seal on the airbox that accommodates engine movement and seals against engine heat.
- Runs on the stock calibration or with enhanced tuning.
- Cold air intake design with the inlet tube included.
After-install checks
After a cold air intake is installed, the most common problems are loose clamps, unseated tubes and a seal that has not fully engaged. Drive the truck gently for the first few miles, then check every connection by hand and listen for hissing or whistling at the tube joints. Rubber and silicone can shift slightly as the engine warms, so a recheck after the first few drives is sensible.
Keep the airbox lid and any fasteners secure at each oil change, and inspect the filter element at regular intervals. A dry element should be replaced rather than oiled, and it should be checked for holes or collapsed pleats before refitting. If the engine idles roughly after installation, check the intake tube seal first.
- Recheck clamps after the first few drives
- Listen for hissing at tube joints
- Inspect the silicone seal for cracks
Specifications
| Brand | S&B Filters |
|---|---|
| Part number | 75-5100D |
| Engine | 4.0L |
| Intake type | Cold air |
| Filter type | Dry, extendable |
| Filter housing type | Full enclosure |
| Airflow gain | 65.27% more than the stock intake |
| Filtration efficiency | 99.66% at 294 CFM (ISO Coarse Dust) |
| Inlet tube | Included |
| Fitment | Direct fit |
Vehicle fitment
The manufacturer fitment list covers the 2012-2015 Toyota Tacoma Base, Pre Runner, TRD Pro and X-Runner models with the 4.0L engine.
The list does not cover earlier Tacoma years or later Tacoma generations. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Installation takes less than 60 minutes. Seat the inlet tube fully in the silicone seal on the airbox during installation.
What’s included
The inlet tube is included. Check the package contents for the other parts before starting the install.
