Overview
The S&B Filters 75-5100 is an oiled cotton-filter cold air intake for the 2012–2015 Toyota Tacoma with the 4.0L engine. It fits the Base, Pre Runner, TRD Pro and X-Runner trims and uses the stock mounting positions.
The airbox and filter are sized to fill as much of the available space as possible while the design aims to minimize restriction. The filter is a red oil-colored cotton element. The airflow gain is listed at 66.57% over the stock intake, and the filter efficiency is 99.37% @ 294 CFM (ISO Coarse Dust).

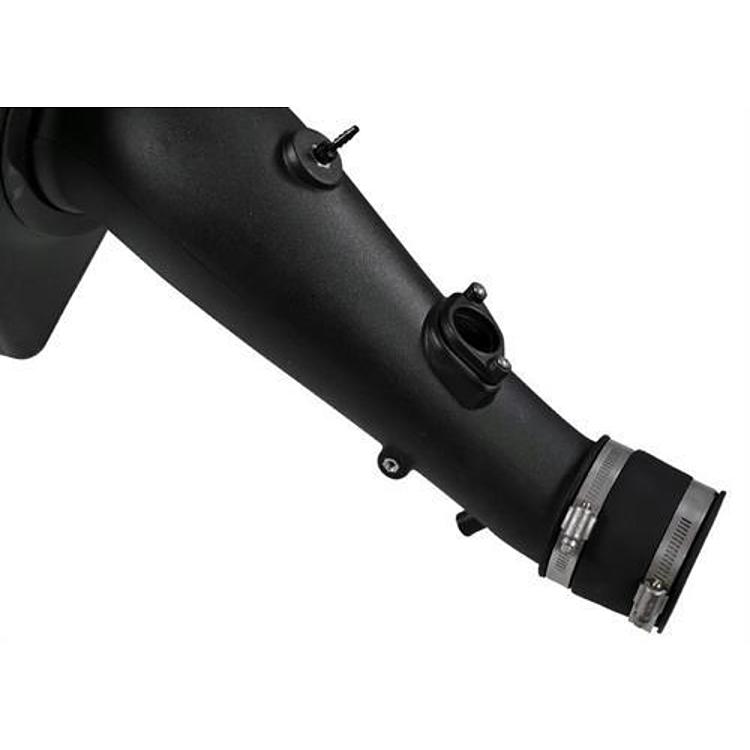

The intake tube passes through a silicone tube seal on the airbox. That seal allows for engine movement and still seals against engine heat.
The kit is designed to avoid check engine lights through a properly mapped Mass Air Sensor and runs with the stock calibration or with enhanced tuning. No tune is needed.
Key features
- Cotton oiled filter with red oil color
- Silicone tube seal on the airbox compensates for engine movement
- Mass Air Sensor design aimed at avoiding check engine lights
- Runs with the stock calibration or with enhanced tuning.
- Large airbox and filter for the 4.0L engine
- Cold air intake type with full enclosure housing
- Installation listed at less than 60 minutes
Mass air sensor and tuning basics
Modern engines measure incoming air with a mass air sensor and adjust fueling to match. When an intake changes the airflow path, a properly seated sensor and a clean filter help keep that reading accurate. Look for loose connections at the sensor when installing the intake, and keep the sensor clear of oil and dust. A check engine light is worth investigating rather than ignoring, since it may point to a leak or a loose clamp.
Tacoma owners who change other parts, such as exhaust or camshaft-related upgrades, should confirm the intake still seals properly with the new components. Engine movement can stress tube connections over time, so inspect them periodically. Keeping a record of what was installed and when makes diagnosing future symptoms simpler.
- Check the sensor connector seats fully
- Re-check clamps after the first few drives
- Note any warning lights and when they appear
Specifications
| Brand | S&B Filters |
|---|---|
| Part number | 75-5100 |
| UPC | 841372036958 |
| Engine | 4.0L |
| Airflow gain | 66.57% more than the stock intake |
| Filtration efficiency | 99.37% @ 294 CFM (ISO Coarse Dust) |
| Filter type | Oil (cotton) |
| Oil color | Red |
| Oil quantity | 90 grams on filter element; 10 grams on the power stack (TOP) for older versions of this filter |
| Filter housing | Full enclosure |
| Intake type | Cold air |
| Fitment type | Direct fit |
| Inlet tube | Included |
Vehicle fitment
The manufacturer fitment list covers the following vehicle for this kit:
- 2012–2015 Toyota Tacoma (Base, Pre Runner, TRD Pro, X-Runner)
Tacoma model years outside 2012–2015 are not covered. Verify the year, model and trim against your truck before ordering.
Installation notes
Check which filter version you have before oiling: the element takes 90 grams of oil, and an older version also needs 10 grams on the power stack (TOP). S&B rates installation at less than 60 minutes. Disconnect the battery before starting work under the hood.
What’s included
The inlet tube is included. Confirm whether oil comes with the kit before installing.
