Rugged Ridge Jesse Spade 17x9 Wheel with 5 on 5 Bolt Pattern – Satin Gun Metal – 15303.92

Rugged Ridge

Shop Rugged Ridge Wheels 17x9 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rugged Ridge Jesse Spade 17×9 split spoke wheel, part number RUG15303.92
  • 5 on 5 bolt pattern, -12 mm offset, 4.53 inch backspacing
  • 71.5 mm center bore, hub-centric design
  • Satin gun metal finish with valve stem pockets

Description

Overview

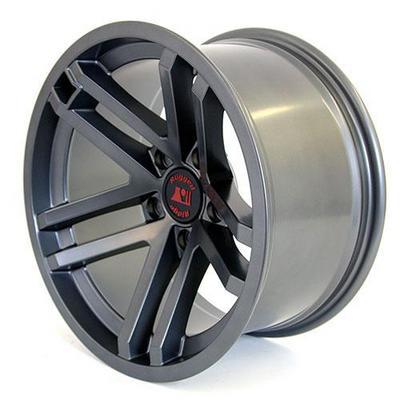

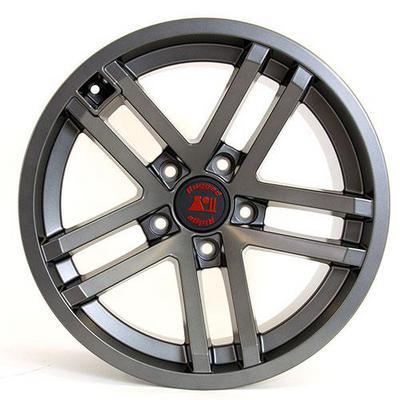

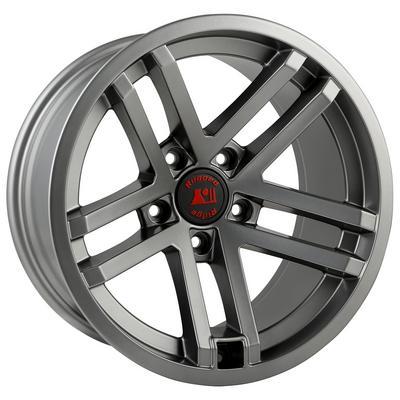

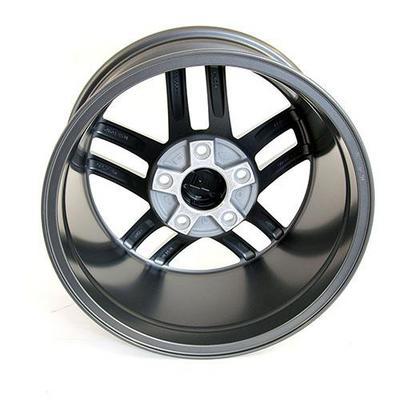

The Rugged Ridge Jesse Spade is a 17×9 split spoke aluminum wheel, part number RUG15303.92, in a satin gun metal finish with a 5 on 5 bolt pattern. It is hub-centric, so the center bore centers the wheel on the hub. It has a 17 inch diameter, 9 inch width, -12 mm offset, 4.53 inch backspacing and a 71.5 mm center bore.

The wheel is styled for a sporty fit and built to handle the demands of a Jeep. Exclusive valve stem pockets help protect the valve stem from off-road damage. No vehicle is named and the wheel is universal fit, so check the bolt pattern, offset, backspacing and center bore against your own hub before fitting.

Key features

  • Split spoke design in a satin gun metal finish
  • Hub-centric, with a 71.5 mm center bore

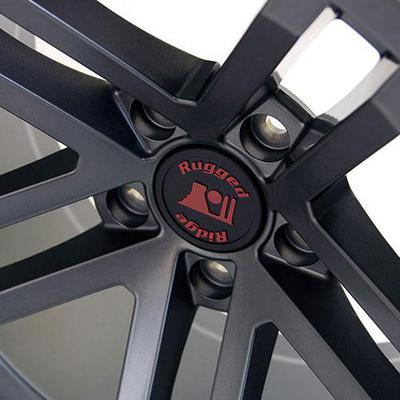

  • Exclusive valve stem pockets that protect the valve stem from off-road damage, per the brand
  • 17 inch diameter and 9 inch width
  • 5 on 5 bolt pattern (5X5 inch) with -12 mm offset
  • Aluminum construction

Hub-centric fit and centering

A hub-centric wheel relies on its center bore to sit square on the hub, so the bore and the hub hub-face matter more than the bolts alone. The bolts clamp the wheel in place, but the bore does the centering. A wheel that is off center can cause vibration and uneven lug loading.

Split spoke designs have more open areas than solid faces, so dirt and grit can collect between the spokes and the barrel. Clean the inner barrel and the hub face before mounting, and check the valve stem and pocket for debris after trail use. Inspect the lip for dents after rocks or tree strikes.

  • Clean the hub face before mounting
  • Check valve stem pockets for debris
  • Inspect the lip after trail use

Specifications

Brand Rugged Ridge
Part number RUG15303.92
Series Jesse Spade
Style Split Spoke
Wheel diameter 17 inches
Wheel width 9 inches
Bolt pattern 5 on 5 (5X5 inch)
Offset -12 mm
Backspacing 4.53 inch
Center bore 71.5 mm
Finish Satin gun metal
Construction Aluminum

Vehicle fitment

No vehicle fitment is named for this wheel. Its hub-centric bore and -12 mm offset must match your vehicle’s hub and clearance, so check those values for your model before fitting. The wheel is universal fit, meaning it is not built for one vehicle.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Hub-centric wheels depend on the center bore, so confirm the 71.5 mm bore matches your hub. Check brake caliper and suspension clearance with the -12 mm offset and 4.53 inch backspacing.

What’s included

The valve stem pockets are built into the wheel design. Confirm lug nuts and a center cap that suit your hub before mounting.

SKU: RUG15303.92 Categories: ,

Questions & Answers

What bolt pattern and offset does it have?

It has a 5 on 5 bolt pattern, written 5X5 inch, and a -12 mm offset. The brand lists 4.53 inch backspacing and a 71.5 mm center bore. No load rating is stated.

Is the wheel hub-centric?

Yes. The Jesse Spade is hub-centric with a 71.5 mm center bore, which centers the wheel over the hub. Confirm the bore matches your vehicle's hub before fitting.

What finish does it come in?

The finish is satin gun metal. The wheel has valve stem pockets built in, which help protect the valve stem from off-road damage.

Does it fit my Jeep?

No vehicle is named, and the wheel is marked universal fit. Check the bolt pattern, offset and center bore against your vehicle's hub and clearance before using it.

What is the difference between hub-centric and lug-centric wheels?

A hub-centric wheel is located by its center bore on the hub, while a lug-centric wheel is located only by its lug nuts. Hub-centric wheels usually run smoother, so check the bore against the hub before mounting.
