Overview
The Rubicon Express 5.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Track Bar with Mono Tube Shocks (part number RE7215M) is a long arm lift for the Jeep TJ, with a lift height range of 5 to 6.99 inches. Mono tube shocks are included in the kit.
This long arm design was first offered for the TJ, using longer control arms that add stability, reduce torque roll and help traction on the trail.
The kit includes mono tube shocks and front and rear stainless brake lines, both of which matter at the 5 to 6.99 inch lift range. The adjustable control arms and tuned lift springs are the main suspension changes, so confirm the shock and spring pairing with Rubicon Express before the install.
Key features
- Mono tube shocks included
- Chromoly long control arms
- PT-Meg Super-Ride bushings
- Adjustable control arms with Super-Flex spherical ball joints
- Tuned lift springs
- Front and rear stainless brake lines included
- Rear track bar and three-piece belly pan
Brake lines at higher lift
At a higher lift, the brake hoses have to reach a wider geometry, so routing and length deserve a close look. Lines that run tight at ride height can stretch or chafe during articulation. Stainless lines are generally more resistant to abrasion than rubber hoses, which makes them a common upgrade when a lift is large.
Look over the lines, clamps and fittings after each trail outing for scuffs, kinks or seepage. Check that the lines clear the control arms and the frame at full compression and full droop. Mono tube shocks and tuned springs also change ride height, so recheck brake line clearance after any spring or shock swap.
- Routing clear of moving parts
- Clamps and brackets snug
- Fittings free of seepage
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7215M |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Extreme-Duty long arm |
| Shock absorbers | Mono tube, included |
| Brake lines | Front and rear stainless |
| Fitment type | Direct fit |
Vehicle fitment
It fits 1997–2006 Jeep Wrangler (TJ) models, with fitment not narrowed by trim.
The LJ and the JK and JL Wranglers are not covered by this kit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
At a 5 to 6.99 inch lift, check the driveline angles, the steering linkage and the brake hose lengths after installation. The mono tube shocks should be checked against the new ride height.
What’s included

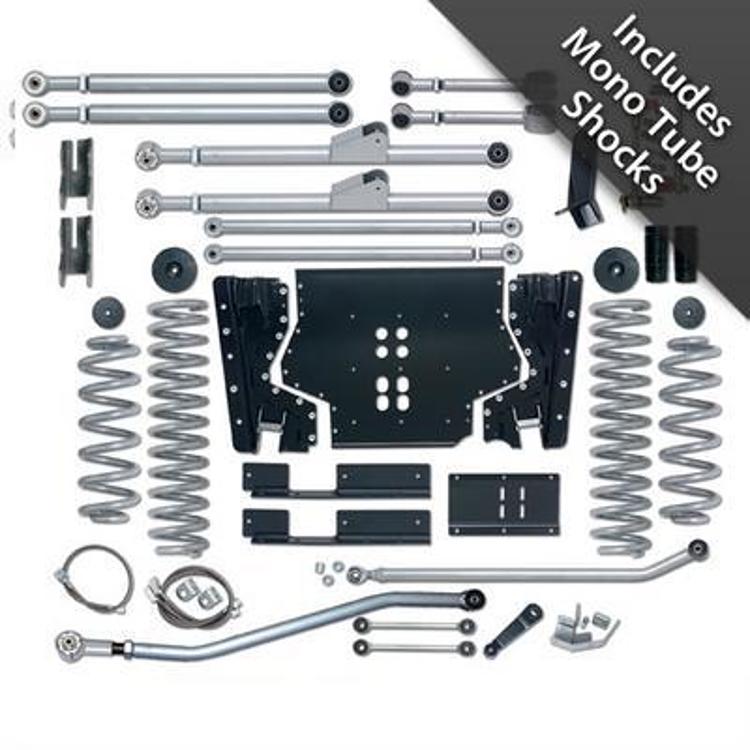

Mono tube shocks, a rear track bar, tuned lift springs, chromoly long arms, PT-Meg bushings, Super-Flex spherical ball joints, stainless brake lines and a belly pan.
