Overview
The Rubicon Express JT7140 is a 2.5/3.5 inch Super-Flex suspension lift kit for the 2020–2026 Jeep Gladiator JT. It is a short arm system with coil springs at the rear, and its fitment covers the Gladiator JT trims.
The Super-Flex system keeps the factory mounting locations. It includes new adjustable upper and lower control arms at the front and rear, with serviceable Super-Flex spherical ball joints.
The lift height range is 0 to 3.5 inches, and the tire size is 35 inches. The Super-Flex system is designed for ride quality and performance, and shocks are not included with this part number.
Key features

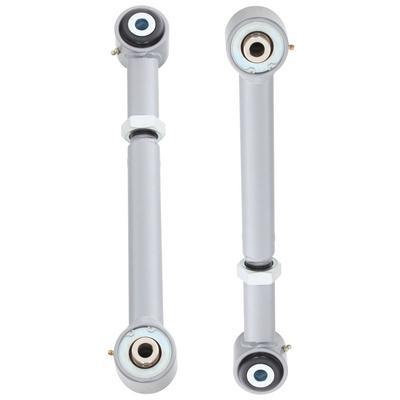

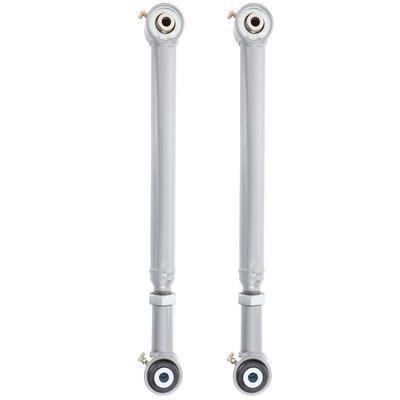

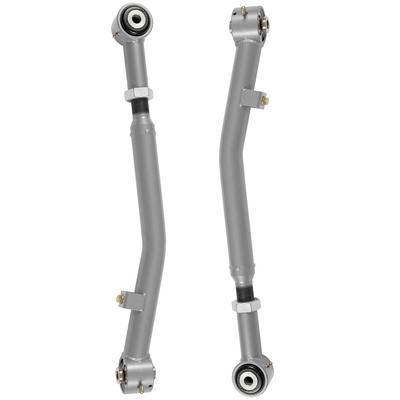

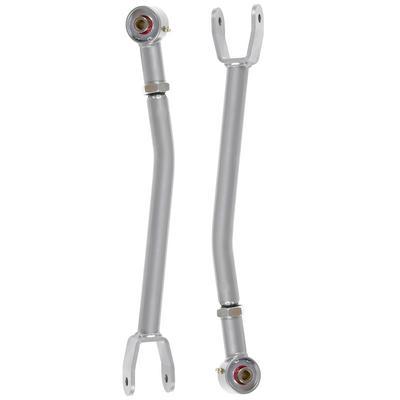

- New adjustable upper and lower control arms at the front and rear
- Serviceable Super-Flex spherical ball joints

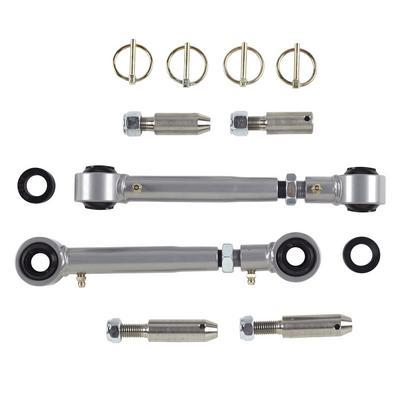

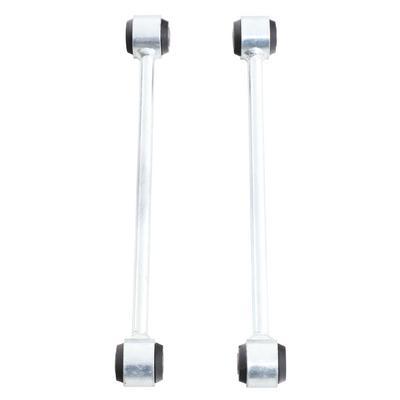

- Front sway bar disconnects

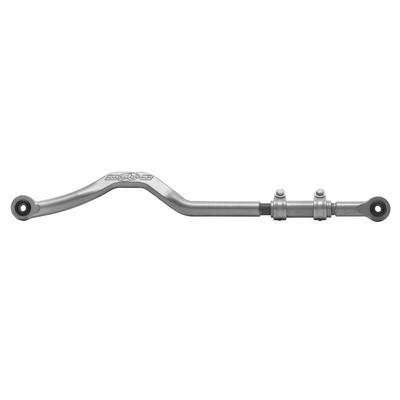

- Forged front adjustable track bar

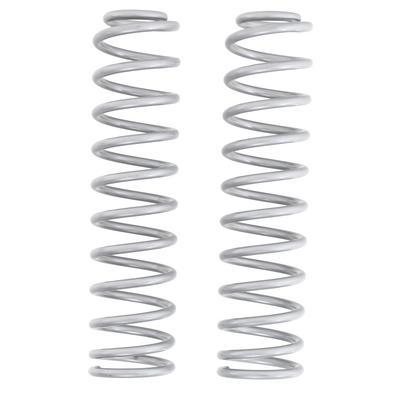

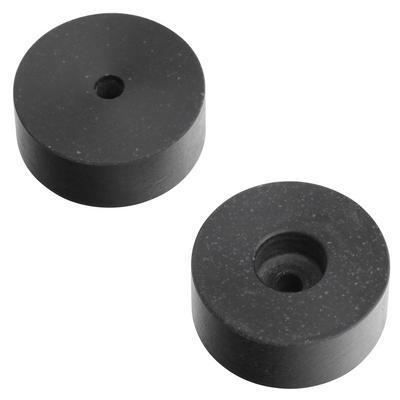

- Replacement coil springs and extended bump stops
Ball joints and control arm service
Control arms carry the axle location and absorb the forces of braking and acceleration, so their bushings and ball joints need regular checks. Spherical ball joints allow more articulation than standard units, which helps on uneven ground but also places more demand on grease fittings and boot seals. Keep the joints greased at the intervals in your maintenance routine, and replace torn boots promptly to keep grit out.
Adjustable arms set the front geometry, so caster and toe can change with each adjustment. Recheck the alignment after any arm or track bar change, and recheck the track bar setting after a tire change. Because the factory mounting points remain in use, inspect the frame brackets for cracks or fatigue after rough off-road use.
- Check ball joint boots for tears
- Recheck toe after any adjustment
- Inspect frame brackets after hard use
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | R/EJT7140 (JT7140) |
| Kit type | Super-Flex short arm suspension lift kit |
| Lift height range | 0 to 3.5 inches |
| Tire size | 35 inches |
| Rear lift method | Coil springs |
| Rear lift component | Coil spring |
| Shocks included | No |
| Fitment type | Direct fit |
Vehicle fitment
The kit fits the 2020–2026 Jeep Gladiator in the 80th Anniversary, High Altitude, Launch Edition, Mojave, Overland, Rubicon, Sport, Sport S, Willys and Willys Sport trims.
This kit covers the 2020–2026 Gladiator JT. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
New control arms and a forged track bar change the front geometry, so a full alignment is needed after the install. Shocks are not included, so their length should be checked against the new ride height.
What’s included

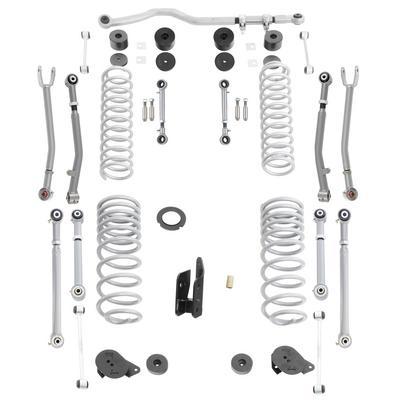

The kit includes adjustable upper and lower control arms, Super-Flex spherical ball joints, front sway bar disconnects, a forged front adjustable track bar, replacement coil springs and extended bump stops.
Not included: shocks.
