Overview
The Rubicon Express JK4445 is a 5.5-inch extreme-duty 4-link long arm lift kit with no shocks. It belongs to Rubicon Express’s JK suspension line and uses adjustable chromoly upper and lower control arms with Super-Flex spherical ball joints. PT-Meg Super-Ride bushings complete the arm set, and a full-width transmission crossmember adds structure at the drivetrain mounts.
The system is built for control and performance without limiting articulation. Installation does not require welding. The full-width crossmember adds durability and frame rigidity. Optional high-performance monotube shocks, belly pan and CNC-machined steering knuckle upgrades are available. The 5.5-inch height falls within the 5 to 6.99-inch lift range.
Key features
- 5.5-inch lift height, within the 5 to 6.99-inch range
- Extreme-duty 4-link long arm system with a 4-link rear lift method
- Adjustable chromoly upper and lower control arms
- Super-Flex spherical ball joints
- PT-Meg Super-Ride bushings
- Full-width transmission crossmember
- Designed for installation without welding
- Optional monotube shocks, belly pan and steering knuckle
Choosing shocks for the arm set
A kit without shocks leaves the damping choice to the owner, so consider shock length, travel and mount style before buying. Arm geometry changes suspension travel, so a shock that worked before the lift may be too short or compressed. Check that the upper and lower mounts clear the frame, axle and brake lines through full travel.
Shock selection often goes together with bump stop decisions. Bump stops limit travel and protect the arms at full compression, and a worn or missing stop can allow the arms to bend in a hard hit. Inspect the shock mounts, bushings and hardware at each service, and replace any worn part before a long trail trip.
- Confirm shock length for the taller height before ordering
- Check upper and lower mount clearance through full travel
- Inspect bump stops for wear or cracks
- Look for leaks or oil residue on shock bodies
- Replace shocks in pairs for even damping
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | JK4445 |
| UPC | 70000651251 |
| System type | Extreme-duty 4-link long arm |
| Lift height | 5.5 inches (chart range 5 to 6.99 inches) |
| Rear lift method | 4-link |
| Control arms | Chromoly upper and lower, adjustable |
| Joints | Super-Flex spherical ball joints |
| Bushings | PT-Meg Super-Ride |
| Shocks | Not included |
Vehicle fitment
The kit belongs to the JK suspension line. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 5.5-inch 4-link conversion changes control arm angles and pinion geometry. Have the alignment and driveline angles checked once the kit is installed.
What’s included

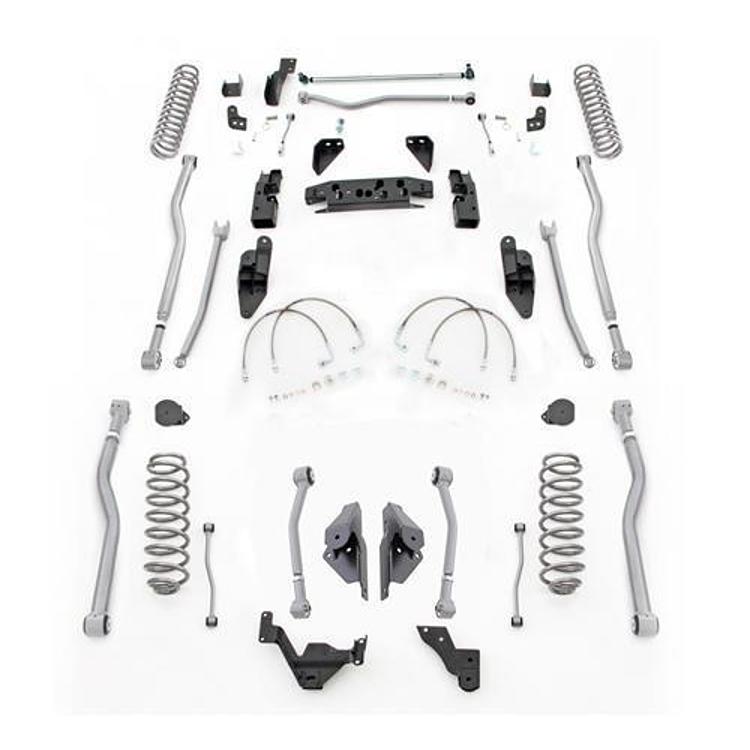

The core parts are the adjustable chromoly control arms, Super-Flex spherical ball joints, PT-Meg Super-Ride bushings and the full-width transmission crossmember.
Not included: shock absorbers.
The chromoly control arms and Super-Flex joints are adjustable and serviceable. The rear uses a 4-link, so the rear arms are a separate set from the front arms, and the full-width crossmember ties the drivetrain mounts together.
