Rubicon Express 4.5 Inch Extreme-Duty Leaf Spring Lift Kit with Twin Tube Shocks – RE5520T

Rubicon Express

Shop Jeep Wrangler YJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4.5-inch Extreme-Duty leaf spring lift kit with twin tube shocks, for 1987–1995 Jeep Wrangler YJ
  • Greaseable shackles and main eye bushings
  • Sway bar disconnects, drop Pitman arm, stainless steel brake lines
  • Part number RE5520T, rated for 33-inch tires

Description

Overview

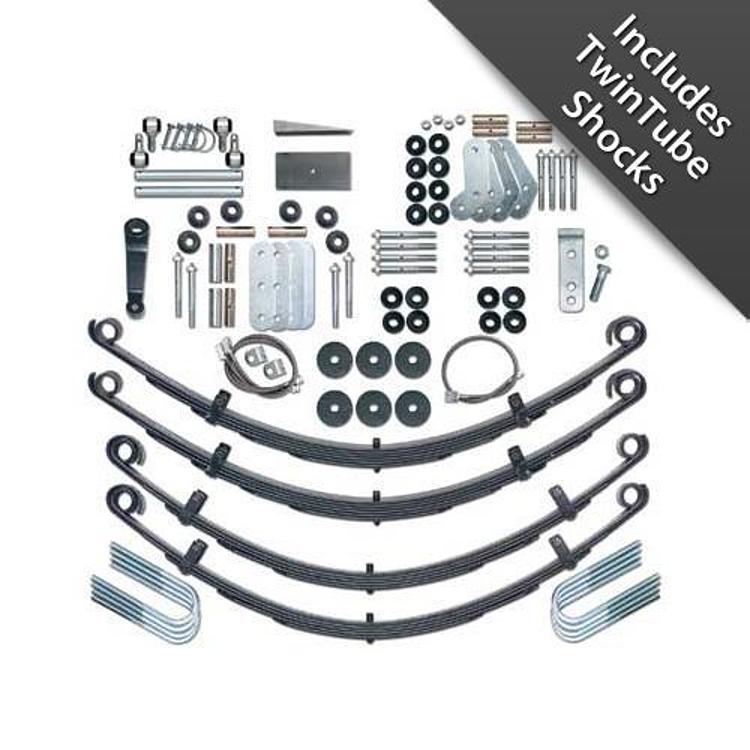

The Rubicon Express RE5520T is a 4.5-inch Extreme-Duty leaf spring lift kit with twin tube shocks for the 1987–1995 Jeep Wrangler YJ. It is built for owners who want a larger increase in ground and tire clearance and more articulation. The kit is rated for a 3 to 4.99-inch lift range.

The Extreme-Duty leaf springs are designed to be durable and flexible, with good ride quality. Greaseable shackles, main eye bushings, stainless steel brake lines, sway bar disconnects and a drop Pitman arm are included. The system keeps the classic YJ ride while allowing 33-inch tires, and a 1-inch body lift allows 35-inch tires.

Twin tube shocks are the alternate shock option for the same Extreme-Duty package. The kit is a 4.5-inch model with a rated lift range of 3 to 4.99 inches, so confirm the expected lift before ordering.

Key features

  • Extreme-Duty leaf springs
  • Twin tube shocks included
  • Greaseable shackles and main eye bushings
  • Stainless steel brake lines
  • Sway bar disconnects and drop Pitman arm

Driveline changes after a lift

A lift raises the axle relative to the transfer case, which changes driveshaft angles. Operating angles that are too steep can cause vibration and wear in the joints, especially at highway speed. Driveshaft work is often part of a leaf spring lift for that reason, and it is best planned before the install starts.

Check that the driveshaft is compatible with your transfer case and axle setup before ordering. Inspect the U-joints and slip yoke for wear, and grease them if the design allows. Vibration after installation can be a sign the pinion angle needs attention. Recheck the driveline after the first few drives and after each tire size change. Keep the old driveshaft parts until the new setup is confirmed.

Specifications

Brand Rubicon Express
Part number RE5520T
Suspension type Extreme-Duty leaf spring
Lift height range 3 to 4.99 inches
Shocks Twin tube, included
Rear lift method Leaf springs
UPC 614901452617
Fitment type Direct fit

Vehicle fitment

Fits the 1987–1995 Jeep Wrangler YJ as a direct fit in Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims.

Wrangler TJ, LJ and JK models are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A SYE and CV driveshaft must be installed with this kit.

SKU: R/ERE5520T Category:

Specification

Shipping weight 226.30 lbs
Package dimensions 48.00 × 6.00 × 6.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (YJ)1987–1995Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RE5520T include shocks?

Yes. The kit includes twin tube shocks as part of the package. It also includes Extreme-Duty leaf springs, greaseable shackles and stainless steel brake lines.

Will the RE5520T fit a 1992 Jeep Wrangler YJ?

Yes. The 1987–1995 Jeep Wrangler YJ is covered, so a 1992 YJ falls within those years. Check the trim against your vehicle before buying.

Does the RE5520T need a new driveshaft?

Yes. A SYE and CV driveshaft is required with this kit. Installing it is part of the upgrade for the 4.5-inch lift.

What does a SYE and CV driveshaft do on a lifted YJ?

A slip yoke eliminator style driveshaft with a CV joint is built to handle the changed driveline angles after a lift. Check that it matches your transfer case and axle setup before ordering, and inspect the joints after installation.
