Rubicon Express 3.5 Inch Extreme Duty Radius Front/Rear 4-Link Long Arm Lift Kit with Mono-Tube Shocks – JKR443M

Rubicon Express

Shop Rubicon Express Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5-inch lift from a radius front and 4-link rear long arm system
  • Extreme-duty chromoly upper and lower control arms with adjustable settings
  • Super-Flex spherical ball joints and PT-Meg Super-Ride bushings
  • Full-width transmission crossmember; installs without welding
  • Confirm fit for your vehicle’s year, model and trim before ordering

Description

Overview

The Rubicon Express JKR443M is a 3.5-inch lift kit that combines a radius-arm front end with a 4-link long arm rear, offered within Rubicon Express’s JK suspension range. Its chromoly upper and lower control arms are adjustable, and they use Super-Flex spherical ball joints and PT-Meg Super-Ride bushings to keep the suspension flexible off-road.

Rubicon Express positions the radius front and rear 4-link design for owners who want more control under load without giving up articulation. The title for this part lists Mono-Tube shocks, so the kit is the version that includes that shock package. The product lists no model years, so confirm fitment before you order.

Key features

  • 3.5-inch lift height, within the 3 to 4.99-inch range
  • Radius front and 4-link rear long arm system
  • Adjustable chromoly upper and lower control arms
  • Super-Flex spherical ball joints for articulation
  • PT-Meg Super-Ride bushings
  • Full-width transmission crossmember for frame rigidity
  • Installs without welding
  • Optional belly pan and CNC-machined steering knuckle upgrades

Radius arm geometry basics

Radius arms control the axle’s fore-aft position and carry braking and acceleration forces into the frame, so they take more load than a simple link. Pairing them with a 4-link rear is a common approach for owners who want control under load while keeping the wheels able to move. The geometry sets pinion angle and steering behavior, which is why a radius front is usually followed by a check of the drive angles.

Shock choice matters on this layout because the shocks work with the control arms to manage body motion. Bushings and ball joints wear faster on a vehicle driven hard off road, so inspect them after rough use. A belly pan helps protect the lower components, while a steering knuckle upgrade is a separate decision based on how the front end is used.

Specifications

Brand Rubicon Express
Part number JKR443M
UPC 70000651288
System type Extreme-duty radius front and 4-link rear long arm lift
Lift height 3.5 inches (manufacturer range 3 to 4.99 inches)
Front arm type Radius arm or radius arm brackets
Rear lift method 4-link
Control arms Chromoly upper and lower, adjustable
Joints Super-Flex spherical ball joints
Bushings PT-Meg Super-Ride
Shocks Mono-Tube shocks
Made in USA

Vehicle fitment

Confirm fit for your year, model and trim before ordering. The kit belongs to the JK suspension line and pairs a radius front with a 4-link rear.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Moving a vehicle to a radius and 4-link long arm layout changes pinion and driveline angles, so the drivetrain and alignment should be checked after installation. The radius arms are part of the front end and affect steering geometry, which makes a full alignment a practical step at the end of the job.

What’s included

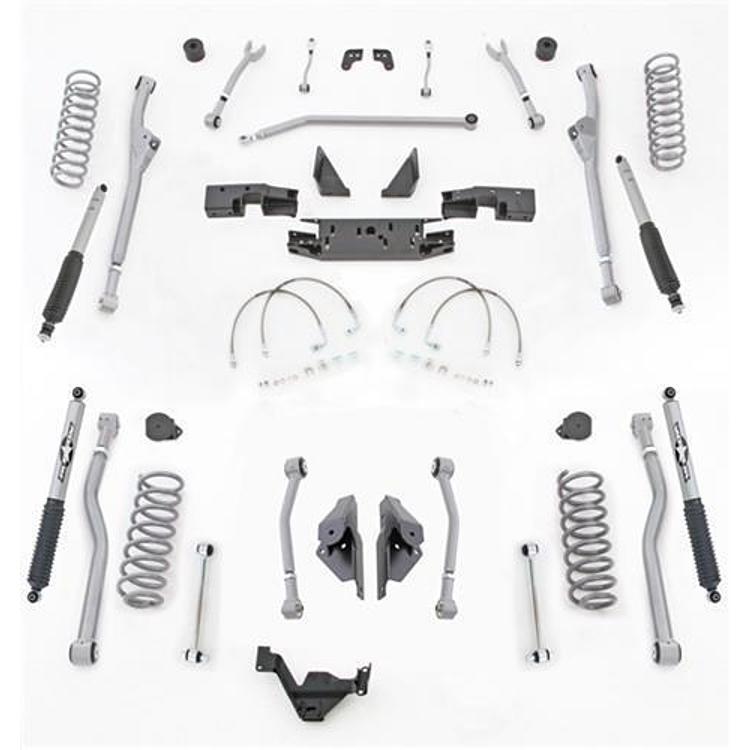

The included parts are the radius front and 4-link rear long arm components, chromoly upper and lower control arms, Super-Flex spherical ball joints, PT-Meg Super-Ride bushings, the full-width transmission crossmember and Mono-Tube shocks.

SKU: R/EJKR443M Category:

Specification

Shipping weight 284.05 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Does the JKR443M include shocks?

Yes. The kit includes Mono-Tube shocks, which separates this version from the JKR424M offered without them. Compare the two part numbers before choosing, because the lift height and arm layout are otherwise similar across the family.

What is a radius front long arm setup?

A radius arm runs from the axle to a bracket on the frame and controls forward and rearward movement of the axle. Rubicon Express pairs the radius front with a 4-link rear in this 3.5-inch kit, the layout used across this version.

Does this kit require welding?

Yes. The kit is designed for installation without welding. Its full-width transmission crossmember and adjustable chromoly control arms with Super-Flex spherical ball joints are part of that design.

What lift height does the JKR443M give?

It gives 3.5 inches of lift, within the 3 to 4.99-inch lift range for this family of kits. The same radius and 4-link layout is also offered at 4.5 inches under a different part number.

What wear signs suggest radius arm bushings need replacement?

Look for clunking over bumps, looseness at the axle end, and cracks or separation in the rubber. Uneven tire wear can also point to bushing wear that changes alignment. Replacing worn bushings restores the intended control and keeps the steering consistent.
