Overview
The Rubicon Express RE7145FP is a 3.5 inch sport lift kit for the 4-door Jeep Wrangler JK. It comes with Fox Performance shocks and fits 4-door models.
The kit includes a new high steer kit and control arm geometry correction brackets, which together address the steering and control arm geometry that a lift changes. Rear cam bolts allow pinion adjustment, and extended sway bar end links and bump stops are included.
The FOX Performance Series shocks are covered by the FOX warranty and are not eligible for the Rubicon Express Advantage Warranty. The kit is also made in the USA.
Key features

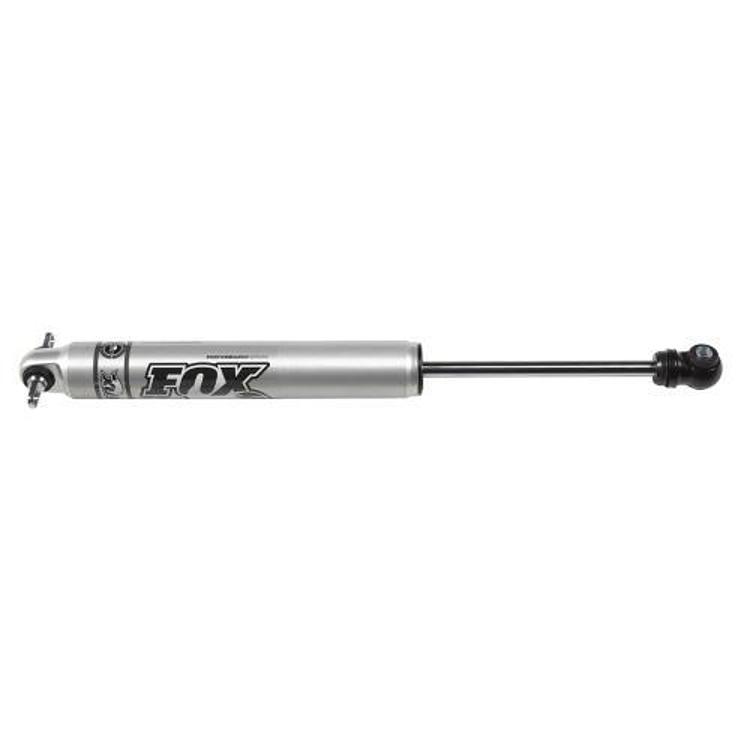

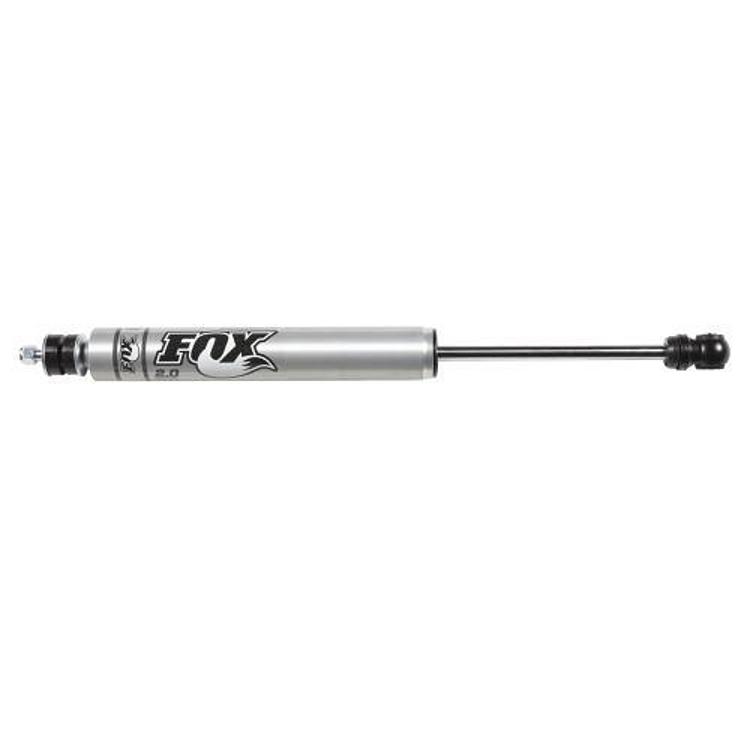

- Fox Performance shocks included
- New high steer kit
- Control arm geometry correction brackets
- Rear cam bolts for pinion adjustment
- Bump stops and rear track bar bracket
- Extended sway bar end links
- 3.5 inch front and rear replacement coil springs
- Easily upgraded to the Super-Flex system
Choosing shocks for a lifted Wrangler
Shocks control how the springs settle after the body rises, so they matter as much as the springs themselves. A lifted Wrangler carries its weight higher and farther from the axle, which can make worn shocks feel bouncy at highway speed. Most owners pair new shocks with a fresh set of bump stops. Replacing them alongside the springs keeps the damping in step with the new height.
Warranty coverage is worth planning around before buying. Shocks from a separate maker often carry their own warranty, so registration and receipts should be kept with the install paperwork. Look for leaks on the shaft, noise at the mounts, and uneven wear on the tire tread as signs a shock needs attention.
- Keep receipts for shock warranty claims
- Check mounts for cracked rubber
- Inspect for oil on the shock body
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7145FP |
| Body style | 4-door models |
| Lift height range | 2.5 to 3.5 inches, sold as a 3.5 inch kit |
| Shocks | Fox Performance, included |
| Springs | 3.5 inch front and rear replacement coil springs |
| Steering | New high steer kit |
| Control arms | Geometry correction brackets |
| Pinion adjustment | Rear cam bolts |
| Made in | USA |
| Warranty | FOX warranty on the shocks |
Vehicle fitment
The kit is placed with the 2007–2018 Jeep Wrangler (JK) and fits 4-door models in that range.
The JL, the Gladiator, and the older TJ and LJ Wrangler are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
For 2012 and later trucks, an exhaust modification or a front drive shaft may be required. Have the alignment and pinion angle checked after installation, since the brackets and cam bolts are set during the install.
What’s included
A new high steer kit, control arm geometry correction brackets, rear cam bolts, bump stops, a rear track bar bracket, extended sway bar end links, 3.5 inch replacement coil springs and Fox Performance shocks.
