Rubicon Express 5.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Track Bar – No Shocks – RE7225

Rubicon Express

Shop Jeep Wrangler LJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 5.5-inch long arm lift, no shocks, 5 to 6.99 inches of range
  • Fits 2004–2006 Jeep Wrangler LJ Unlimited
  • Chromoly long arms with tuned lift springs
  • Rear track bar included

Description

Overview

The Rubicon Express 5.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Track Bar, No Shocks (part number RE7225), is a long arm lift for the 2004–2006 Jeep Wrangler LJ Unlimited and Unlimited Rubicon. The stated lift height range is 5 to 6.99 inches, and no shocks are included.

The design is a complete suspension replacement built around longer control arms. The arms add stability, reduce torque roll and help trail traction.

Shocks are not included, so choose shocks sized for the 5 to 6.99 inch lift range before installation. The kit includes tuned lift springs, a rear track bar and a three-piece belly pan. Check driveline angles and steering linkage after the work.

Key features

  • Chromoly long control arms
  • PT-Meg Super-Ride bushings
  • Adjustable control arms with serviceable Super-Flex spherical ball joints
  • Tuned lift springs
  • Rear track bar included
  • Three-piece belly pan for transfer case and transmission access

Choosing shock absorbers

Shocks do more work on a lifted Wrangler than they did at stock height. The longer control arms change the angle the axle moves through, so the shock has to control a bigger range of travel. Many owners pick a shock with a valving and length suited to the lift, rather than reusing the factory units, because the stock shock may bottom out or run short at full extension.

Ask the shock maker for length measurements at full extension and full compression, then compare them to the arm travel you expect on the trail. Shock mounts, bump stops and brake hose length are worth checking at the same time, since a longer arm and a taller ride can change how each part sits.

  • Shock length at full extension and compression
  • Bump stop height and contact
  • Brake hose length after the lift

Specifications

Brand Rubicon Express
Part number RE7225
Lift height range 5 to 6.99 inches
Suspension type Extreme-Duty long arm
Shock absorbers Not included
Fitment type Direct fit

Vehicle fitment

It fits the 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon.

The 2-door LJ and the TJ, JK and JL Wranglers are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 5 to 6.99 inch lift is a large change for an LJ, so check the driveline angles, steering linkage and brake hose lengths after installation. Shocks should be selected for this lift before the install. Check the track bar bracket and the shock mounts before final torque.

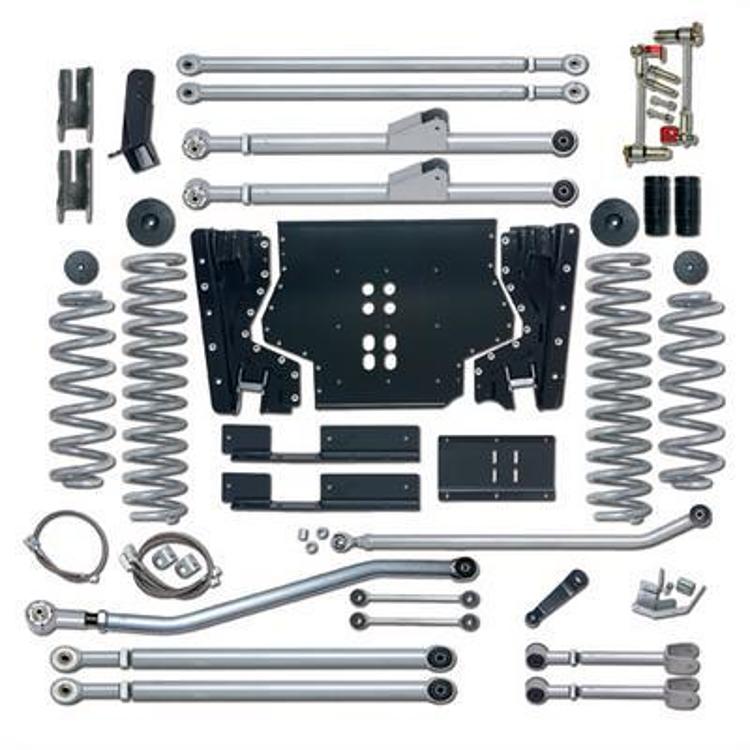

What’s included

Tuned lift springs, chromoly long arms, PT-Meg bushings, Super-Flex spherical ball joints, a rear track bar and a three-piece belly pan.

Not included: shock absorbers.

SKU: R/ERE7225 Category:

Specification

Shipping weight 385.10 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Rubicon Express RE7225 include shocks?

No. Shocks are not included with this kit, so buy shocks matched to the 5 to 6.99 inch lift range before starting the installation. Choose them early so the install stays on schedule.

Will the RE7225 fit a 2005 Jeep Wrangler Unlimited?

Yes. It fits the 2004–2006 Jeep Wrangler LJ Unlimited, so a 2005 Unlimited is covered. Check your year, model and trim before ordering.

What lift height does the RE7225 provide?

The stated lift height range is 5 to 6.99 inches, which is the largest lift listed in this Rubicon Express long arm group for the LJ.

How do I know when the long arm bushings need inspection?

Inspect the bushings and ball joints at every oil change or after hard trail use. Look for cracking, torn boots, play at the ends of the arms and any clicking under load. Replace worn parts before they affect steering and alignment.
