Overview
The Rubicon Express 3.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Track Bar, No Shocks (part number RE7223), is a long arm lift for the Jeep Wrangler LJ Unlimited and Unlimited Rubicon from 2004 to 2006. The lift height range is 3 to 4.99 inches, and no shocks come with the kit.
The long arm design was first made for the TJ and is built here for the LJ. Its longer control arms improve lifted geometry, adding stability on and off road along with better trail traction.
A shock sized for the 3 to 4.99 inch range has to be bought separately, since none is included. Tuned lift springs, a rear track bar and a three-piece belly pan are included. Confirm whether brake lines need replacing before the install.
Key features
- Chromoly long control arms
- PT-Meg Super-Ride bushings for on- and off-road performance
- Adjustable control arms with serviceable Super-Flex spherical ball joints
- Tuned lift springs
- Rear track bar included
- Three-piece belly pan for transfer case and transmission access
Shock choice without a shock kit
When a long arm kit ships without shocks, the shock choice shapes how the lifted Wrangler handles. Shocks need to reach the new mounting points at full extension and full compression, so measure the existing units before buying. Damping also matters: a shock built for a stock ride can feel harsh or loose once the suspension geometry changes.
Many owners replace shocks at the same time as the arms, since worn units can cause uneven tire wear and reduced control on a lifted vehicle. Keep the mount bushings and bolts in good condition, and check them after the first few drives. Set the alignment once the shocks are in so the steering settles evenly.
- Mount length checked at full travel
- Damping suited to the load you carry
- Bushings and hardware checked after installation
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7223 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Extreme-Duty long arm |
| Rear lift method | Coil springs |
| Shock absorbers | Not included |
| Fitment type | Direct fit |
Vehicle fitment
The kit fits Wrangler LJ models in the Unlimited and Unlimited Rubicon trims, years 2004–2006.
The 2-door LJ, the TJ and the JK and JL Wranglers are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
With no shocks in the kit, the existing shocks need checking against the 3 to 4.99 inch range. Set the alignment and check the driveline angles once the long arms are in.

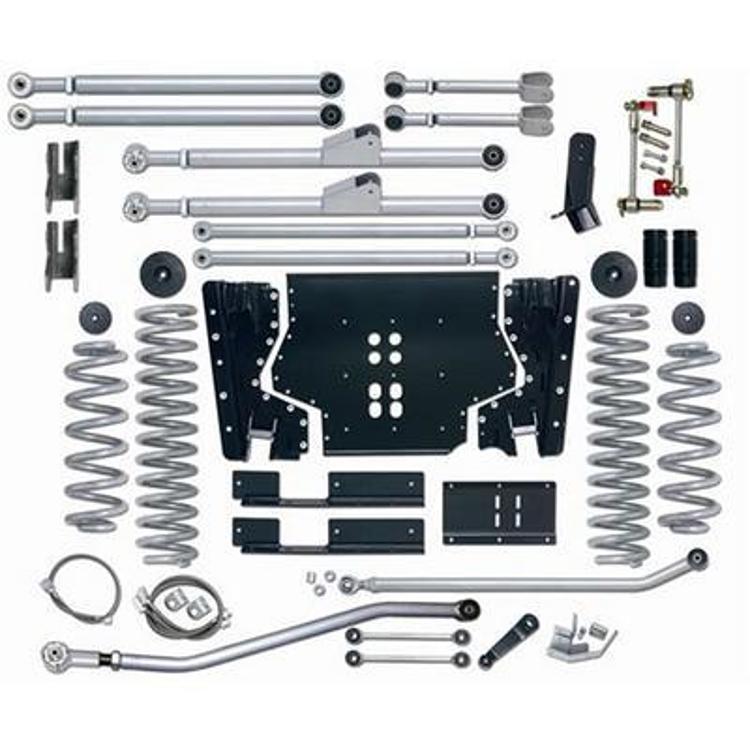

What’s included
Tuned lift springs, a rear track bar, chromoly long arms, PT-Meg bushings, Super-Flex spherical ball joints and a three-piece belly pan.
Not included: shock absorbers.
