Overview
The Rubicon Express RE7133FPR is a 2.5-inch spacer lift with front and rear Fox Performance Resi shocks. It raises the vehicle with coil spring spacers instead of replacement springs, and it adds bump stops and extended sway bar end links. The kit covers the most popular Jeep JK suspension systems, which places it on the 2007-2018 Jeep Wrangler (JK).
The spacer design is the main difference from the replacement-spring kits in the same series. The lift range runs from 2.5 to 3.5 inches, and the maximum tire size is 35X12.50. Fox shocks are part of the kit, so the shock package comes with the spacers.
Key features
- 2.5-inch lift from front and rear coil spring spacers

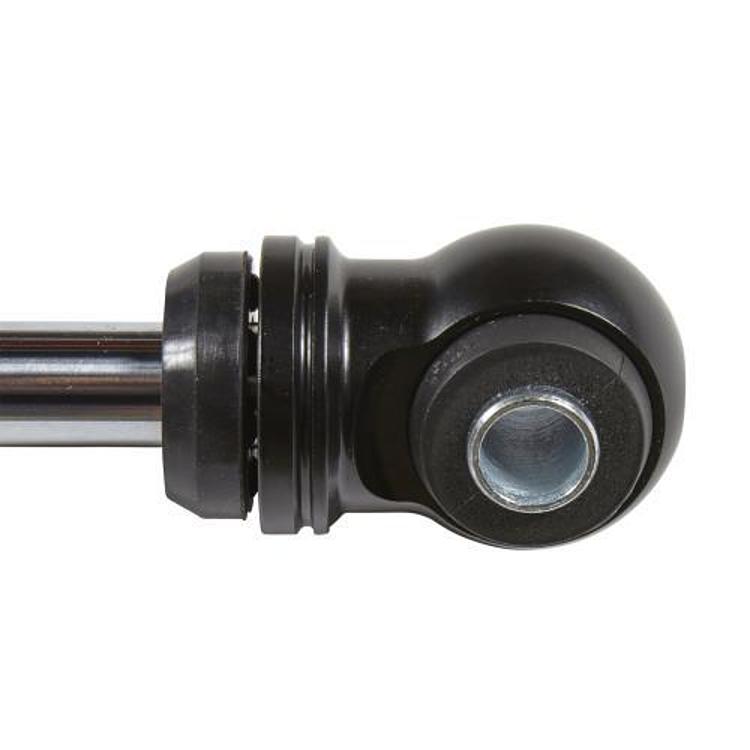

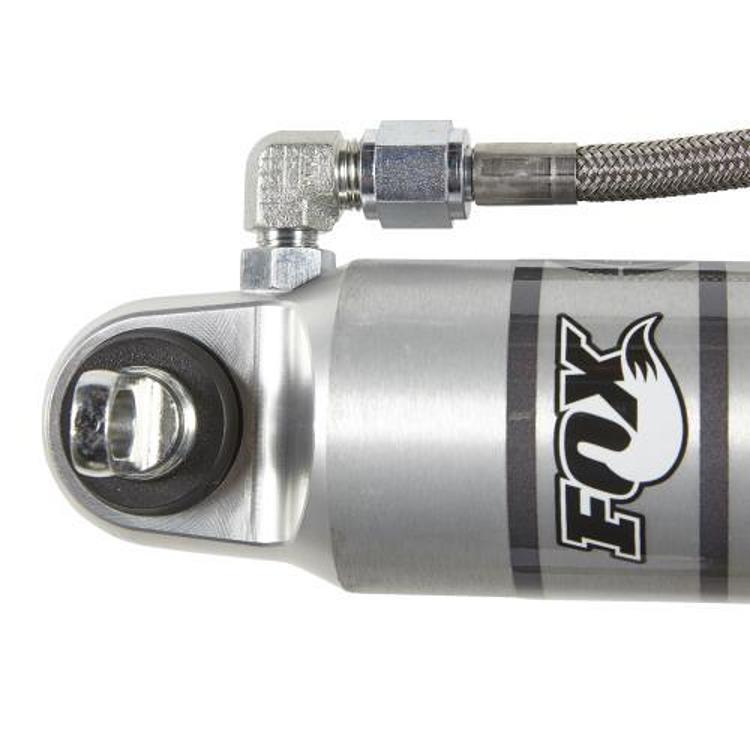

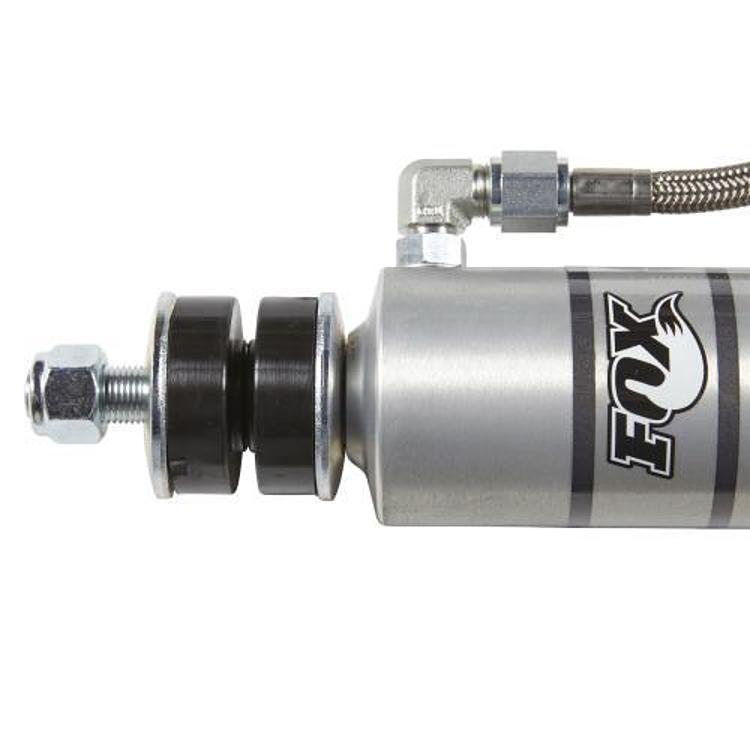

- Front and rear Fox Performance Resi shocks
- Bump stops
- Extended sway bar links
- Maximum tire size of 35X12.50
Spacers versus springs
Spacer lifts keep the factory coil springs and add height at the seat, which preserves the original spring rate and avoids replacing the springs. The tradeoff is that the springs are not upgraded, so the ride stays close to the factory character. Owners who want a firmer or taller stance often choose replacement springs instead, which carry more lift and more change in ride feel.
Because the factory springs stay in place, check their condition before installing spacers. Sagging or cracked springs will still limit height and load capacity. Spacers should match the spring seat, and the sway bar links should be adjusted so they do not bind at full droop. Recheck the alignment after the first few drives to confirm the install has settled.
- Inspect springs for cracks before installation
- Check sway bar link length at full droop
- Recheck alignment after the first drive
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7133FPR |
| UPC | 700008204571 |
| Kit type | Spacer lift |
| Lift height | 2.5 inches |
| Spring components | Front and rear coil spring spacers |
| Shocks | Fox Performance Resi, front and rear |
| Maximum tire size | 35X12.50 |
Vehicle fitment
Covers the 2007-2018 Jeep Wrangler (JK) suspension systems
Confirm fit for your vehicle’s year, model and trim before ordering, including whether your Jeep is a TJ, LJ or JL.
Installation notes
A spacer lift keeps the factory springs and adds spacers between the spring and its seat, so the existing springs carry the added height. The extended sway bar links and bump stops are part of the same install, and the alignment should be checked afterward.
What’s included

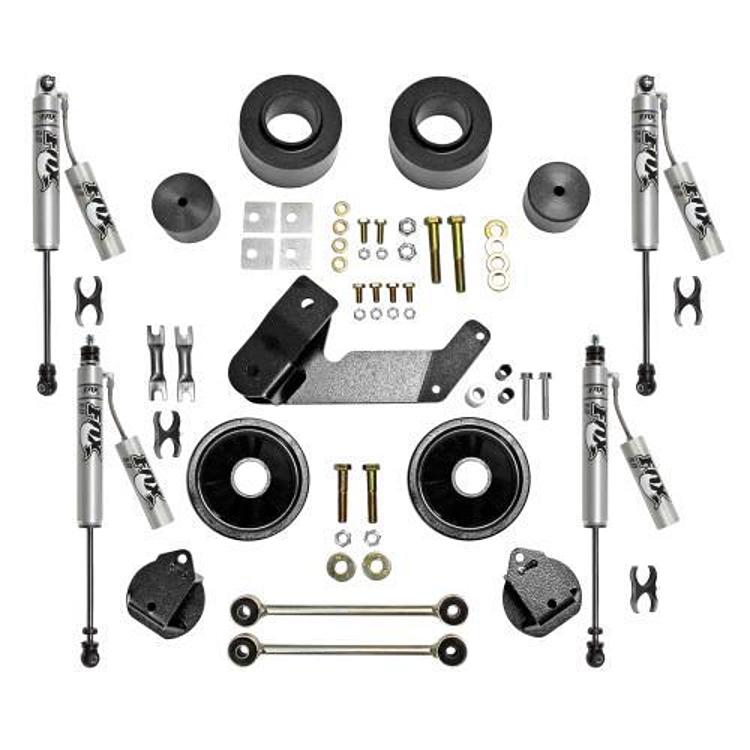

The kit includes the front and rear coil spring spacers, bump stops, extended sway bar links and Fox Performance Resi shocks. The shocks are Fox branded.
