Rubicon Express 5.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Tri-Link – No Shocks – RE7515

Rubicon Express

Shop Jeep Wrangler TJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express RE7515 5.5 inch Extreme-Duty long arm lift kit with rear Tri-Link, no shocks
  • Listed fit: 2003–2006 Jeep Wrangler TJ, including the 65th Anniversary Edition, Rubicon, SE, Sahara and Sport models
  • Chromoly long arms, Builder Ball misalignment joint and adjustable control arms
  • Lift height range 5 to 6.99 inches

Description

Overview

The Rubicon Express RE7515 is a 5.5 inch Extreme-Duty long arm lift kit with a rear Tri-Link for the 2003–2006 Jeep Wrangler TJ. The lift height range is 5 to 6.99 inches, and shocks are not included.

Rubicon Express was the first to offer a commercial long arm suspension for the TJ. This kit uses longer control arms in place of the stock suspension arms, which improves geometry on a lifted Wrangler, adds stability on and off road, reduces torque roll and improves trail traction over short arm lifts.

The rear Tri-Link takes the place of the rear track bar and allows the axle to move straight up and down through its travel. Rubicon Express adds that the link increases anti-squat on steep climbs and improves tracking on pavement.

Key features

  • 5.5 inch lift with a listed range of 5 to 6.99 inches
  • Chromoly long arms built from 4130 chromoly tubing
  • Rear Tri-Link that replaces the rear track bar
  • Builder Ball misalignment joint, rated for up to 32 degrees
  • Adjustable control arms with serviceable Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings designed for on and off-road use
  • Tuned lift springs and stainless steel brake lines

Before you install

Shocks are not included with this kit, so plan the shock choice before the parts arrive. The stock shocks were matched to a shorter, factory suspension, so a long arm lift with a 5 to 6.99 inch range benefits from shocks with length and valving picked for the new arm geometry. Confirm the length against the installed height before ordering, not after the arms are on.

Gather the tools and the alignment appointment before starting. Long arm installs involve heavy parts, so a helper and a jack stand set make the job safer. Check the brake lines, the driveshaft and the tie rod ends while the vehicle is up, since the new geometry changes their angles. Keep the old components until the new kit is fully fitted, and note which bolts go where.

  • Order shocks sized for the new suspension
  • Plan an alignment and driveline check

Specifications

Brand Rubicon Express
Part number RE7515
UPC 614901442069
Lift height range 5 to 6.99 inches
Suspension type Long arm
Kit type Extreme-Duty long arm
Rear lift method 3-link (Tri-Link)
Control arm material 4130 chromoly, .250 wall
Misalignment joint Builder Ball, up to 32 degrees, 3 inch OD housing
Belly pan Three-piece, for transfer case and transmission access
Shocks included No
Fitment Direct fit

Vehicle fitment

It fits the 2003–2006 Jeep Wrangler (TJ), including the 65th Anniversary Edition, Rubicon, SE, Sahara and Sport models.

Fit covers 2003–2006 TJ models only. Match your vehicle’s year and trim before buying.

Installation notes

A lift of this height changes alignment and driveline angles, so check the driveline and complete a full alignment after installation. The kit bolts on to factory Dana 35 and Dana 44 rear ends.

What’s included

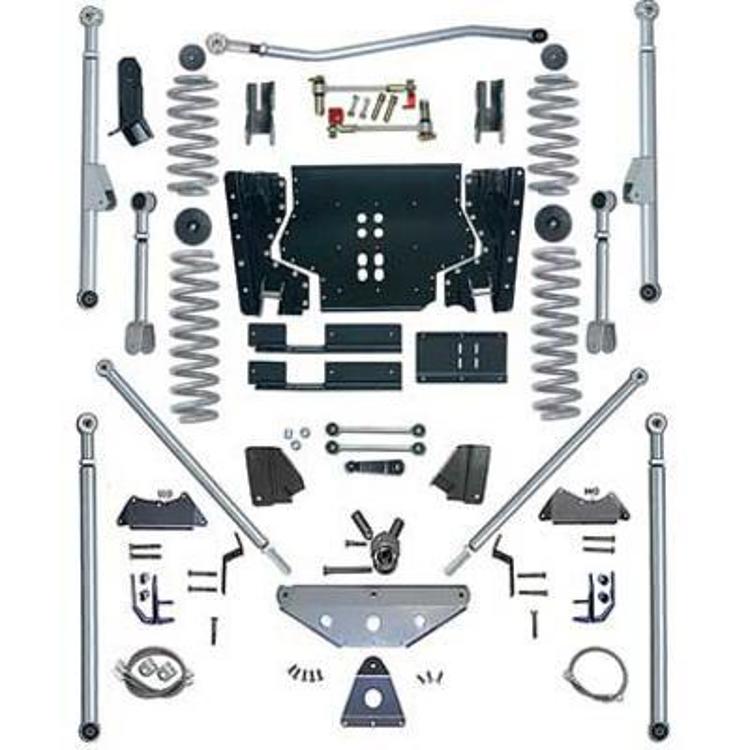

The kit includes front and rear control arms, the rear Tri-Link, the Builder Ball, PT-Meg Super-Ride bushings, tuned lift springs, stainless steel brake lines and a three-piece belly pan.

Not included: shocks.

SKU: R/ERE7515 Category:

Specification

Shipping weight 403.95 lbs
Package dimensions 48.00 × 24.00 × 24.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)2003–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RE7515 include shocks?

No. The kit is sold without shocks, so you will need your current shocks or a separate set that suits a 5 to 6.99 inch lift.

Does the RE7515 fit a 2005 Jeep Wrangler TJ?

Yes. It fits 2003 to 2006 Wrangler TJ models, so a 2005 model is covered. Check the trim and body style against your vehicle before ordering.

What lift height is the RE7515?

The listed range is 5 to 6.99 inches, and the product name gives 5.5 inch. Check tire and driveline clearance for that height before installing.

Can the old track bar be reused with this kit?

No. The rear Tri-Link takes the place of the track bar, so the old bar is not part of the setup. Check that the axle mounts and any bracketry line up with the new link before tightening anything.
