Overview
The Rough Country 4-inch Toyota Tundra suspension lift kit, part number R/C75171, fits the 2016–2021 Toyota Tundra in the 1794 Edition, Limited, Nightshade, Platinum, SR, SR5, TRD Pro and Trail versions. The name includes V2 Monotube shocks, so confirm which shocks come with this part number before ordering.
The kit is a complete lift package with lifted knuckles, a protective skid plate, and the brackets and hardware needed to restore factory-style geometry while adding ground clearance.
The front crossmember has a high-clearance design that helps the truck clear obstacles without hang-ups. It also gives the truck a more aggressive appearance and a higher profile.
Key features
- Lifted knuckles
- Protective skid plate
- High-clearance front crossmember
- Brackets and hardware for factory-like geometry
- Additional ground clearance
- Listed lift height range of 4 to 5.5 inches
Driveline and alignment after a lift
Raising a truck changes the angles of the driveshafts and the front axle. Steeper angles increase vibration and wear on the joints, so check the driveline after the lift settles, especially if the truck is driven at highway speeds. Knuckles and drop brackets are the parts most likely to shift the front geometry.
Off-road use puts extra load on front components, so inspect the crossmember, skid plate mounts and brackets after rough trips. A skid plate protects the underside, but it still needs checks for dents and loose fasteners after contact with rocks or ledges.
- Re-torque the hardware after the first few weeks of driving
- Check the driveline angles at each oil change
- Look for drips around the knuckles and seals
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C75171 |
| Lift size | 4 inches |
| Lift height range | 4 to 5.5 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2016–2021 Toyota Tundra in the 1794 Edition, Limited, Nightshade, Platinum, SR, SR5, TRD Pro and Trail versions.
Tundra model years outside 2016–2021, including the 2022 model, and other Toyota models are not on the list.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Lifted knuckles and drop brackets change the front geometry, so have the alignment checked after installation. Check the driveline angles as well, since the lift raises the front of the truck.
What’s included

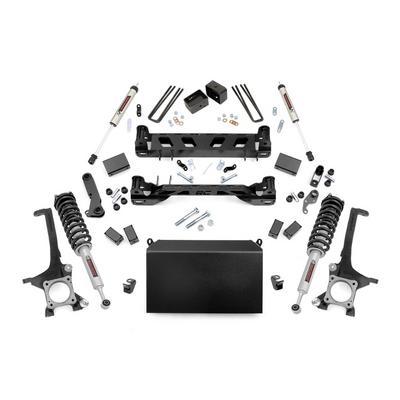

Lifted knuckles, a skid plate, a high-clearance front crossmember and the brackets and hardware for the kit.
