Overview

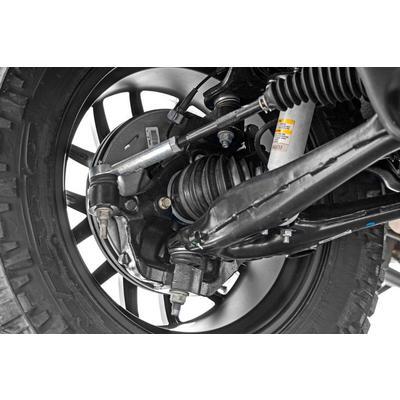

The Rough Country 12430 is a 3.5-inch lifted steering knuckle kit with N3 rear shocks for the 2014–2018 Chevrolet Silverado 1500 and GMC Sierra 1500. The rated lift range is 0 to 3.5 inches. The rear is raised with fabricated blocks and U-bolts, and the front uses lifted knuckles in place of the factory parts.
The lifted knuckles keep the CV boots clear of the lower arms, so the kit does not depend on upper control arm changes alone. The knuckle design improves the upper ball joint angle and supports a smoother ride. The rear N3 shocks are nitrogen charged with 10-stage variable valving. Confirm the drive configuration for your truck before ordering. The N3 shocks and fabricated rear blocks needed for the lift are included in the package.
Key features
- Lifted steering knuckles rather than upper control arms
- Keeps the CV boot clear of the lower arms
- N3 rear shocks with 10-stage variable valving
- Nitrogen charged, high-pressure rear shocks
- Fabricated rear blocks designed for durability compared with cast blocks
Choosing a lift setup
A steering knuckle lift changes how the front end sits, so steering geometry, wheel offset and brake hose length should be considered before the truck is driven on rough ground. Tire size and wheel backspacing affect rubbing at full lock and under suspension compression. Rear lift blocks shift the axle position, which changes pinion angle, so the driveline is the part most affected by a rear lift.
Shocks are often replaced together with lift parts because the new ride height changes shock length and travel. Upgraded shocks should match the lift and the tires being run. Inspect ball joints, tie rod ends and U-bolt nuts at regular intervals, and retighten fasteners after the first few trail runs. Clicking, vibration or uneven tire wear can signal that the alignment or a component needs attention.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 12430 |
| Lift height range | 0 to 3.5 inches |
| Front lift | Lifted steering knuckles |
| Front shocks | Not included |
| Rear shocks | N3 shocks, 10-stage variable valving, nitrogen charged |
| Rear lift component | Fabricated blocks and U-bolts |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit for the 2014–2018 Chevrolet Silverado 1500, including Custom, High Country, LS, LT, LTZ, SSV and WT trims, and the 2014–2018 GMC Sierra 1500, including Base, Denali, SLE and SLT trims.
The list does not cover the 2013 or 2019 trucks or the 2500 and 3500 series. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Replacing the steering knuckles changes the front geometry, and the rear lift changes the driveline angle. Have the alignment and driveline angles checked after installation.

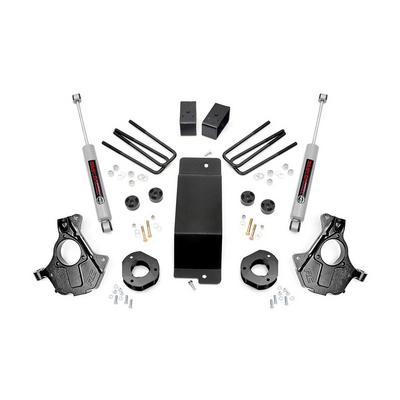

What’s included
Lifted steering knuckles, N3 rear shocks, fabricated rear blocks and U-bolts.
The kit comes with a lifetime replacement guarantee.
