Overview
The Rough Country 3-inch Nissan bolt-on lift kit, part number R/C83400, fits the 2004–2015 and 2017–2021 Nissan Titan pickups. It uses tubular upper control arms, strut spacers and fabricated rear blocks to lift the truck from front to rear.
The upper control arms are designed for easier alignment adjustment and use Clevite rubber bushings. They keep the ball joint at better angles after lifting, which reduces stress and wear on the joint.
Fabricated rear blocks sit between the rear springs and the axle to set the rear height, and strut spacers set the front. Together they level the truck, and the upper control arm geometry is what keeps the front suspension working at its designed angles.
Once installed, the kit is listed to provide ride height for tires up to 33 inches. The installation requires no cutting or drilling, uses common tools and can be reversed to return the truck to stock.
Key features
- Tubular upper control arms designed for easier alignment adjustment
- Clevite rubber bushings for durability
- Strut spacers for front lift
- Fabricated rear blocks for rear lift
- Bolt-on installation with no cutting or drilling
- Listed lift height range of 0 to 3.5 inches
Choosing the right Titan setup
Bolt-on lifts for the Titan affect front and rear geometry, so the choice of upper control arms, strut spacers and rear blocks should match the tires and driving you plan. Tire size is the main consideration, and wheel offset decides how much clearance there is at full lock. Test fit before the truck sees trail use.
Upper control arms and strut spacers are often inspected together with ball joints and tie rods, since changed angles place more load on those parts. Check bushing wear and sleeves on a regular schedule, and replace worn components in matched sets. Keep an alignment record so future service has a baseline.
- Check ball joints and tie rod ends at each service
- Inspect bushings for cracking or separation
- Verify wheel offset before fitting larger tires
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C83400 |
| Lift size | 3 inches |
| Upper control arms | Tubular with Clevite rubber bushings |
| Front lift component | Strut spacer |
| Rear lift component | Fabricated block |
| Tire size | Up to 33 inches |
| Lift height range | 0 to 3.5 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2004–2015 and 2017–2021 Nissan Titan.
The kit does not fit Titan XD models. The 2016 model year is not on the list.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Optional lifted struts fit 2004–2015 models only and are non-adjustable. Check the strut type on your truck before ordering.
What’s included

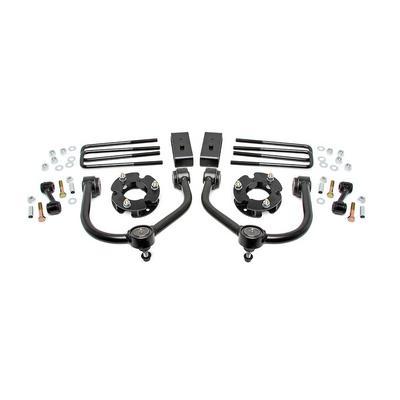

Tubular upper control arms, strut spacers, fabricated rear blocks and the bolt-on hardware.
Not included: optional lifted struts, sold as a separate add-on.
