Overview

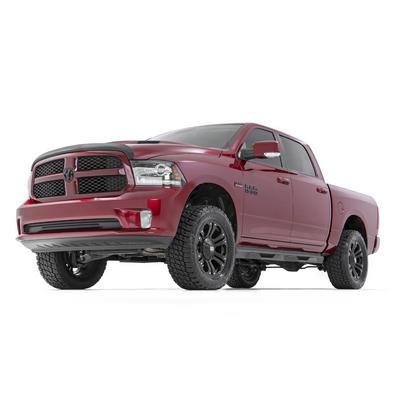

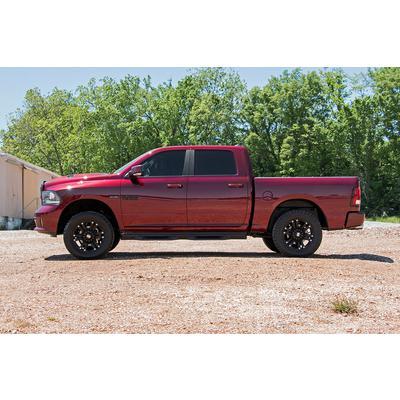

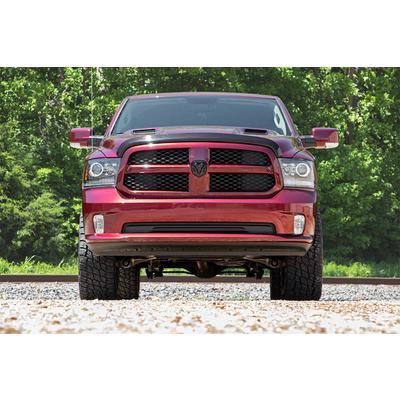

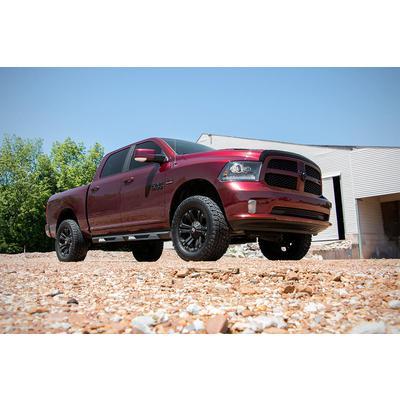

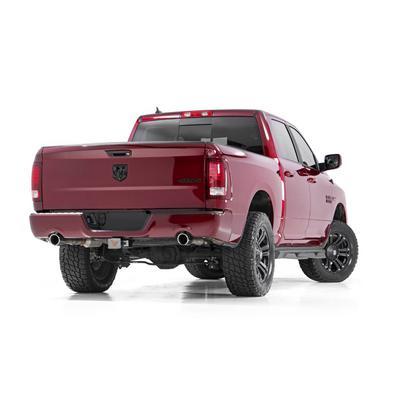

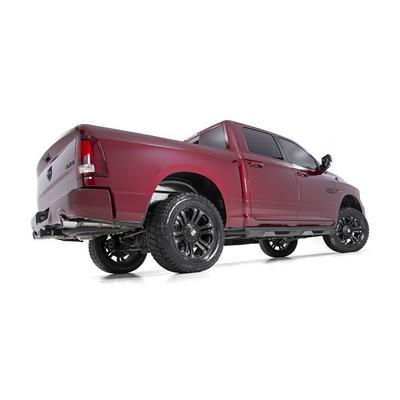

The Rough Country 3-inch Ram bolt-on suspension lift kit, part number R/C31230, fits the 2012–2018 Ram 1500 and the 2019–2024 Ram 1500 Classic. It raises the truck with front and rear spacers and includes N3 shocks at both ends, giving the Ram a level stance and room for 33-inch tires.
The kit includes tubular upper control arms with Clevite rubber bushings. The arms keep the ball joint at optimum angles after lifting, which gives a greater range of motion with less stress and wear. Removing the kit returns the truck to stock.
The upper control arms and strut spacers are the front components, and the rear spacer sets the rear height. The kit is sold as a 3-inch bolt-on lift, and the listed lift height range is 0 to 3.5 inches, so the front and rear heights should be matched during installation.
Tire clearance depends on wheel offset and backspacing as well as lift height, so the 33-inch tire figure should be tested with the wheels on the truck.
Key features
- Tubular upper control arms that make alignment adjustments easier
- Clevite rubber bushings for durability
- Front and rear spacers for lift height
- N3 shocks at the front and rear
- 100% bolt-on installation with no cutting or drilling
- Listed lift height range of 0 to 3.5 inches
Before you buy
Lifting a half-ton truck changes more than ride height. Front and rear spacers move the suspension geometry, so the upper control arms, steering linkage and driveline angles all shift at once. Tire size, wheel offset and backspacing decide whether the new height clears the fender and inner liner, so plan on test-fitting with the actual wheels before final torque.
Owners often replace upper ball joints, sway bar links and brake lines at the same time as a lift, since those parts see new angles. Inspect the rubber bushings and boots during installation. Keep the alignment appointment on the calendar, because tire wear and steering feel both depend on that setting.
- Check wheel backspacing before buying tires
- Re-torque lug nuts after the first few drives
- Confirm the front and rear heights match
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C31230 |
| Lift kit | 3-inch suspension lift |
| Shock series | N3 |
| Front shocks | N3 |
| Rear shocks | N3 |
| Rear lift method | Block or spacer |
| Rear lift component | Spacer |
| Tire size | 33 inches |
| Lift height range | 0 to 3.5 inches |
| Shocks included | Yes |
| Fitment type | Direct fit |
Vehicle fitment
The kit fits the 2012–2018 Ram 1500 in its Big Horn, Express, Laramie, Limited, Lone Star, Rebel, SLT, ST, Sport and Tradesman versions, and the 2019–2024 Ram 1500 Classic.
Ram 2500 and 3500 trucks, and other makes, are not on the list.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Changing the front and rear ride height changes the alignment, so have the alignment checked after installation. The upper control arms are the main components that change the ball joint geometry.
What’s included

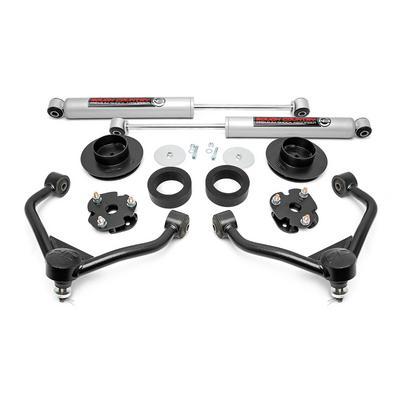

Tubular upper control arms with Clevite bushings, front and rear spacers, and N3 front and rear shocks.
