J.E. Reel 1350 Front Drive Shaft for M186/Dana 30 (8 Speed Automatic Transmission) -3518JL-24FFT

J.E. Reel

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front driveshaft for 2019 Jeep Wrangler JL Unlimited, 8-speed automatic
  • Built for the M186 and Dana 30 driveline
  • 1350 CV joint, maximum angle under 32 degrees
  • Direct fit, front position
  • Part number JER3518JL-24FFT

Description

Overview

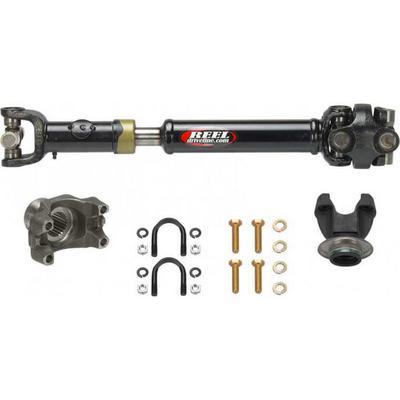

The J.E. Reel 1350 Front Drive Shaft for M186/Dana 30, part JER3518JL-24FFT, is a front driveshaft for the 2019 Jeep Wrangler JL Unlimited with an 8-speed automatic transmission. It is matched to the M186 transmission and Dana 30 front axle combination.

The 1350 CV joint has a maximum angle of less than 32 degrees, and the 1310 joint is rated under 26 degrees. On the 2018 JL the transfer case sits at 9.25 degrees, which slopes the front output up away from the axle, so the angle should be measured.

Key features

  • 1350 series front shaft for automatic transmission
  • Direct fit for the listed JL Unlimited models
  • Maximum joint angles given for the 1310 and 1350 CV joints
  • Designed for the M186 and Dana 30 driveline

Driveline angles and lift height

A front driveshaft works through two joints that must stay within their rated angle. Lift height, transfer case position and the axle’s pinion angle all change how far the joints bend, so the driveline geometry matters as much as the shaft itself. Vibration at speed is often a sign that an angle is off rather than a failed joint.

When replacing the shaft, inspect the yoke, the slip spline and the carrier bearing, and replace worn u-joints at the same time. Old grease or a torn boot on a CV joint is a reason to replace it before it fails on the trail.

  • Measure joint angles before installing on a lifted Jeep
  • Inspect the slip yoke for wear and freedom of movement
  • Replace worn u-joints and boots at the same time
  • Check the driveline after the first off-road run

Specifications

Brand J.E. Reel
Part number JER3518JL-24FFT
Position Front
Transmission type Automatic, 8-speed
Maximum angle, 1350 CV Less than 32 degrees
Maximum angle, 1310 CV Less than 26 degrees
Fitment type Direct fit

Vehicle fitment

It fits 2019 Jeep Wrangler (JL) Unlimited four-door models.

Two-door JL models and the 2018 JL with its different transfer case angle are not covered by this fitment entry, so measure the angle before choosing this part. Confirm your vehicle’s year, model and trim before choosing this part.

Installation notes

Measure the driveline before installing this shaft on any lift taller than the moderate range, since joint angles change with lift height.

What’s included

One front driveshaft assembly.

Fitment

VehicleYearsTrims
Jeep Wrangler (JL)2019Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the JER3518JL-24FFT fit a 2019 Jeep Wrangler JL Unlimited with an 8-speed automatic?

Yes. It is a direct fit for the 2019 Jeep Wrangler (JL) Unlimited four-door models with the 8-speed automatic transmission and the M186 and Dana 30 driveline.

What is the maximum joint angle for this front shaft?

The 1350 CV joint is rated for less than 32 degrees, and the 1310 CV joint for less than 26 degrees.

Does a 2018 JL need a different driveline angle check?

Yes. A 2018 JL has its transfer case installed at 9.25 degrees, which slopes the front output up away from the axle. Measure the driveline angle before fitting this shaft to a 2018 JL.

What signs show a driveshaft needs replacing?

Common signs are vibration at highway speed, a clicking noise when turning under power, and grease spraying from a torn boot. Check the joints and slip yoke for play, and inspect the boots before deciding on full replacement.
