Overview

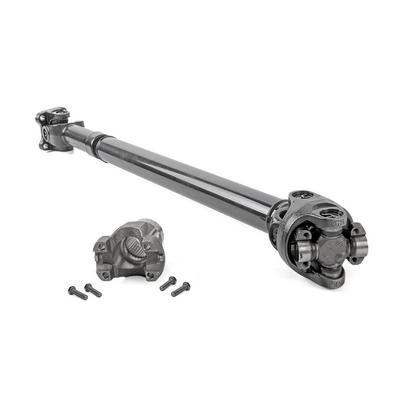

The Rough Country Front CV Drive Shaft, part R/C5090.1A, is a replacement front driveshaft for the 2018–2026 Jeep Wrangler JL. Rough Country recommends it for any JL lift of 3.5 inches or more, because the factory shaft can be damaged when the suspension reaches full droop.
The shaft is built to keep driveline geometry in order on and off road. The factory shaft is at risk when a lifted JL reaches full droop, and this shaft is designed to address that. It fits Dana 30 front axle models only, so confirm the front axle before choosing this part.
Key features
- CV front shaft with an extended length
- Recommended for JL lifts of 3.5 inches or more
- Protects against factory shaft damage at full droop or flex
- Fits Dana 30 front axle models only
Driveline angles and lift height
Front CV shafts carry power through the joints at each end while the suspension moves up and down. A lift changes the angle of those joints, and at full droop the factory shaft can be stressed beyond what it was designed for. An extended shaft is intended to keep the joint angles in a safer range on a lifted Wrangler.
When choosing a shaft, confirm the front axle first, since axle type decides which parts fit. Control arms, brake lines and the track bar often need adjustment after a lift, so check their lengths and clearances during the same job. Inspect the boots for tears and listen for clicking during tight turns, both signs the old joint is wearing.
- Check the boot seals for cracks or grease leaks
- Look for play or clunking when shifting between drive and reverse
- Recheck driveline clearance after the first off-road trip
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C5090.1A |
| Position | Front |
| Length | Extended |
| Joint type | CV |
| Recommended lift | 3.5 inches or more |
| Front axle | Dana 30 only |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2018–2026 Jeep Wrangler (JL), covering two-door and four-door models across the JL range.
It does not fit the earlier JK Wrangler or the Dana 44 front axle. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
An aftermarket driveshaft is strongly recommended for any JL lift of 3.5 inches or more, because the factory driveshaft can be damaged at full droop. Check the front axle is a Dana 30 before choosing this part.
What’s included
One front CV driveshaft assembly.
