Overview
The Rough Country 2.5-inch suspension lift kit, part number R/C86731, is a Nissan lift kit for the 2005 and later Frontier and the 2005–2015 Xterra. It combines strut spacers with plate steel shackles to gain ride height, and the kit includes N3 shocks at the front and rear.
The strut spacers attach to the top of the strut without strut disassembly. The 3/8-inch plate steel shackles are engineered to preserve factory ride quality and reduce driveline vibration. The shackles are finished with a powder coat.
The shackle kit includes DOM tubed bolt sleeves and Grade 8 hardware. The brand presents the sleeves and bolts as stronger than the ones on competing kits that fail in this area.
On a truck, the shackle connects the leaf spring to the frame at the rear. A longer or heavier shackle changes that connection and raises the rear, and the bolt sleeve sits inside the spring eye, so its material and wall thickness affect how the joint holds up under load.
Key features
- Strut spacers that attach to the top of the strut
- 3/8-inch plate steel shackles, powder coated
- DOM tubed bolt sleeves
- Grade 8 hardware
- N3 shocks at the front and rear
- Listed lift height range of 0 to 3.5 inches
Before you install a shackle lift
Rear shackles carry the leaf springs and axle load, so the bolt sleeves and fasteners work hard over time. Inspect the shackle bolts, sleeves and bushings at each oil change or tire rotation. Look for cracked or rounded bolt heads, play at the shackle pivot and wear around the spring eye. Any of those signs means the joint needs attention before the truck sees rough trail use again.
A higher rear end changes the driveshaft angle, so vibration at highway speed is a common sign that the angles need a look. Many owners check the U-joints and the front driveline at the same time. Re-torque the hardware after the first few drives, and watch the tire wear pattern as the alignment settles.
- Check shackle bolts and sleeves for cracks or play
- Re-torque hardware after the first few drives
- Inspect U-joints when driveline vibration appears
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C86731 |
| Lift size | 2.5 inches |
| Shock series | N3 |
| Rear lift method | Block or spacer |
| Rear lift component | Block |
| Shackles | 3/8-inch plate steel |
| Bolt sleeves | DOM tubed |
| Hardware grade | Grade 8 |
| Tire size | 285 |
| Shocks included | Yes |
| Lift height range | 0 to 3.5 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2005–2026 Nissan Frontier and the 2005–2015 Nissan Xterra.
Other Nissan models, and Frontier or Xterra model years outside the ranges above, are not on the list.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The shackle kit changes the rear lift and the driveline angles. Check the driveshaft for vibration after installation and have the alignment checked.

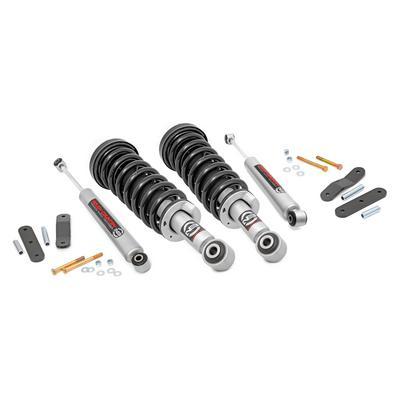

What’s included
Strut spacers, 3/8-inch plate steel shackles, DOM tubed bolt sleeves, Grade 8 hardware and N3 shocks at the front and rear.
