Rough Country 5″ GM Torsion Bar Drop Suspension Lift Kit – 10330

Rough Country

Shop GMC Sierra 2500 HD Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 5-inch torsion drop lift for 2011–2019 Silverado and Sierra HD 2500 and 3500
  • 1/4-inch steel crossmembers and torsion bar drop brackets
  • N3 shocks with 10-stage valving
  • Requires minor cutting and drilling
  • Not for dually models or Magnetic Ride Control

Description

Overview

The Rough Country 5-inch GM torsion drop suspension lift kit, part number R/C10330, fits the 2011–2019 Chevrolet Silverado 2500 HD and 3500 HD and the 2011–2019 GMC Sierra 2500 HD and 3500 HD. It is a torsion drop design that aims to improve ride quality and handling while keeping proper angles in a factory-like setup.

The kit includes heavy-duty components, among them 1/4-inch steel crossmembers, 1/4-inch torsion bar drop brackets and a skid plate. The parts are laser cut and powder coated in Hammer Black to match factory components.

The kit does not widen the stock track width. The torsion drop brackets keep the geometry at optimum angles so the truck handles close to its factory feel in corners. A full set of N3 nitrogen-charged shock absorbers is included, with 10-stage velocity-sensitive valving tuned for each model.

Key features

  • Torsion drop design that keeps the stock angles
  • 1/4-inch thick steel crossmembers
  • 1/4-inch thick torsion bar drop brackets
  • Durable skid plate
  • N3 nitrogen-charged shocks with 10-stage valving
  • Hammer Black powder coat finish

Torsion bar basics

A torsion bar suspension uses a twisting bar instead of a conventional coil or leaf spring to carry load at the front. Changing the drop changes the angle of the bars, which is why the torsion drop brackets matter for ride height and wheel travel. Heavy-duty trucks often carry heavier loads, so the bars and their mounts see steady stress over time.

Because the front end is adjusted, the steering geometry and alignment should be checked after installation. Torsion bar components are often inspected along with the drop brackets, since worn mounts can allow the bars to shift. Tire choice and wheel offset also affect how the lift feels on the road.

  • Inspect torsion bar mounts for cracks or looseness
  • Recheck alignment after the first few drives
  • Keep the factory rear components in mind when adding load

Specifications

Brand Rough Country
Part number R/C10330
Lift size 5 inches
Drop design Torsion drop
Crossmembers 1/4-inch thick steel
Torsion bar drop brackets 1/4-inch thick
Shock series N3 nitrogen-charged, 10-stage
Tire size 35 inches
Shocks included Yes
Lift height range 4 to 5.5 inches
Fitment type Direct fit

Vehicle fitment

It fits the 2011–2019 Chevrolet Silverado 2500 HD in High Country, LT, LTZ and WT versions, the 2011–2019 Chevrolet Silverado 3500 HD, the 2011–2019 GMC Sierra 2500 HD in Base, Denali, SLE, SLT and WT versions, and the 2011–2019 GMC Sierra 3500 HD.

Dually models and models with Magnetic Ride Control are not covered. Models from 2020 and later are not covered and use other Rough Country kits.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Minor cutting and drilling is required. Factory rear overload springs must be removed on equipped models, and gas models may need exhaust modification for driveshaft clearance.

The kit does not work with factory wheels. Models with factory 17-inch wheels must use 17-inch or larger aftermarket wheels because of the larger calipers and rotors.

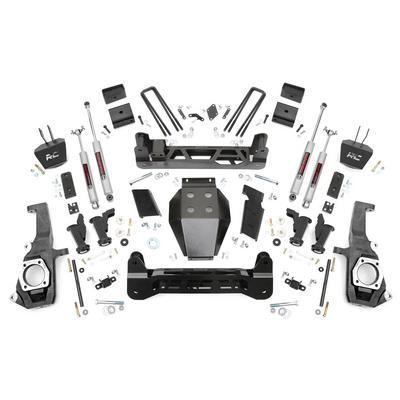

What’s included

Steel crossmembers, torsion bar drop brackets, a skid plate, N3 front and rear shocks and the block and u-bolt rear components.

SKU: R/C10330 Categories: ,

Fitment

VehicleYearsTrims
Chevrolet Silverado 2500 HD2011–2019High Country, LT, LTZ, WT
Chevrolet Silverado 3500 HD2011–2019High Country, LT, LTZ, WT
GMC Sierra 2500 HD2011–2019Base, Denali, SLE, SLT, WT
GMC Sierra 3500 HD2011–2019Base, Denali, SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Rough Country R/C10330 fit a 2015 GMC Sierra 2500 HD?

Yes. It fits 2011–2019 GMC Sierra 2500 HD models, which includes 2015. Confirm fit for your vehicle's year, model and trim before ordering.

Do the overload springs need to be removed?

Yes, on equipped models. Factory rear overload springs must be removed before the kit is installed. Check the rear springs before ordering.

Will the kit work with the factory wheels on a 17-inch truck?

No. The kit does not work with factory wheels, and models with factory 17-inch wheels need 17-inch or larger aftermarket wheels.

How do I tell if torsion bars are worn?

Look for sagging at the front, uneven ride height side to side, or a clunk over bumps. Any of these signs means the bars and drop brackets should be inspected before the truck is driven hard.

Should the shocks be replaced with the lift?

Replacing shocks at the same time keeps the damping matched to the new ride height. Shocks that are worn or leaking reduce control on the trail and on the road.
