Rough Country 2.5″ Jeep Suspension Lift Kit with Coil Springs and N3 Shocks – 653.20

Rough Country

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rough Country 653.20 2.5-inch Jeep suspension lift with coil springs and N3 shocks
  • Fits 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon, and 1997–2006 Jeep Wrangler (TJ) trims
  • N3 shocks with 10-stage variable valving, nitrogen charged
  • Recommended tire size 31×10.50 R15, factory wheel backspacing

Description

Overview

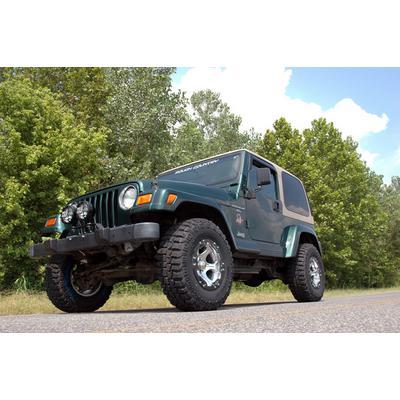

The Rough Country 653.20 is a 2.5 inch Jeep suspension lift kit with coil springs and N3 shocks. It was engineered for the Jeep TJ to balance off-road performance with a smooth highway ride, and it also fits the 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon.

The kit uses a rear coil spring lift with a lift height range of 0 to 3.5 inches. The N3 shocks are the main factor in ride quality on and off road, and they suit both trail and highway driving.

Key features

  • 2.5 inch suspension lift
  • Coil springs at the rear
  • N3 shocks at the front and rear
  • 10-stage variable valving
  • High pressure nitrogen charged shocks
  • 18mm spring-loaded piston rod and 54mm shock body
  • Natural rubber bushings
  • Metallic silver paint finish

Tires, alignment and ride

A coil spring lift raises the body and changes the angles of the control arms and driveline, so the stock geometry no longer applies. Expect a different ride height at each corner until the alignment is reset. Have the alignment and driveline angles checked after installation, and recheck them after the first few weeks of driving.

Larger tires or a change in tire diameter also affect the lift and gearing feel, so keep the recommended tire size in mind when choosing wheels. Shocks work best when mounting hardware is tight and bushings are in good condition. Inspect the bushings and shock mounts periodically for cracking, leaks or play.

  • Re-torque shock and control arm hardware after the first trail run
  • Check for shock leaks or oil residue
  • Watch for uneven tire wear that points to alignment

Specifications

Brand Rough Country
Part number 653.20
Lift amount 2.5 inch
Lift height range 0 to 3.5 inches
Shocks N3 at the front and rear
Shock valving 10-stage variable
Piston rod 18mm spring-loaded
Shock body 54mm
Tensile strength Rated to up to 36kN tensile strength
Bushings Natural rubber
Recommended tire size 31×10.50 R15
Recommended wheel backspacing Factory

Vehicle fitment

The kit fits the 2004–2006 Jeep Wrangler (LJ) in Unlimited and Unlimited Rubicon trims, and the 1997–2006 Jeep Wrangler (TJ) in 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims. The 2007 and later Wrangler JK and the 2018 and later JL are not part of this fitment.

The list does not include the 2007 and later Wrangler JK or the 2018 and later JL. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A coil spring lift changes suspension geometry, so have the alignment and driveline angles checked after installation. The recommended tire size is 31×10.50 R15, with factory wheel backspacing.

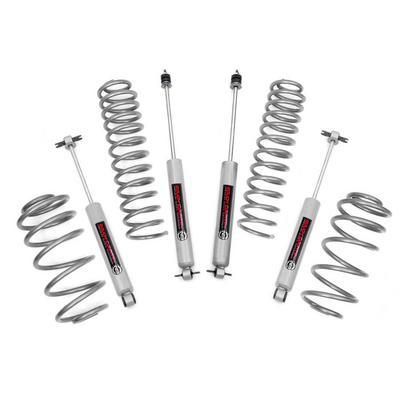

What’s included

The kit includes the N3 shocks with the coil spring lift. Verify the parts in the box against your installation before starting.

SKU: R/C653.20 Categories: ,

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Rough Country 653.20 fit a 2001 Jeep Wrangler TJ?

Yes. It fits the 1997–2006 Jeep Wrangler (TJ) in 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims, which covers 2001 models. The kit is engineered for the TJ.

Does the 653.20 include N3 shocks?

Yes. It includes N3 shocks at the front and rear, with 10-stage variable valving and high pressure nitrogen charging. Those shocks are the main part of the ride-quality setup.

What tire size does the 653.20 recommend?

Use 31x10.50 R15 tires with factory wheel backspacing for this kit. The lift height range is 0 to 3.5 inches, so check your target height before ordering.

Do I need new bump stops with a coil spring lift?

Check the bump stops after installation, since a change in ride height can alter how they engage at full compression. Worn or cracked bump stops should be replaced, and the shock mounts should be checked for wear at the same time.
