  • Rough Country 3.5 inch suspension lift kit with forged upper control arms, part number 22630
  • N3 shocks included, rear block and U-bolt lift
  • Handles tires up to 295/55R20
  • Fits 2019–2022 Sierra 1500 short bed models, with some exclusions

Description

Overview

The Rough Country 3.5 Inch Suspension Lift Kit with Forged Upper Control Arms, part number 22630, lifts and levels the front of the 2019–2022 GMC Sierra 1500 with the rear. It fits the 2019–2021 Sierra 1500 in the AT4, Base, Denali, Elevation, SLE and SLT trims, and the 2022 Sierra 1500 Limited in the AT4, Denali, Elevation, Pro, SLE and SLT trims. It fits short bed models only.

The kit uses forged aluminum upper control arms for the front geometry, with rear blocks and U-bolts for the rear lift. It handles tires up to 295/55R20, and the lift sits between a simple level and a full 6 inch lift.

Key features

  • Forged aluminum upper control arms
  • N3 shocks included, 10-stage variable valving with nitrogen charge
  • 18 mm spring-loaded piston rod and 54 mm shock body, rated to 36 kN tensile strength
  • POM ball joints for greater articulation and maintenance-free use
  • Fabricated rear blocks, stronger than cast blocks
  • Lifetime replacement guarantee

Bed length and tire setup

Bed length matters with this type of lift because the rear blocks and U-bolts change how the axle sits under the cab and bed. Short bed trucks have a different rear geometry than long bed models, so check the bed size before buying and make sure the kit suits your truck. Tire size is the other factor, since larger tires increase the load on the control arms and steering.

After any lift, the front alignment should be checked, and forged upper control arms are no exception. Recheck the upper and lower bolts after the first few drives and look for cracks around the mounts. Watch for uneven tire wear, vibration at highway speed, or a pull under braking, since these can point to alignment or geometry issues that need attention.

  • Confirm bed length before ordering
  • Check tire clearance at full steering lock
  • Recheck bolts after the first drives
  • Watch for uneven tire wear

Specifications

Brand Rough Country
Part number 22630
Lift 3.5 inch stage 1
Lift height range 0 to 3.5 inches
Upper control arms Forged aluminum
Rear lift Block and U-bolt
Rear blocks Fabricated
Shocks N3, included
Shock rod 18 mm spring-loaded piston rod
Shock body 54 mm
Shock tensile strength Up to 36 kN
Maximum tire size 295/55R20

Vehicle fitment

It fits the 2019–2021 GMC Sierra 1500 in the AT4, Base, Denali, Elevation, SLE and SLT trims, and the 2022 GMC Sierra 1500 Limited in the AT4, Denali, Elevation, Pro, SLE and SLT trims.

It does not fit Chevrolet 1500 models, Chevrolet Trail Boss models, 2019 Classic models with the 2018 body style, or trucks with Adaptive Ride Control. Confirm fit for your vehicle’s year, model, trim and ride control setup before ordering.

Installation notes

The kit includes fabricated rear blocks and POM ball joints, which Rough Country says are installed as part of the kit. Because the front uses forged upper control arms, have the alignment checked after installation.

What’s included

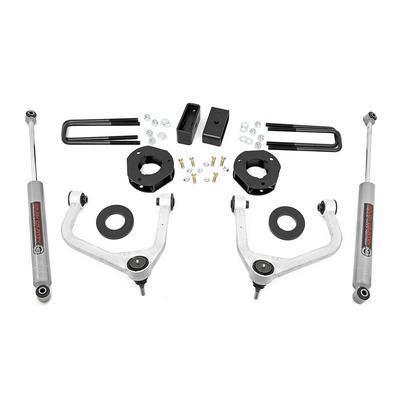

Forged upper control arms, N3 shocks, POM ball joints, fabricated rear blocks, and rear U-bolts.

SKU: R/C22630 Categories: ,

Fitment

VehicleYearsTrims
GMC Sierra 15002019–2021AT4, Base, Denali, Elevation, SLE, SLT
GMC Sierra 1500 Limited2022AT4, Denali, Elevation, Pro, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Rough Country 22630 fit a 2019–2021 GMC Sierra 1500?

It fits the 2019–2021 Sierra 1500 in the AT4, Base, Denali, Elevation, SLE and SLT trims. The kit is for short bed models only, so check your bed length before ordering.

Does the kit include shocks?

Yes. N3 shocks are included, with a 10-stage variable valve design and a nitrogen charge. Check the shock length against the new lift before fitting the kit.

Will this kit fit a Chevrolet Silverado 1500?

No. The kit does not fit Chevrolet 1500 models, so it is for the GMC Sierra 1500 only. Confirm your model before ordering to avoid buying the wrong kit.

Do forged upper control arms need special care?

Forged arms need the same routine care as any control arm. Inspect the mounts and bushings during regular service, look for cracks or bends, and replace any arm that shows damage rather than straightening it.
