ReadyLift 3″ SST Lift Kit – 69-2930

ReadyLift

$304.00In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 1:00 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.0-inch front and 1-inch rear lift for 2019–2021 Ford Ranger Lariat, XL and XLT trucks
  • Billet aluminum top hat front kit that combines a leveling mount with a spring preload spacer
  • Heavy-duty 1-inch rear block with centering pins and longer U-bolts
  • Fits 285/60R18 and 285/55R20 among other listed sizes

Description

Overview

The ReadyLift 69-2930 is a 3.0-inch front and 1-inch rear lift kit for the 2019 to 2021 Ford Ranger in the Lariat, XL and XLT versions. ReadyLift combines its 3.0-inch front leveling kit with a 1-inch rear block to lift the front and rear, leaving a small amount of rake for towing or hauling. The front is a CNC-machined billet aluminum kit, and the rear uses a heavy-duty block with centering pins and longer U-bolts.

The front uses a Top Hat Replacement design that combines a top mount leveling kit and a spring preload spacer in one component. The kit allows a mild increase in tire size and requires no cutting or modifications. A spring compressor is needed for installation, and the work can be finished in a few hours.

Key features

  • 3.0 inches of front lift from billet aluminum
  • Top Hat Replacement design combining a top mount and spring preload spacer
  • 1-inch tall rear block with centering pins
  • Longer U-bolts for the rear block
  • Keeps the factory ride and handling.
  • Front crash bars can be adjusted forward to add clearance

Tire size and clearance

Tire size is one of the main limits on any leveling or lift kit. A larger tire adds rolling diameter, which changes speedometer reading, gearing feel and how the tire sits in the fender. Check the sidewall and load rating of any tire you plan to run, and make sure the wheel offset keeps the tire clear of the body at full steering lock.

A billet top hat front and a heavy-duty rear block both change how the suspension is loaded. Hardware should be checked after the first few drives, because settling can loosen the U-bolts. Rear blocks also depend on the centering pins sitting square, so look for shifting or wear at each service.

  • Check tire sidewall and load rating before buying
  • Measure clearance at full lock and at full suspension travel
  • Confirm the spring compressor is in hand before starting
  • Retorque U-bolt nuts after the first few drives

Specifications

Brand ReadyLift
Part number RDY69-2930
Front lift 3.0 inches
Rear lift 1 inch, block and U-bolt
Front components CNC-machined billet aluminum top hat kit
Lift height range The front lift range runs from 0 to 3.5 inches.
Tire options 285/60R18 and 275/65R18 on 18×9 wheels; 275/55R20 and 285/55R20 on 20×9 wheels
Fitment type Direct fit

Vehicle fitment

It fits 2019 to 2021 Ford Ranger models in the Lariat, XL and XLT versions.

The kit is not for Ranger Ford Performance Level 1, 2 or 3 packages, and it is not for the Tremor edition. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Installation needs a spring compressor. Loosen and move the front crash bars forward to add clearance. Check the alignment after installation and check the rear block for driveline angles.

What’s included

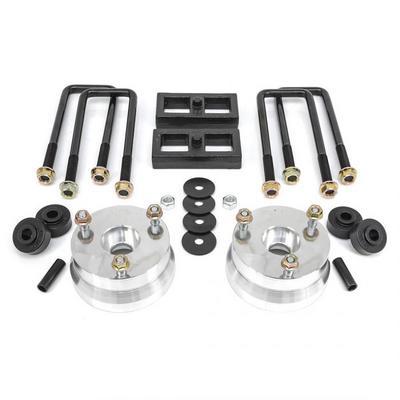

The kit includes the billet aluminum top hat front components, the 1-inch rear block with centering pins and the longer U-bolts.

SKU: RDY69-2930 Categories: ,

Fitment

VehicleYearsTrims
Ford Ranger2019–2021Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 69-2930 fit a Ranger Tremor?

No. The kit is not made for the Tremor edition, and it does not fit Ford Performance Level 1, 2 or 3 packages.

What tires can I fit with this kit?

The kit works with 285/60R18 and 275/65R18 tires on 18x9 wheels, and with 275/55R20 and 285/55R20 tires on 20x9 wheels. Confirm the wheel offset for each size before ordering.

Do I need special tools to install it?

Yes. A spring compressor is required for the top hat front kit. The kit needs no cutting or modifications and can be installed in a few hours.

How often should U-bolts and rear block hardware be inspected?

Check the U-bolt nuts and the block's centering pins after the first few drives and again during routine service. Tighten them to the correct torque for the hardware used, and look for shifting, cracks or rust around the block. Loose hardware can cause noise and uneven rear height.
