Overview
The ReadyLift 69-5276 is a 3-inch SST suspension lift kit for the Toyota Tundra. The kit includes a 2.0-inch rear block, which is needed on some TRD trucks, since a 1-inch block is not enough to level the rear with the front after a 3.0-inch front strut extension. It fits Tundra models from 2007 to 2020 in the 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, TRD Pro and Trail versions.
The tapered 2.0-inch rear block gives most TRD, SR5 and Rock Warrior trucks about a half-inch of rear rake. The system fits Crew Max, Double Cab and Standard Cab bodies in 2WD and 4WD, and allows up to 35-inch tires while keeping the stock ride and handling.
Key features
- 3 inches of front lift
- Tapered 2.0-inch rear block
- Powder coated steel strut extension
- Front differential drop spacers
- Sway bar spacers
- Skid plate spacers
- Tires up to 35 inches in diameter
Rear rake and tire clearance
Rear rake is the amount the rear sits higher than the front, and a small amount keeps the truck level under load. A tapered rear block gives that setting with a gentle slope rather than a flat spacer. Measure both ends on level ground after installation to confirm the number you are aiming for.
Tire clearance follows from rake. The rear lift and front strut extension set how far the tires sit from the fenders, so recheck wheel and tire combinations after the install. Rubbing often shows up first on turns and over bumps, so take a slow test drive before heavy use.
- Measure both ends on level ground
- Test steering at full lock for rubbing
- Recheck rake after loading the bed or hitch
- Look for wear on the rear block bolts
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY69-5276 |
| Front lift | 3 inches |
| Rear block | Tapered 2.0 inches |
| Rear rake | About one-half inch on most TRD and SR5 trucks |
| Tire size | Up to 35 inches |
| Drive type | 2WD and 4WD |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2007 to 2021 Tundra models in the 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, TRD Pro and Trail versions.
Confirm the 2021 fit before ordering. Check your vehicle’s year, model and trim before ordering.
Installation notes
The 3.0-inch front strut extension and 2.0-inch rear block set the rake together, so check the rear height against the front after installation. The kit needs no cutting or strut spring pre-loading, and the instructions cover the hardware. Check the rear rake once the lift is in.
What’s included

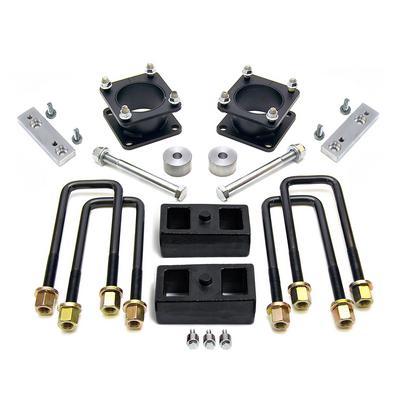

The kit includes a powder coated steel strut extension, front differential drop spacers, sway bar spacers, skid plate spacers and a 2-inch rear lift block.
