Overview
The ReadyLift 69-5212 is a 3-inch SST suspension lift kit for six-lug Toyota Tacoma trucks. It lifts the front 2.75 to 3.0 inches and includes a tapered 2.0-inch rear lift block for TRD, SR5, Rock Warrior and Prerunner trucks. It covers 2005 to 2017 Tacoma and Prerunner models in 2WD and 4WD, with the fit running to 2021 across several versions.
The kit is intended to allow wheel and tire combinations up to 33 inches in diameter while keeping the stock ride and handling characteristics. ReadyLift recommends a 32.5-inch tire diameter. A 33-inch tire will need minor trimming of the inner fender well. The kit also includes sway bar drop brackets.
Key features
- 2.75 to 3.0 inches of front lift
- Tapered 2.0-inch rear lift block
- Intermediate Smart Strut Technology system
- Sway bar drop brackets
- Tires up to 33 inches in diameter
- 32.5-inch tire diameter recommended
Tire size and fender room
Tire diameter is the number that drives most of the fitment questions on a lifted Tacoma. A taller tire changes final drive ratio, speedometer accuracy and brake clearance, and it puts more demand on the axles and steering. Choosing a size that sits near the recommended diameter keeps the stock behavior closer to what the truck was built to do.
Fender trimming is a common step once larger tires go on, and it should be done carefully so the edges do not crack or rust. Wheel offset affects how the tire lines up with the fender, so a change in offset can solve a rub without any trimming. Tacomas used off road tend to collect mud in the wheel wells, so clearance should be checked after heavy trips.
- Compare speedometer readings after a tire change
- Seal any trimmed fender edges
- Check clearance at full steering lock
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY69-5212 |
| Front lift | 2.75 to 3.0 inches |
| Rear block | Tapered 2.0 inches |
| Tire size | Up to 33 inches; 32.5 inches recommended |
| Drive type | 2WD and 4WD |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2005 to 2021 Toyota Tacoma models in the Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Sport and Trail versions.
It covers 2005 to 2017 Tacoma and Prerunner models in full. Some 2011 to 2014 Tacoma trucks may have a limited ability to correct caster after a leveling kit is fitted, so confirm alignment options before ordering.
Installation notes
Installing 33-inch tires requires minor trimming of the inner fender well. Because some Tacoma applications have a caster alignment limit, check alignment after installation and before fitting larger tires. The sway bar drop brackets are part of the installation.

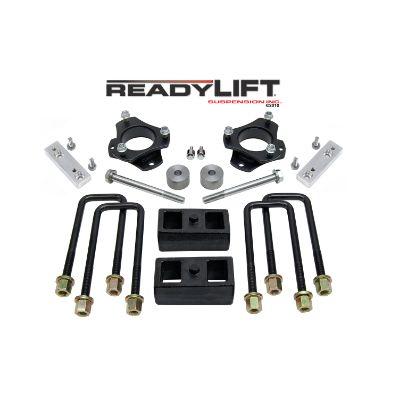

What’s included
The kit includes the intermediate Smart Strut Technology front components, the tapered 2.0-inch rear lift block and the sway bar drop brackets.
