Overview

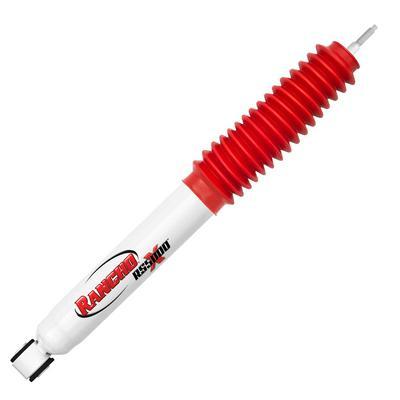

The Rancho RS55041 is a rear RS5000X twin tube shock for the 2000 through 2006 Toyota Tundra. It is made for a Tundra at stock height, with no lift or drop.

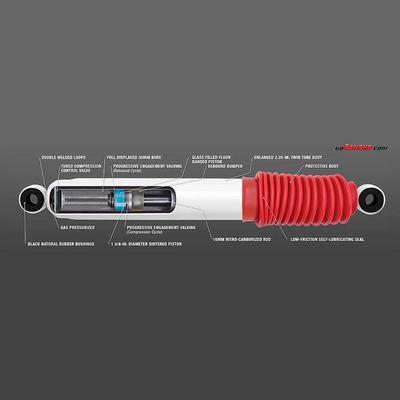

The shock measures 13.25 inches compressed and 21.41 inches extended, with 8.16 inches of travel. It has an enlarged 2-1/4-inch twin tube body, a 16 mm nitro-carburized rod and a full-displaced 35 mm bore, plus a rebound bumper and a low-friction seal.
Its cross-tuned valving is designed to improve handling on and off road. It combines progressive engagement valving with a tuned compression control valve.
Key features
- Rear twin tube shock at stock height
- Progressive engagement valving
- Tuned compression control valve
- Enlarged 2-1/4-inch twin tube body
- Gas pressurized shock
- Full-displaced 35 mm bore
- Rebound bumper and black natural rubber bushings
Signs the rear shock is worn
A Tundra carries most of its weight over the rear axle, and that load works the rear shocks every time the bed is filled or the truck is driven over broken pavement. Over time the damping fades, and the rear end starts to float, sway on turns or bounce after a single bump.
Wear is easy to miss because it builds slowly. Look at the shock body for oil, check the rubber boot for splits, and push down on each rear corner to see whether the body rebounds more than once. Uneven tire wear across the rear tread can also point to a shock that has stopped controlling the axle.
If the rear springs are sagging or cracked, a new shock will not last as long. Check spring height and the seats at both ends, and address any loose mounting hardware at the same time.
- Oil on the shock body or split boots
- Bouncing that continues after a bump
- Uneven rear tire wear
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS55041 |
| Series | RS5000X |
| Position | Rear |
| Shock type | Twin tube |
| Compressed length | 13.25 inches |
| Extended length | 21.41 inches |
| Travel | 8.16 inches |
| Lift or drop | None |
Vehicle fitment
It is a direct fit for the 2000 through 2006 Toyota Tundra in the Base, Limited and SR5 versions.
The list does not include the Tacoma or Tundra model years after 2006. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The shock is a single rear unit with its protective boot.
